Home >> Chrysler >> 2004 >> Pacifica V6-3.5L VIN 4 >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

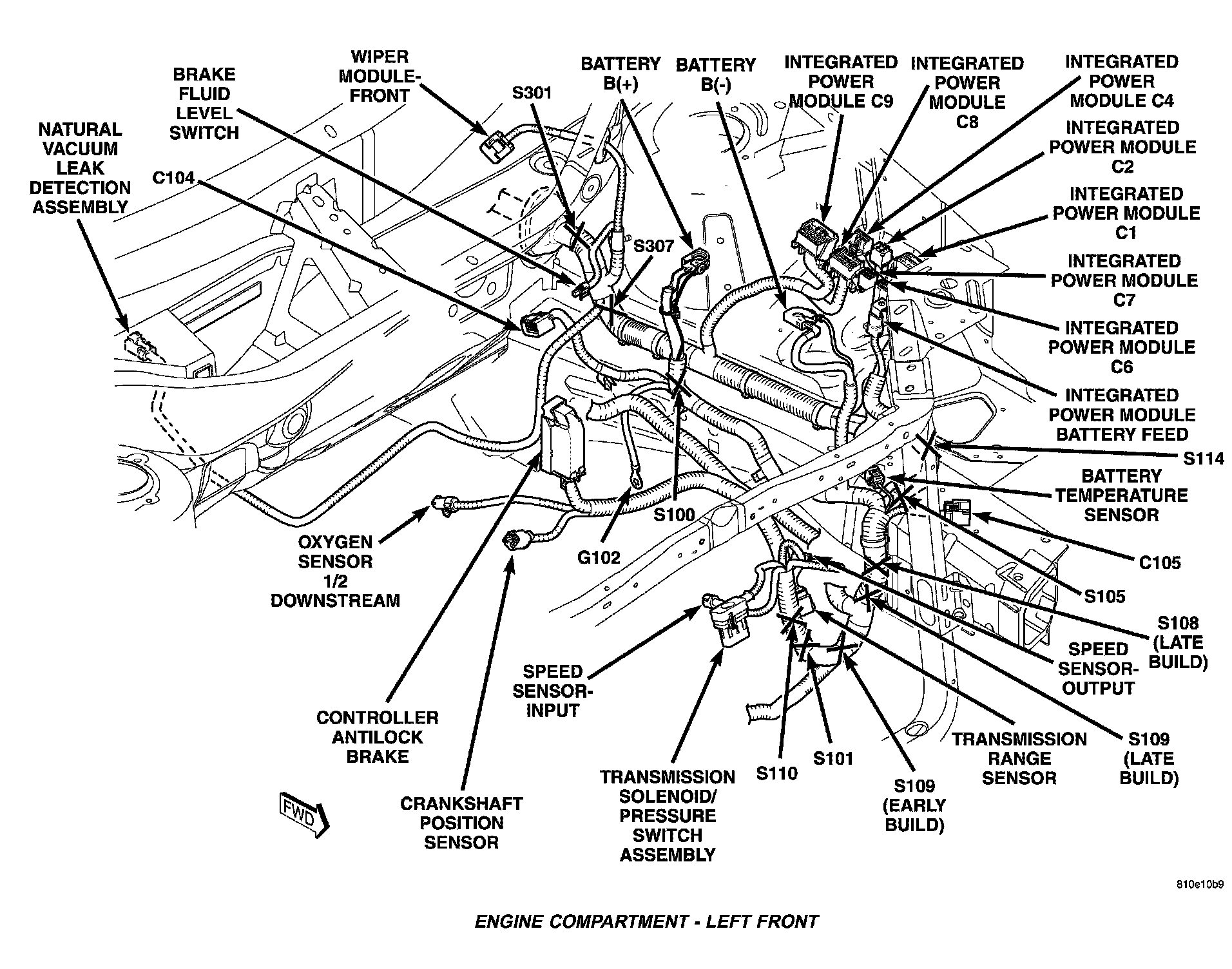

Engine Compartment - Left Front:



Engine Compartment - Left Front and Rear:

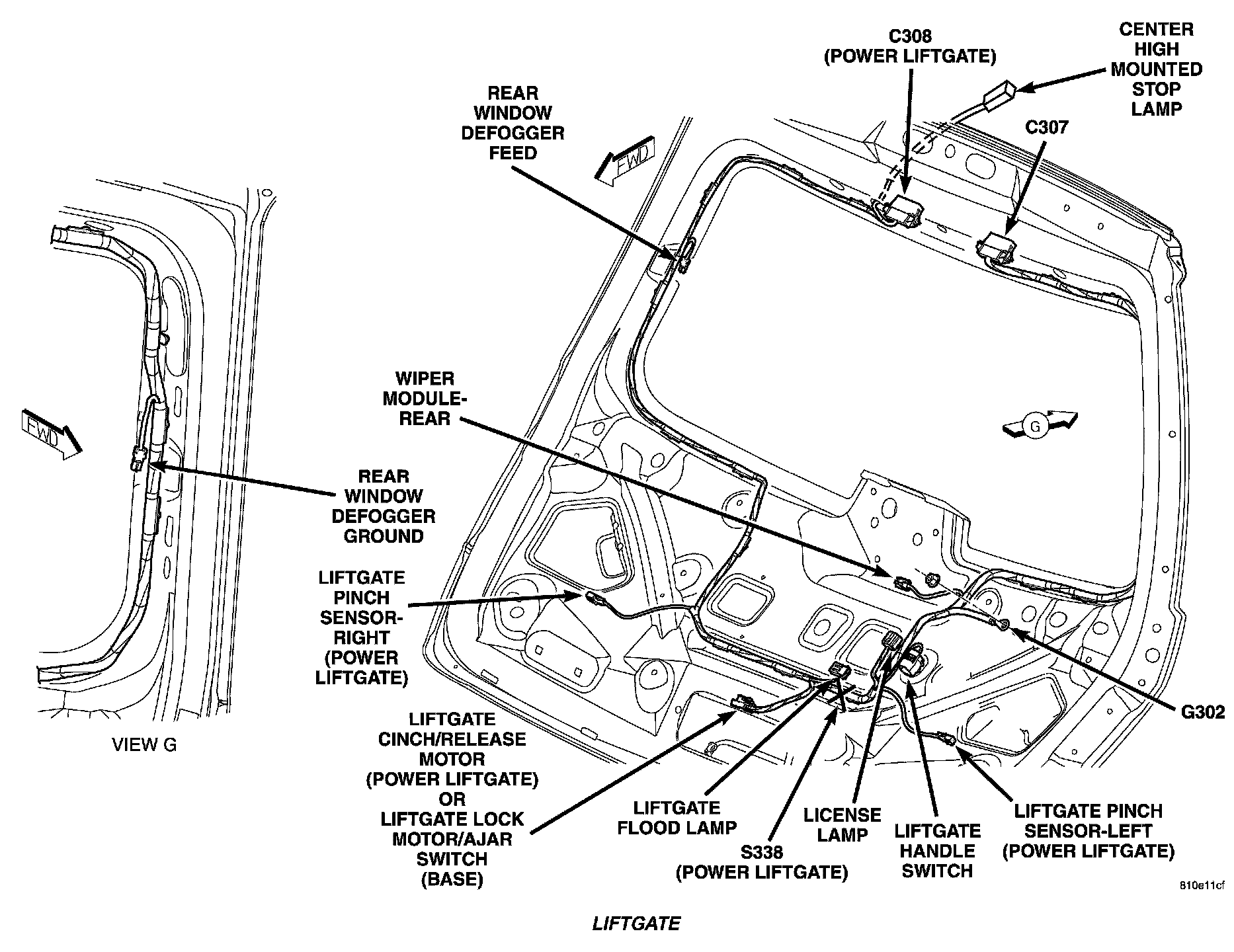

Liftgate:
