Chrysler
>>
2004
>>
Pacifica V6-3.5L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
Body Control Module

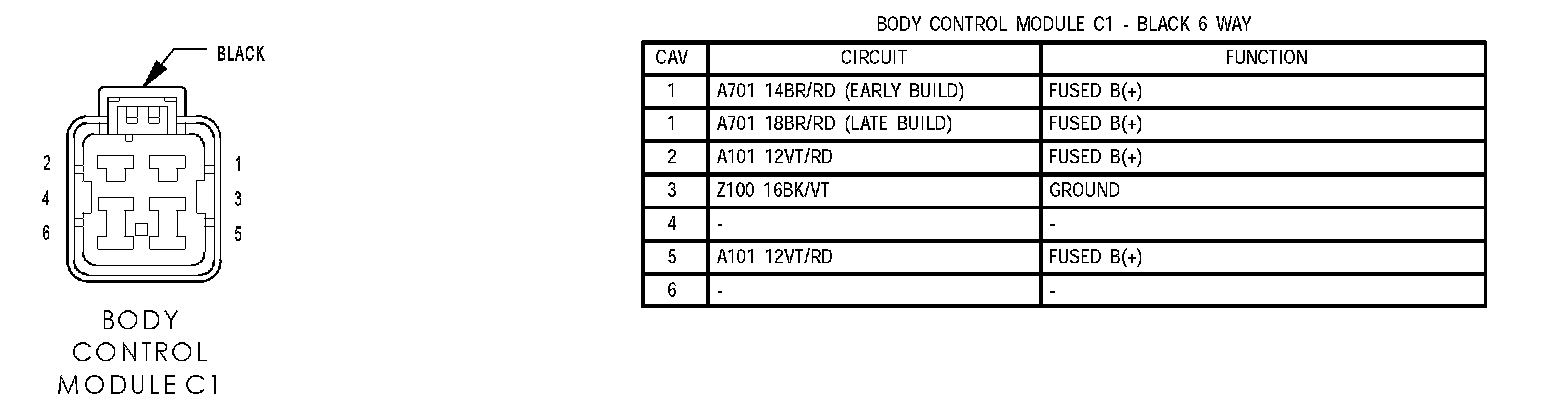

Body Control Module C1:

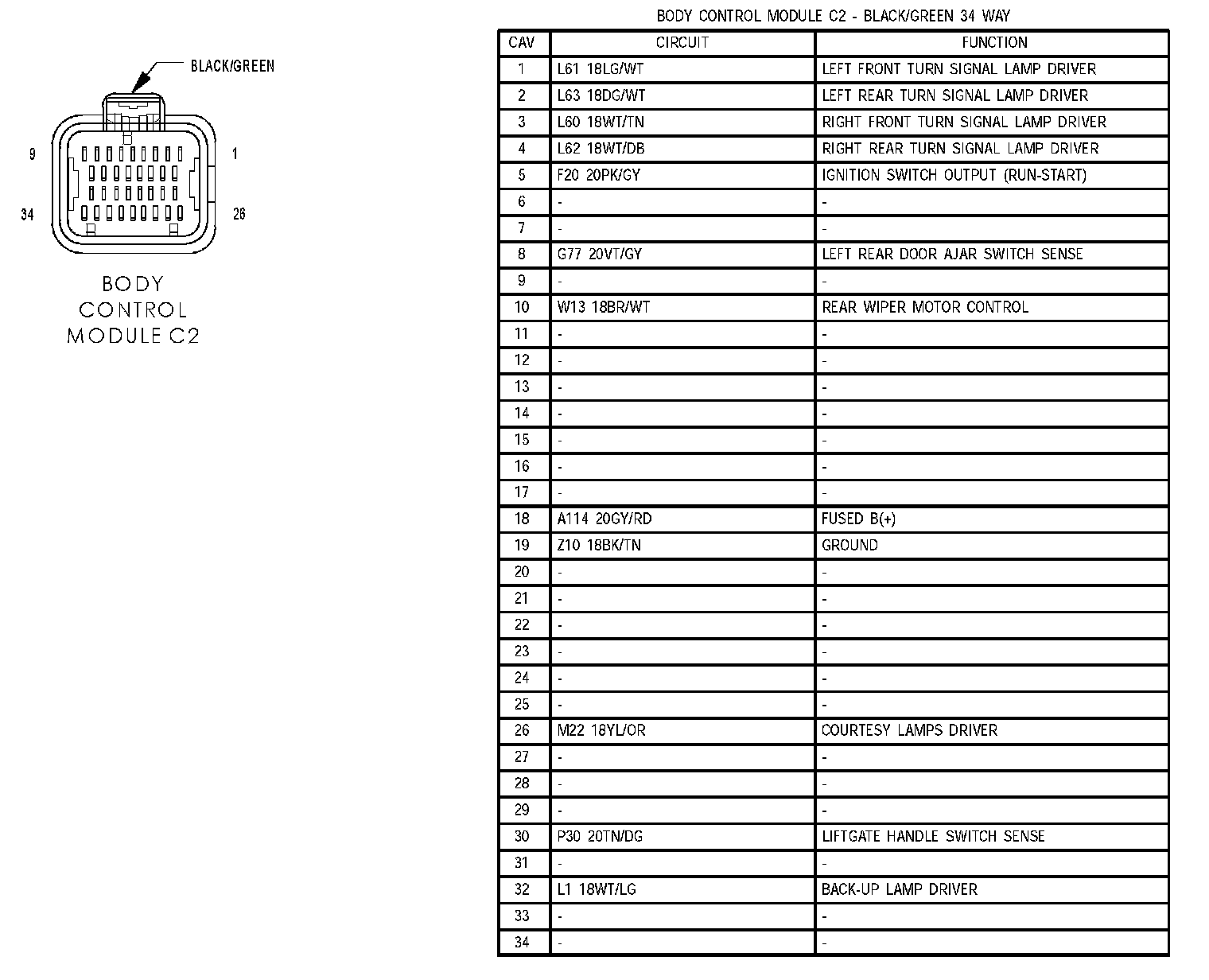

Body Control Module C2:

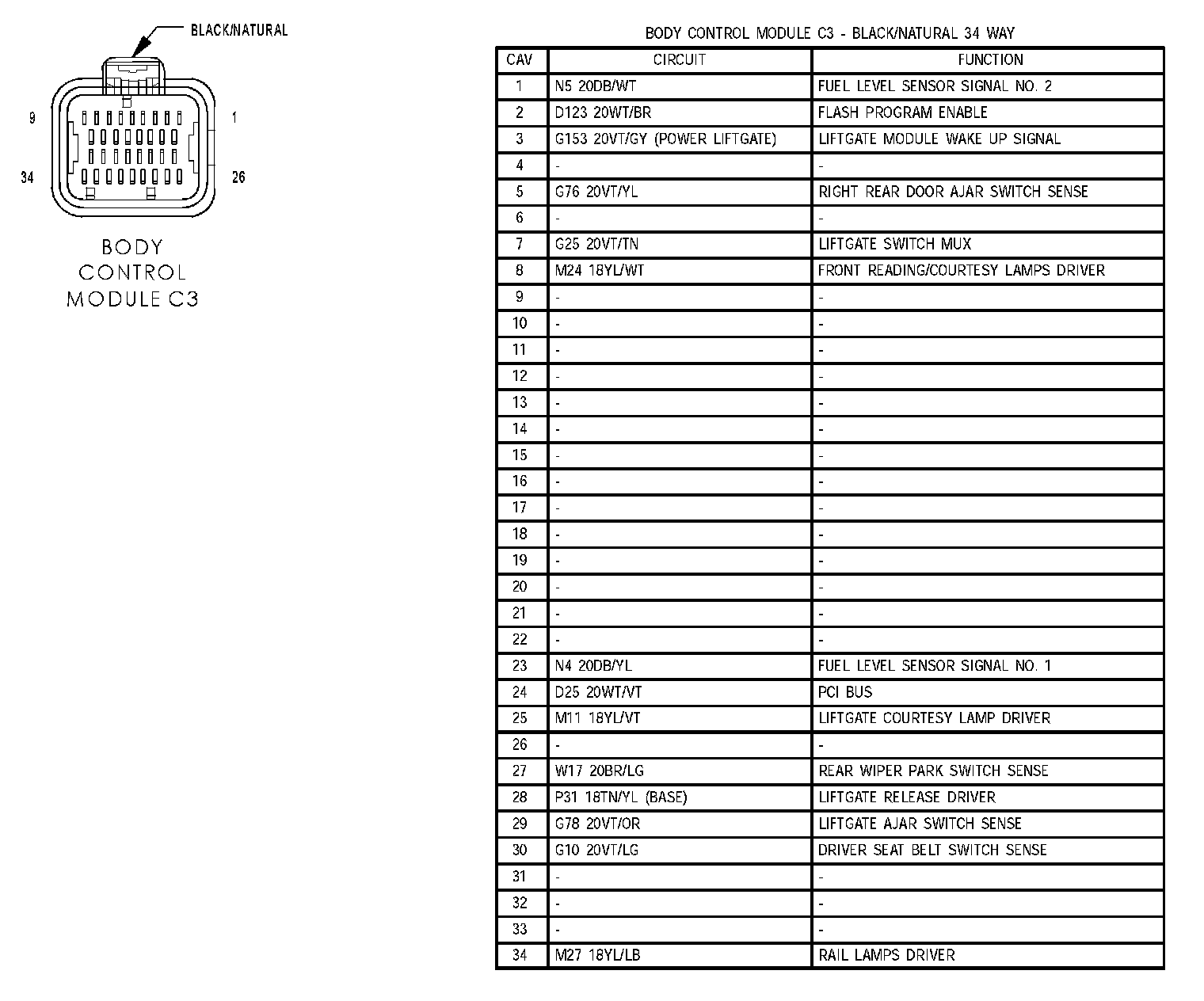

Body Control Module C3:

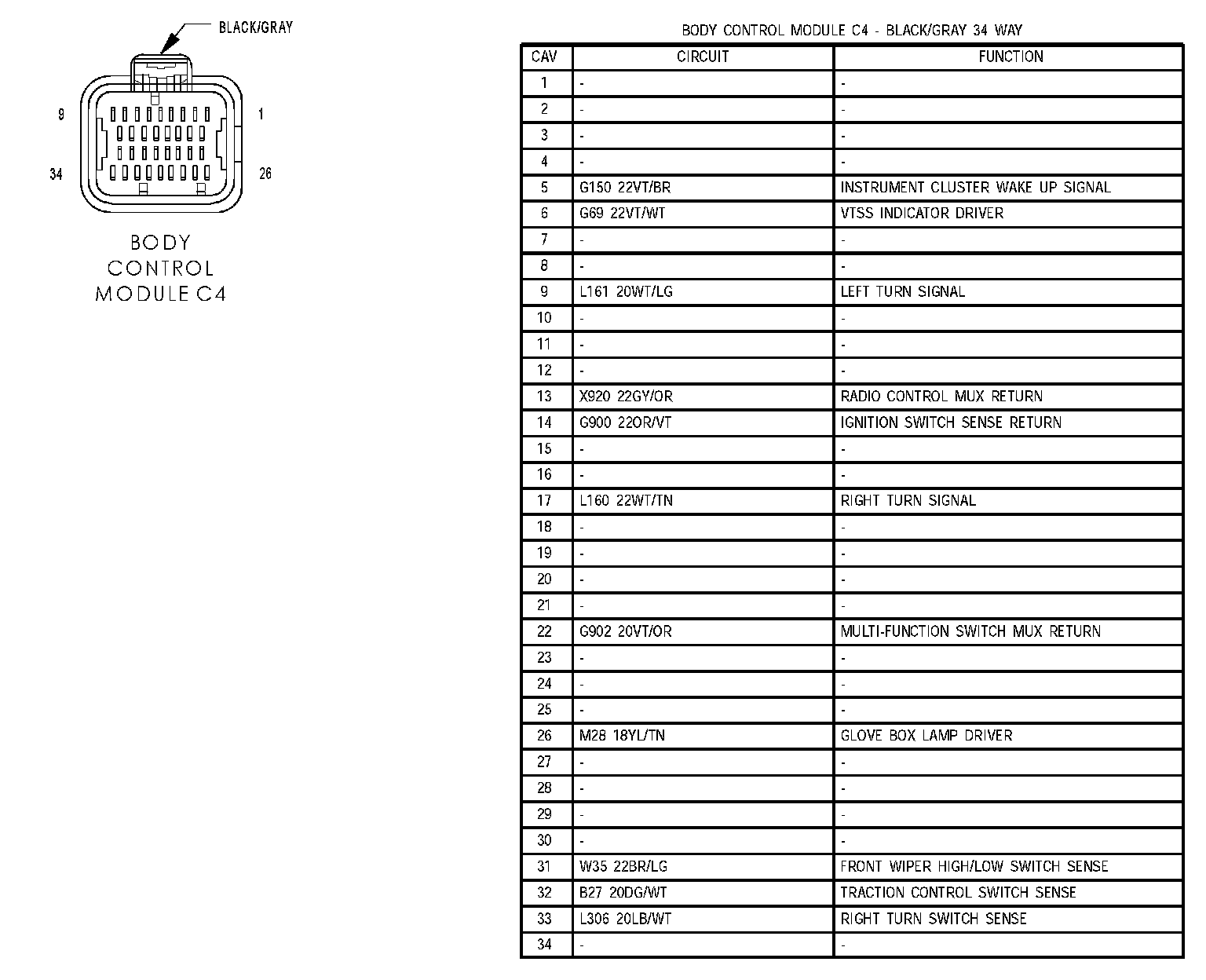

Body Control Module C4:

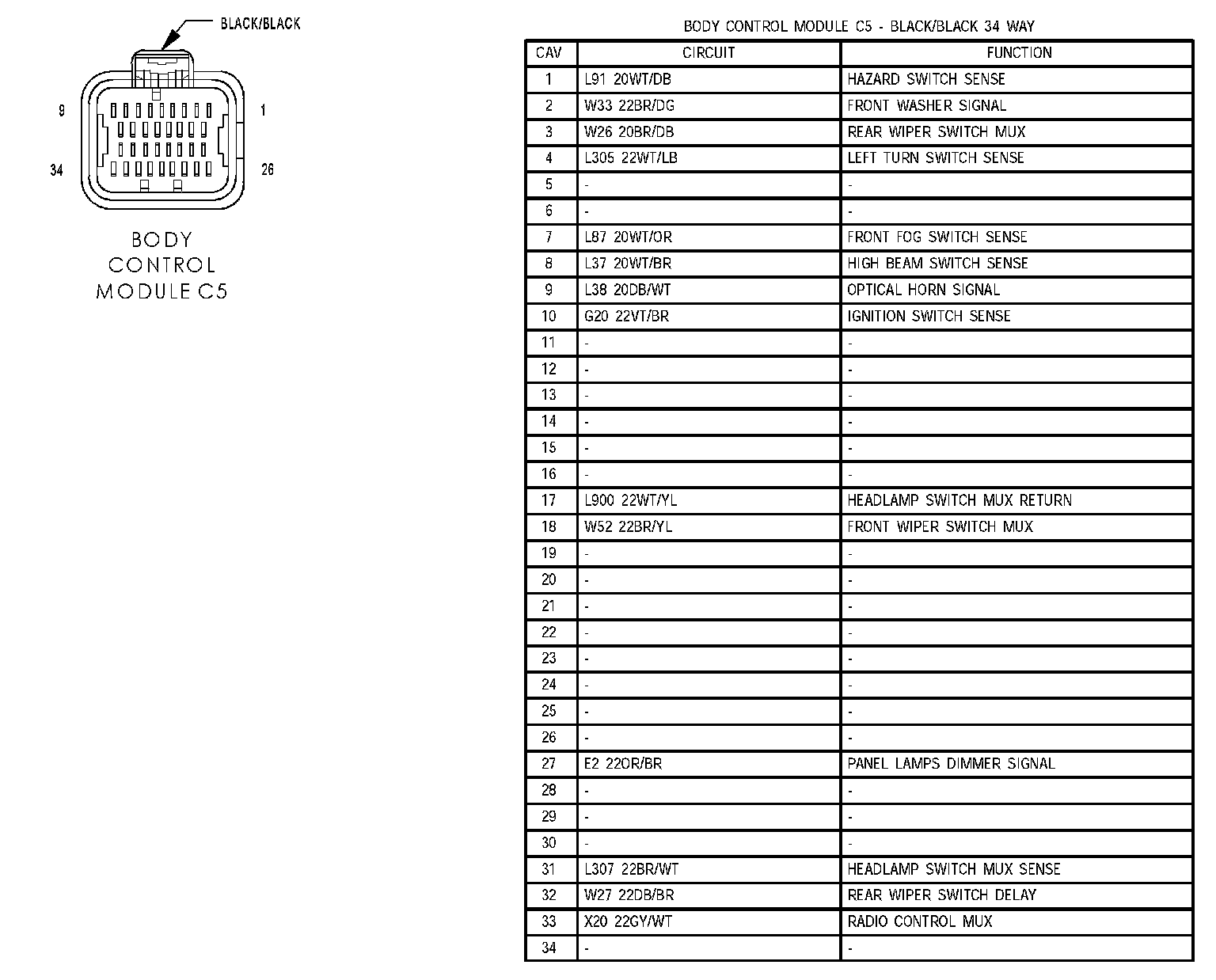

Body Control Module C5:
