Home >> Chrysler >> 2004 >> Pacifica V6-3.5L VIN 4 >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Module >> Diagrams

Memory Positioning Module: Diagrams

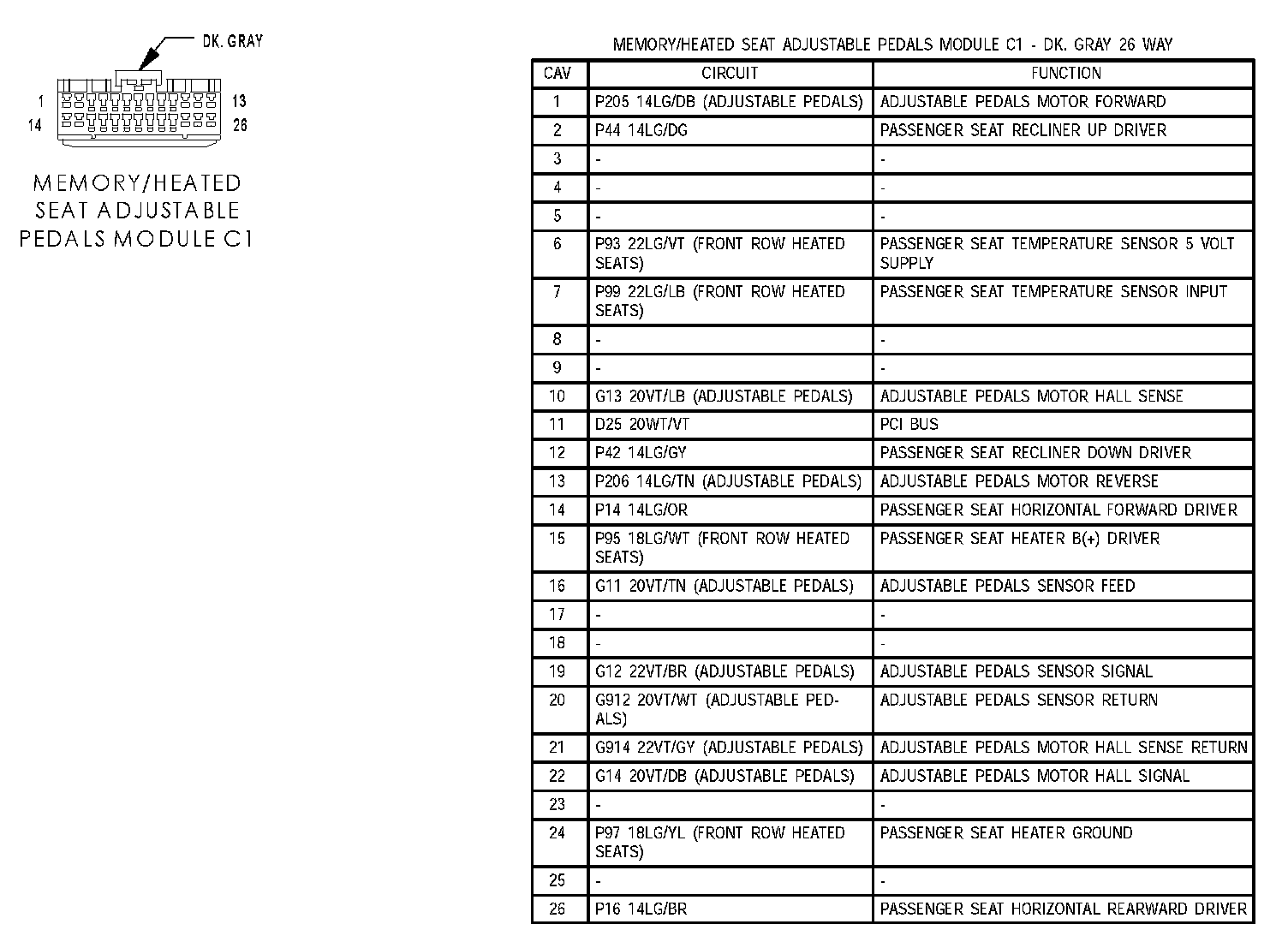

Memory/Heated Seat Adjustable Pedals Module C1:

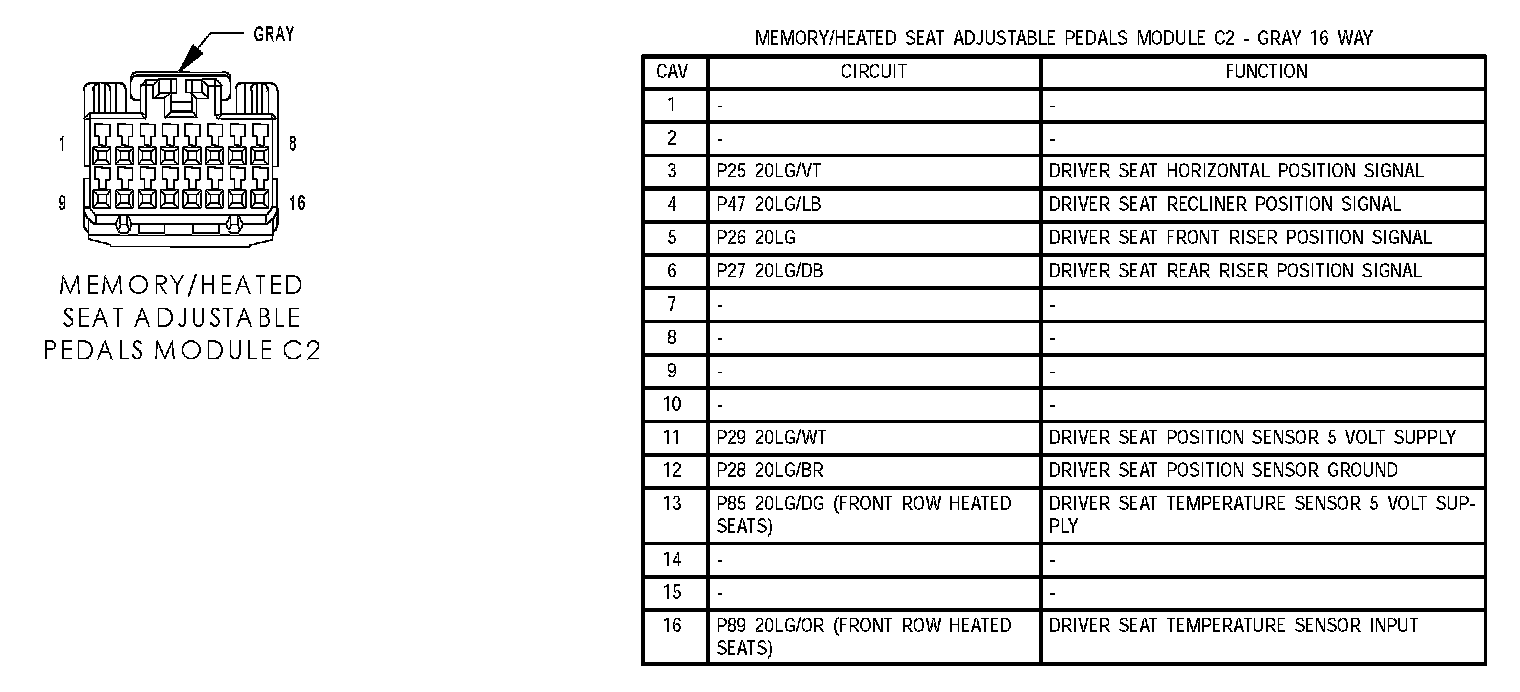

Memory/Heated Seat Adjustable Pedals Module C2:

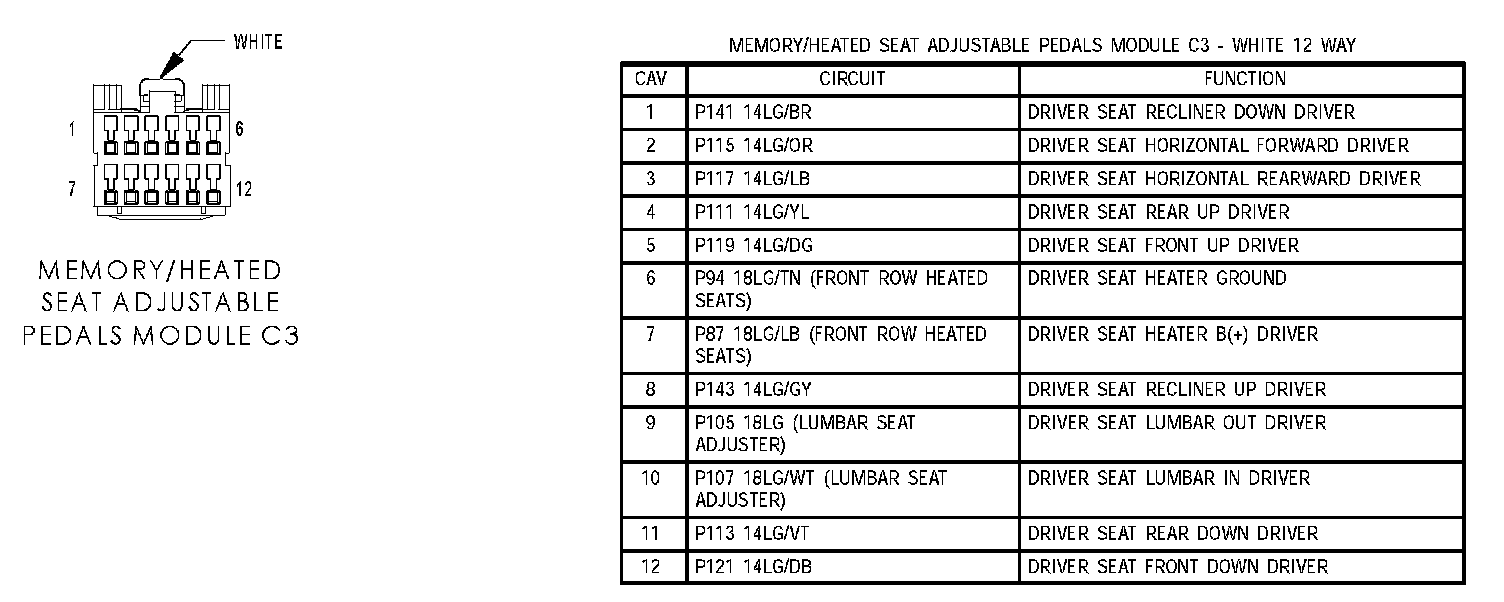

Memory/Heated Seat Adjustable Pedals Module C3:

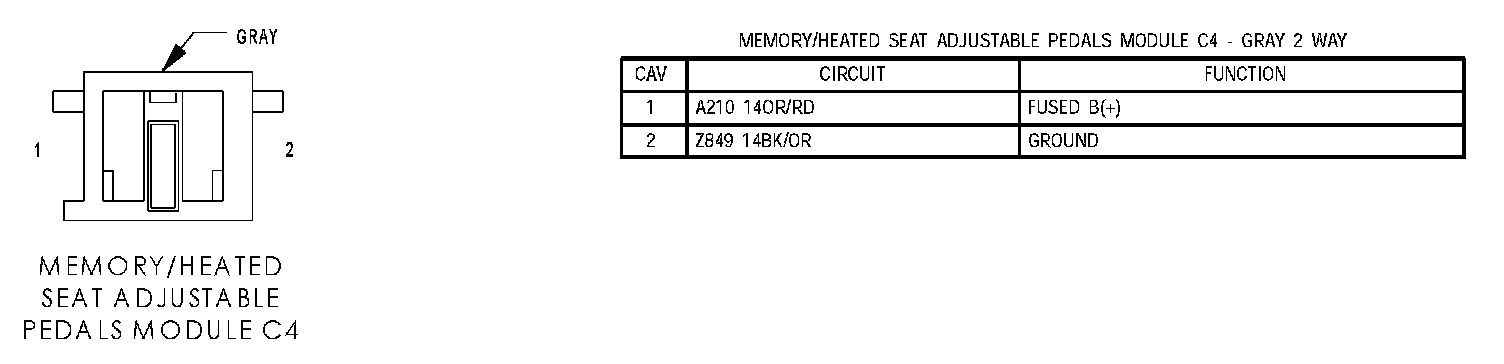

Memory/Heated Seat Adjustable Pedals Module C4:
