Home >> Chrysler >> 2004 >> Pacifica V6-3.5L VIN 4 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Locations

Keyless Entry Module: Locations

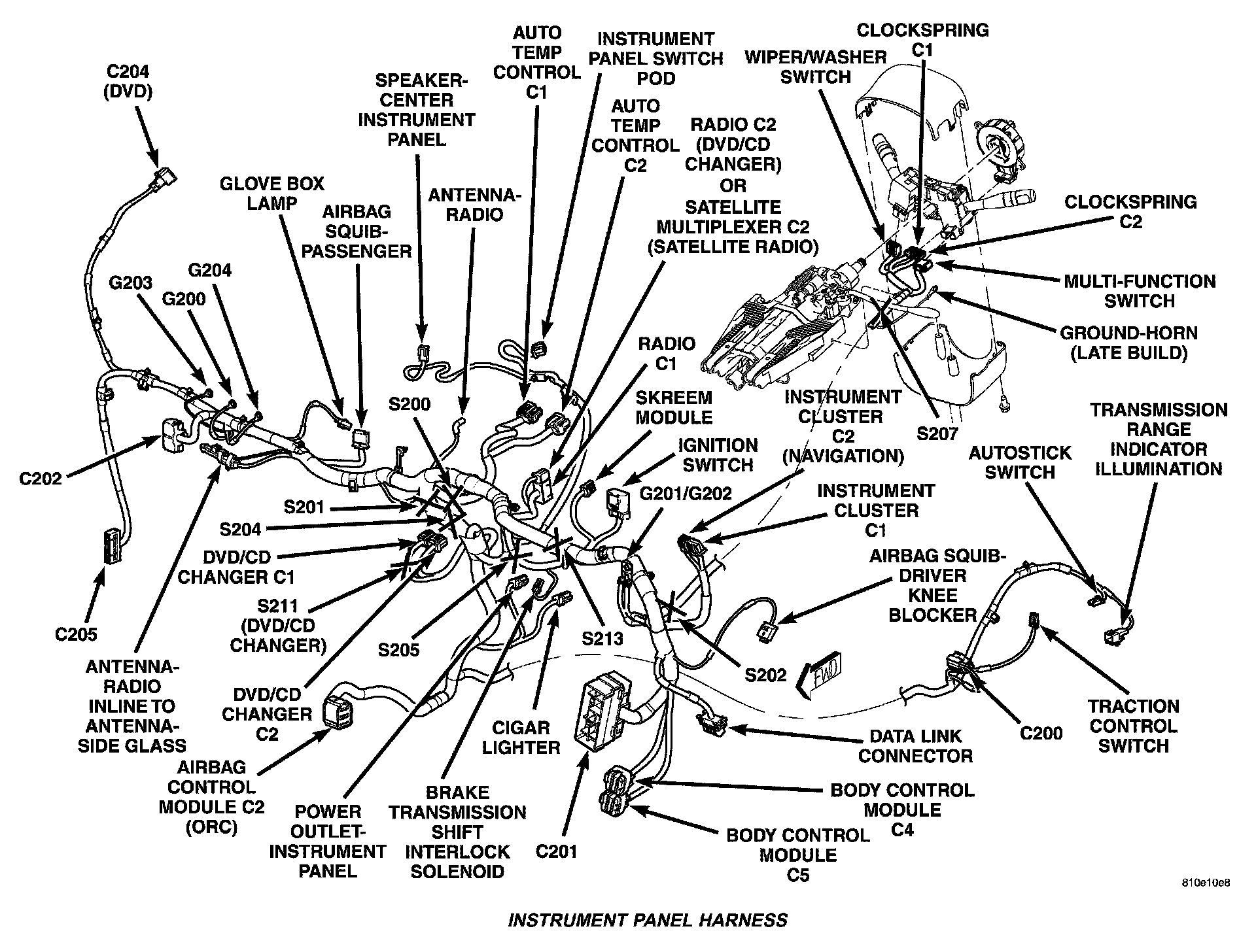

Instrument Panel Harness:

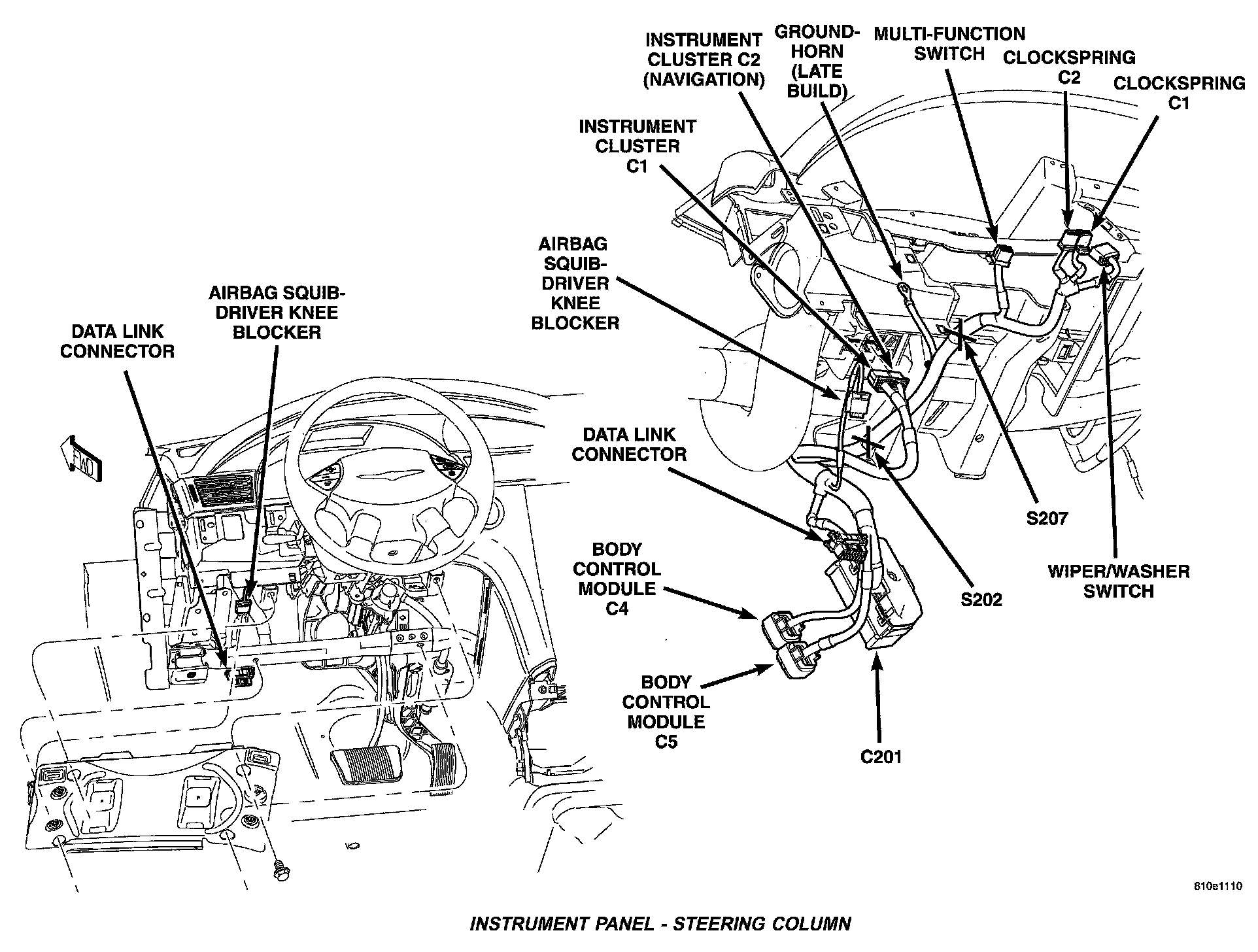

Instrument Panel - Steering Column:
