Home >> Chrysler >> 2004 >> PT Cruiser L4-2.4L VIN B >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Body Control Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Compass/Mini-Trip Computer >> Compass/Temp Module Will Not Calibrate

Compass/Temp Module Will Not Calibrate

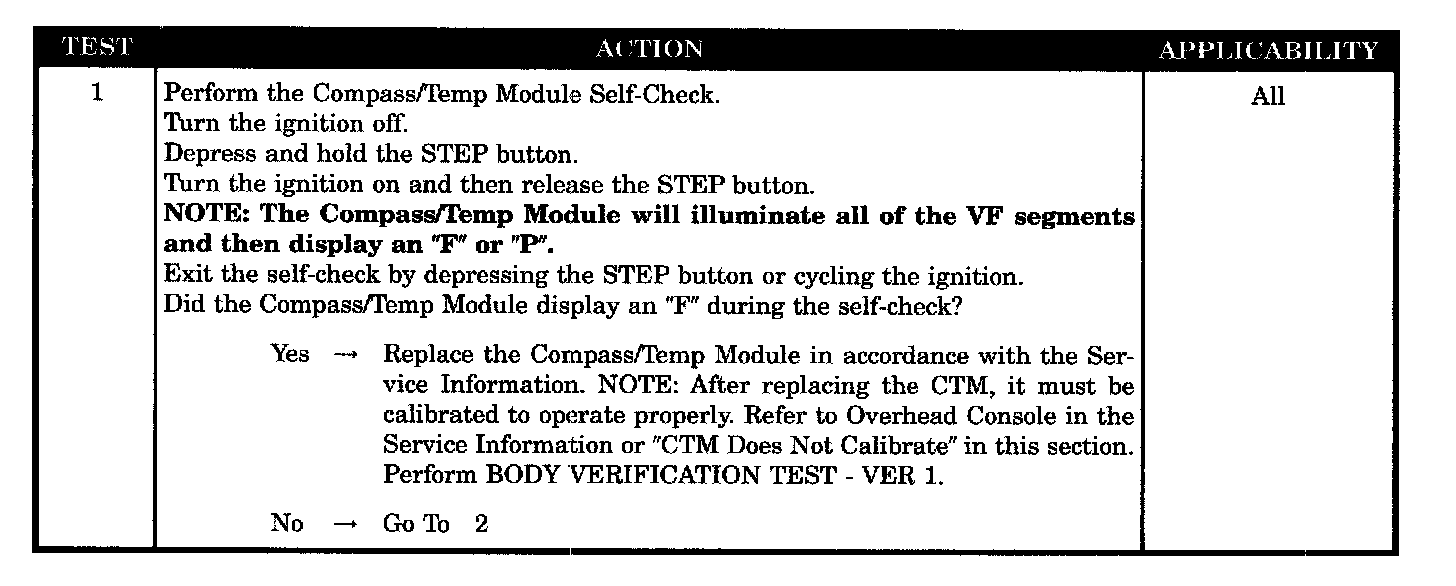

Test 1:

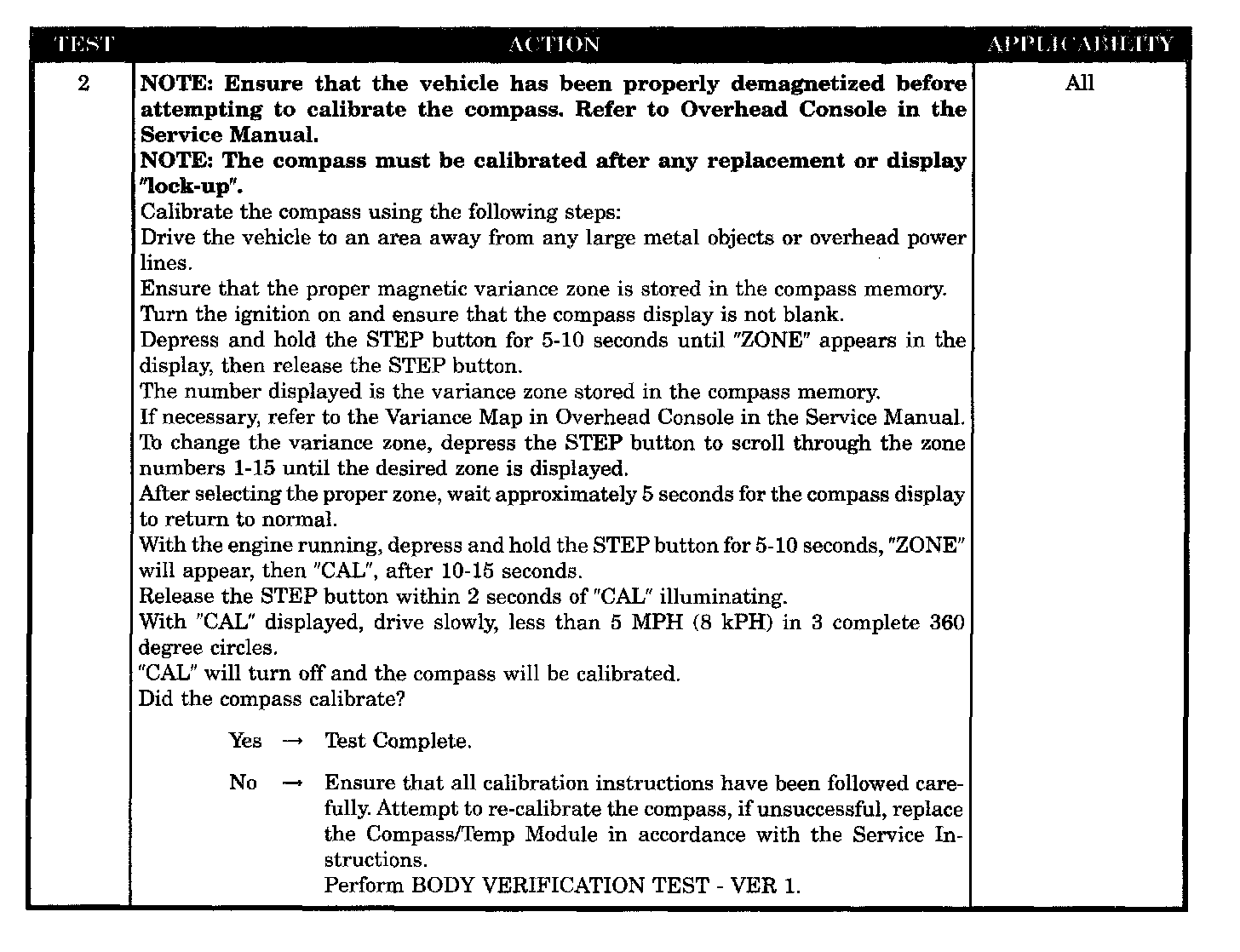

Test 2:






SYMPTOM
COMPASS/TEMP MODULE DOES NOT CALIBRATE

POSSIBLE CAUSES
- Calibration procedure
- Compass/Temperature module
