Component Tests and General Diagnostics

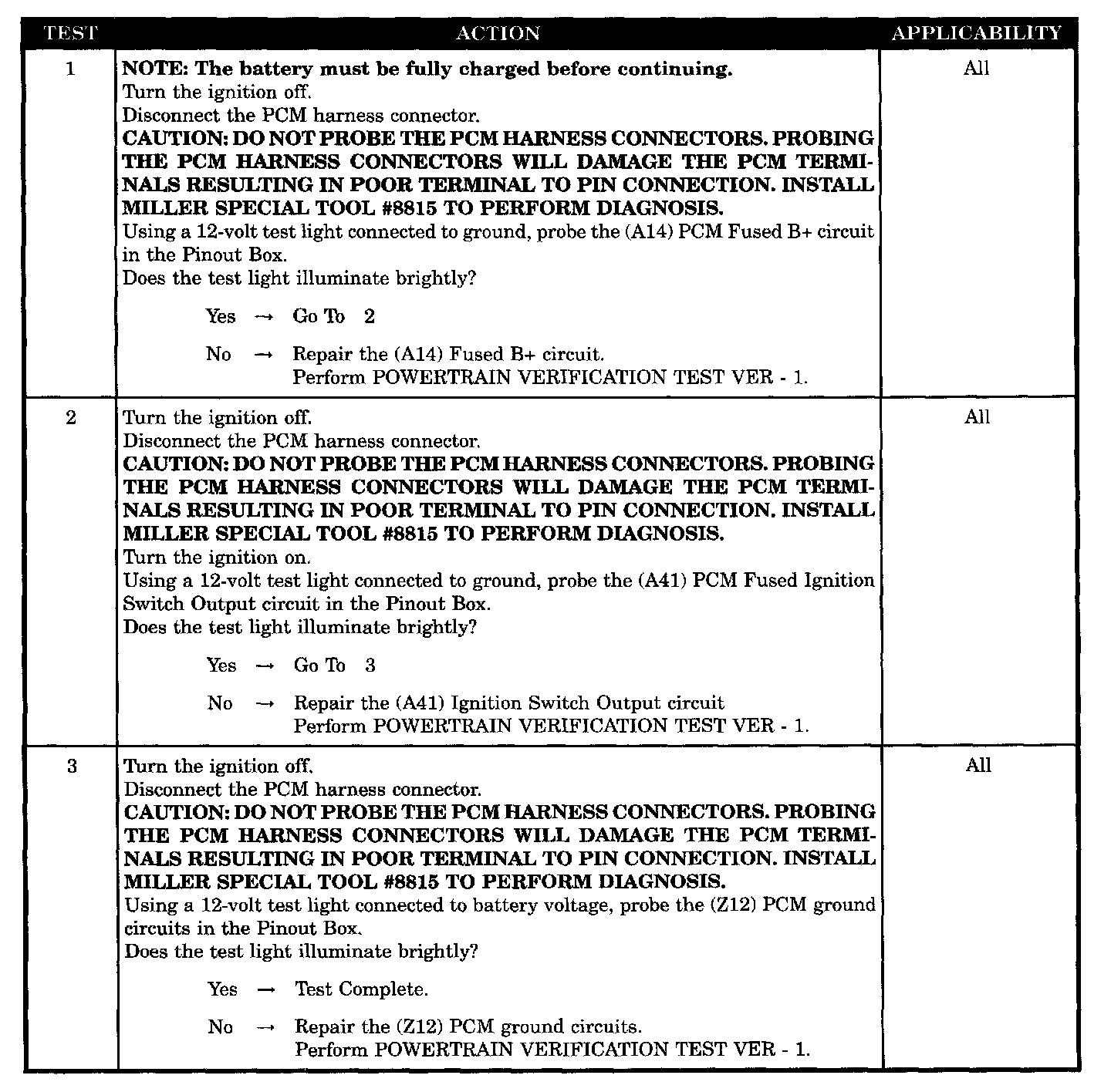

Test 1 - 3:






SYMPTOM
CHECKING PCM POWER AND GROUND CIRCUITS

POSSIBLE CAUSES
- (A14)PCM fused B+ circuit
- (A41)PCM fused ignition switch output circuit
- (Z12)PCM ground circuits
