Alignment: Specifications

Curb Height Specifications:

CURB HEIGHT SPECIFICATIONS

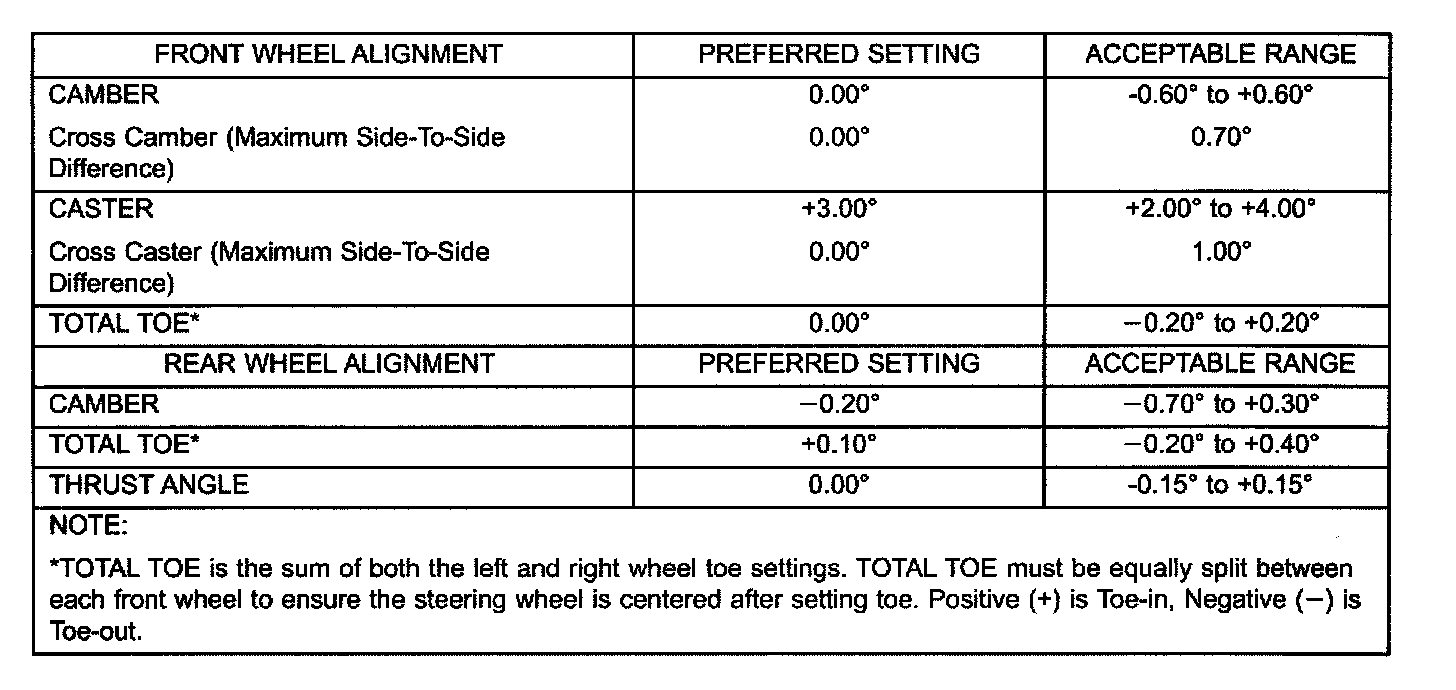

Wheel Alignment Specifications:

WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at curb height. Refer to CURB HEIGHT MEASUREMENT.
