Chrysler
>>
2004
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Global Positioning System
>>
Global Positioning System Module
Global Positioning System Module

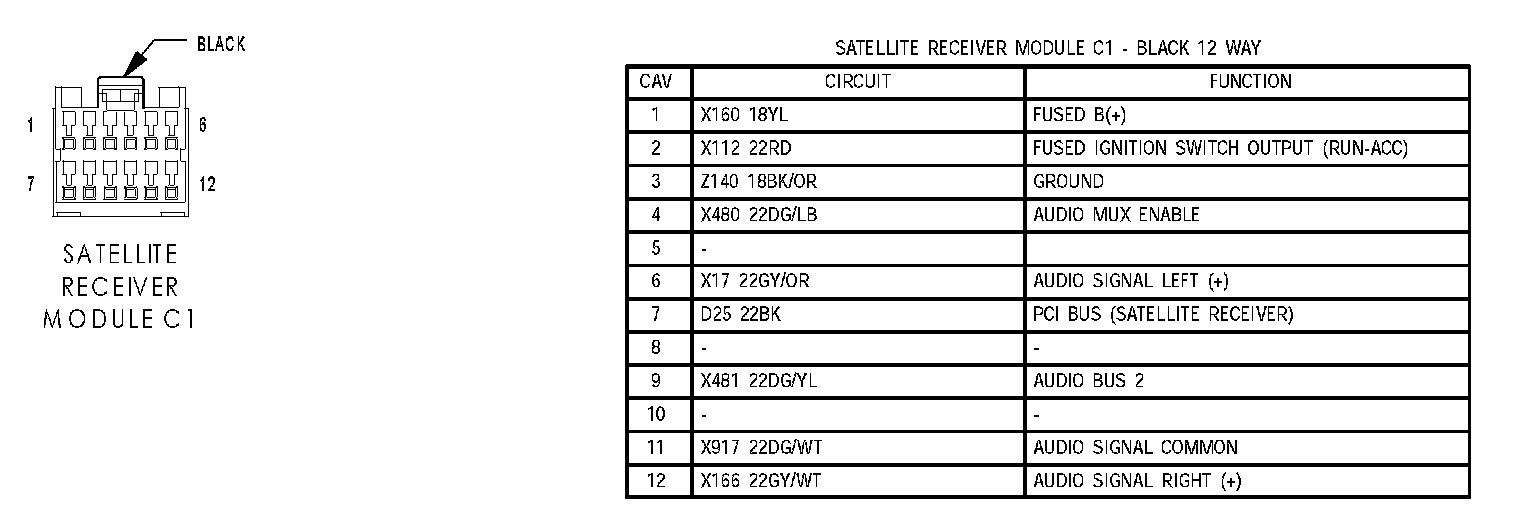

Satellite Receiver Module C1:
