Chrysler
>>
2004
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Body Control Module
>>
Locations
>>
Connector Locations
Connector Locations

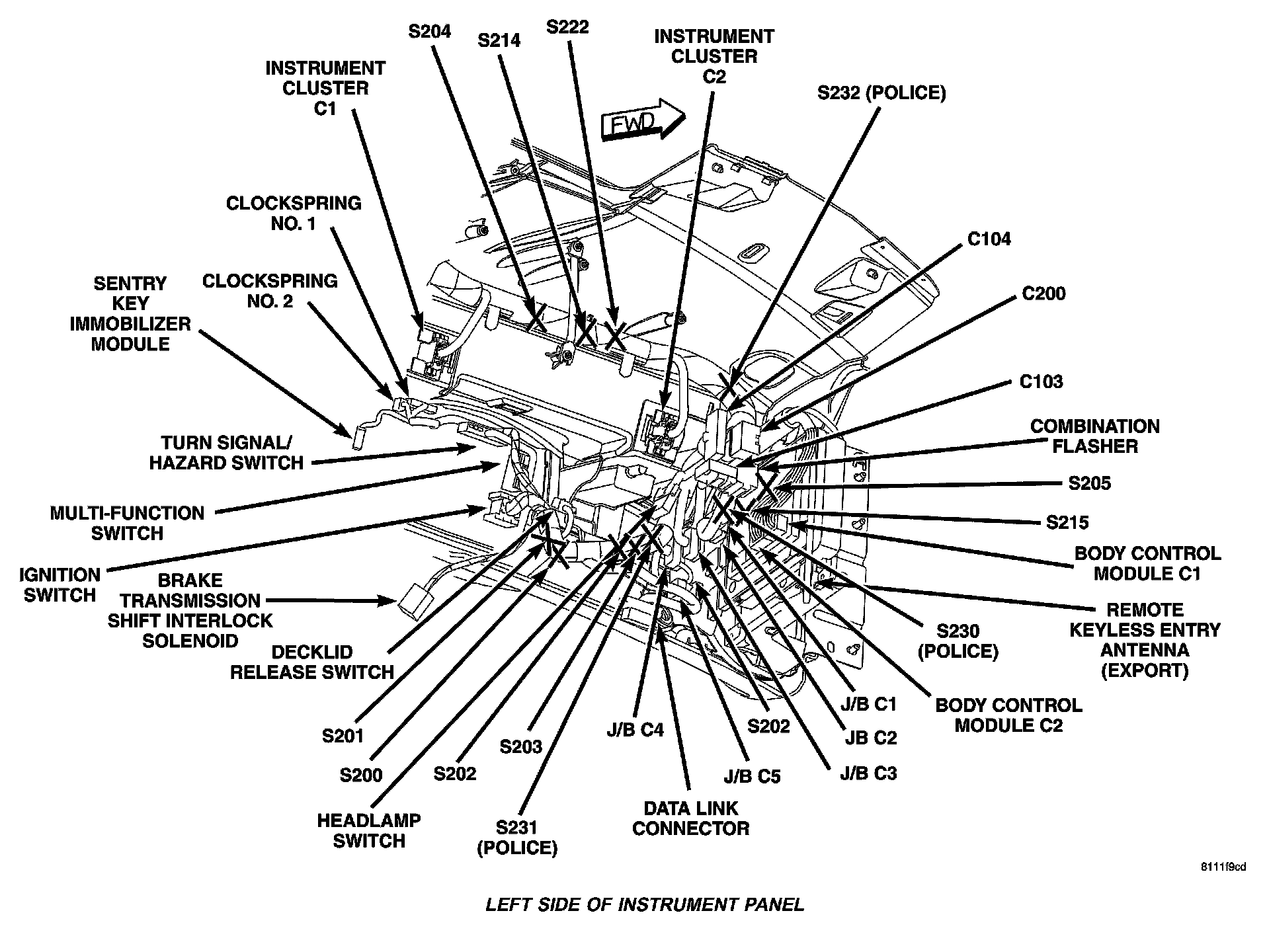

Left Side Of Instrument Panel:
