Chrysler
>>
2004
>>
Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module

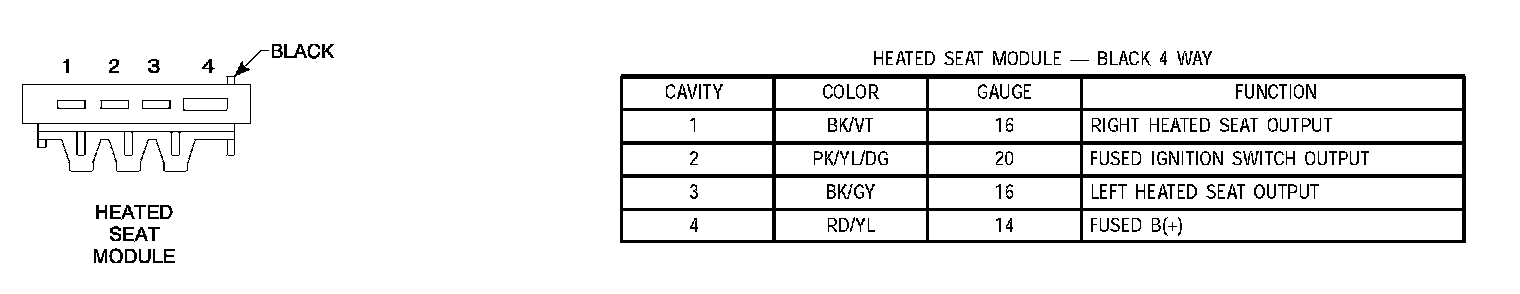

Seat Temperature Control Module
Heated Seat Module:
