Home >> Chrysler >> 2004 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Integrated Control Relay Module

Integrated Control Relay Module

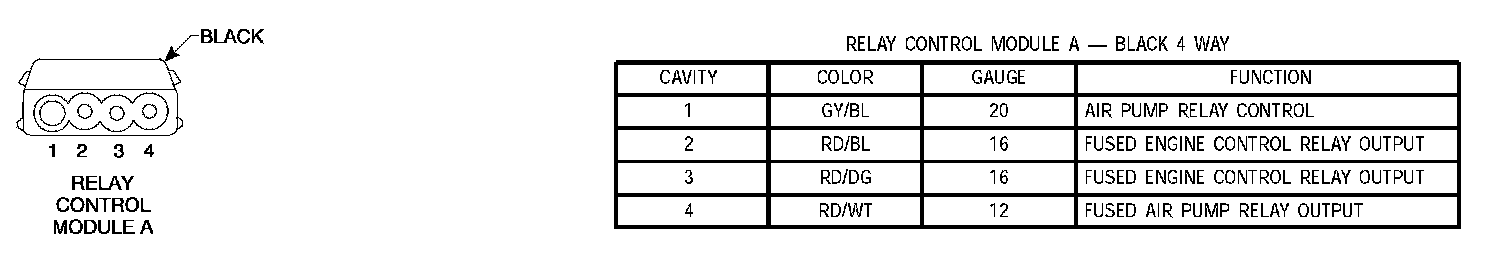

Relay Control Module A:

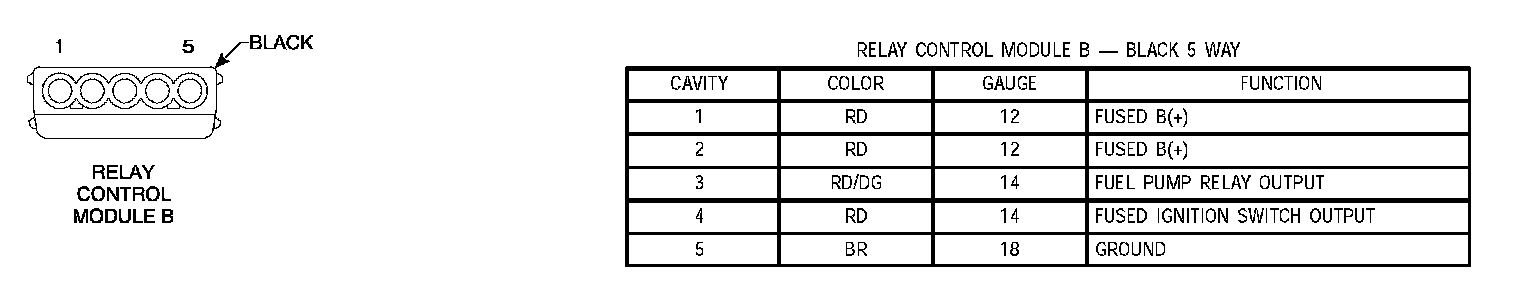

Relay Control Module B:

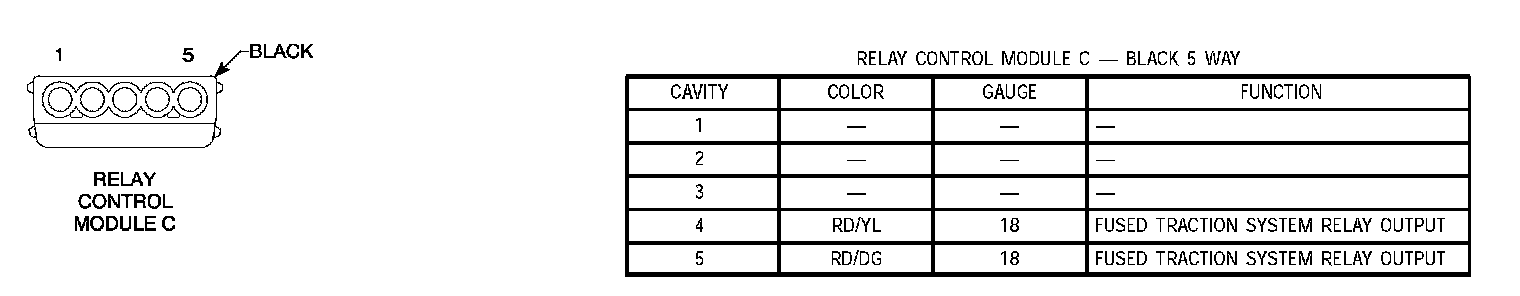

Relay Control Module C:

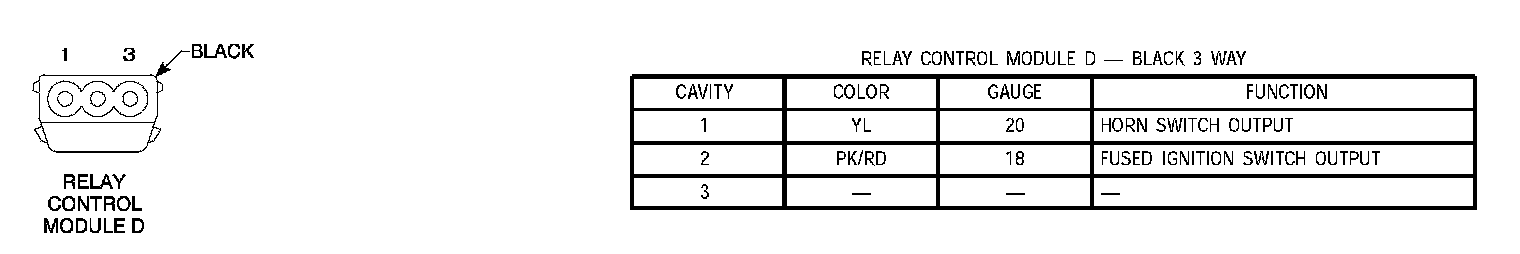

Relay Control Module D:

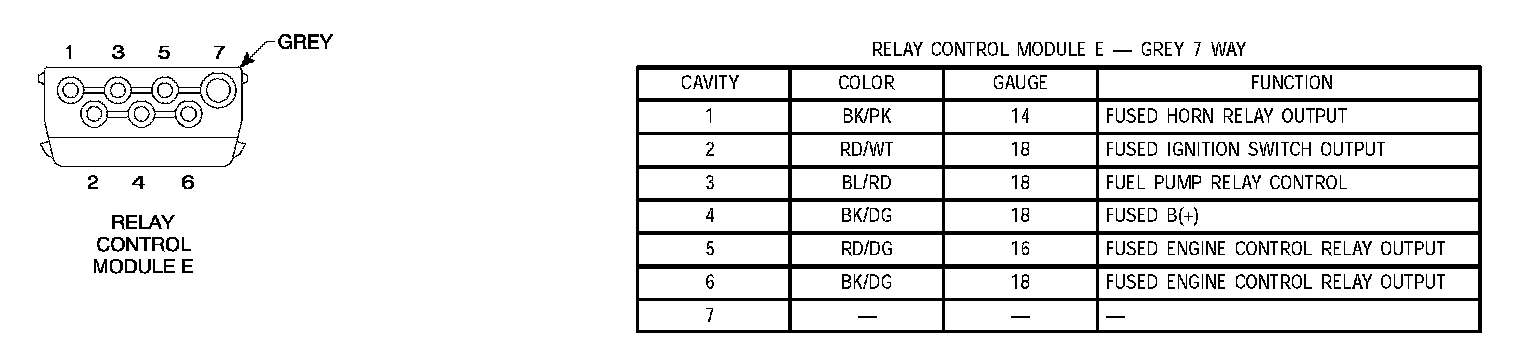

Relay Control Module E:
