Home >> Chrysler >> 2004 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

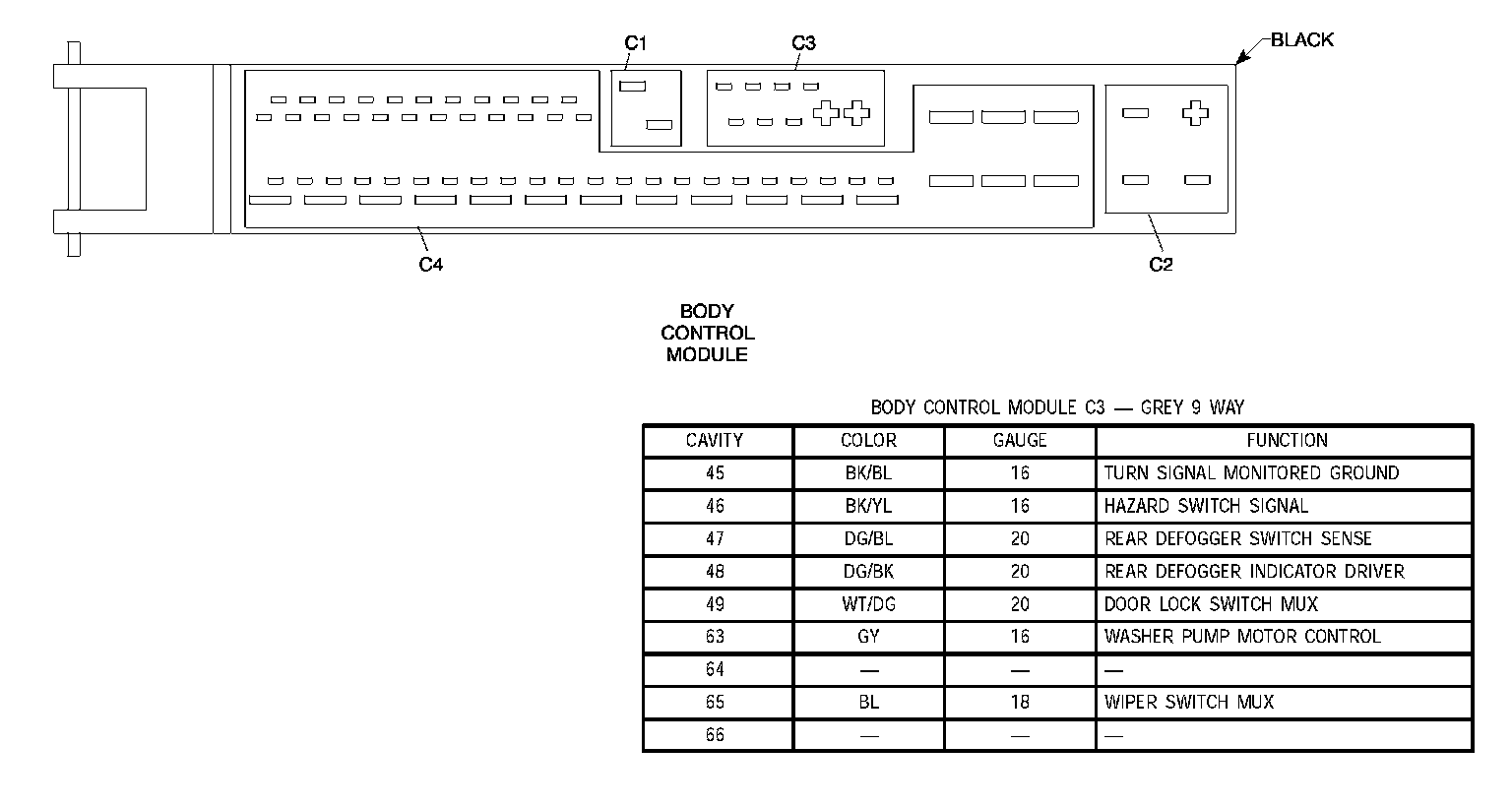

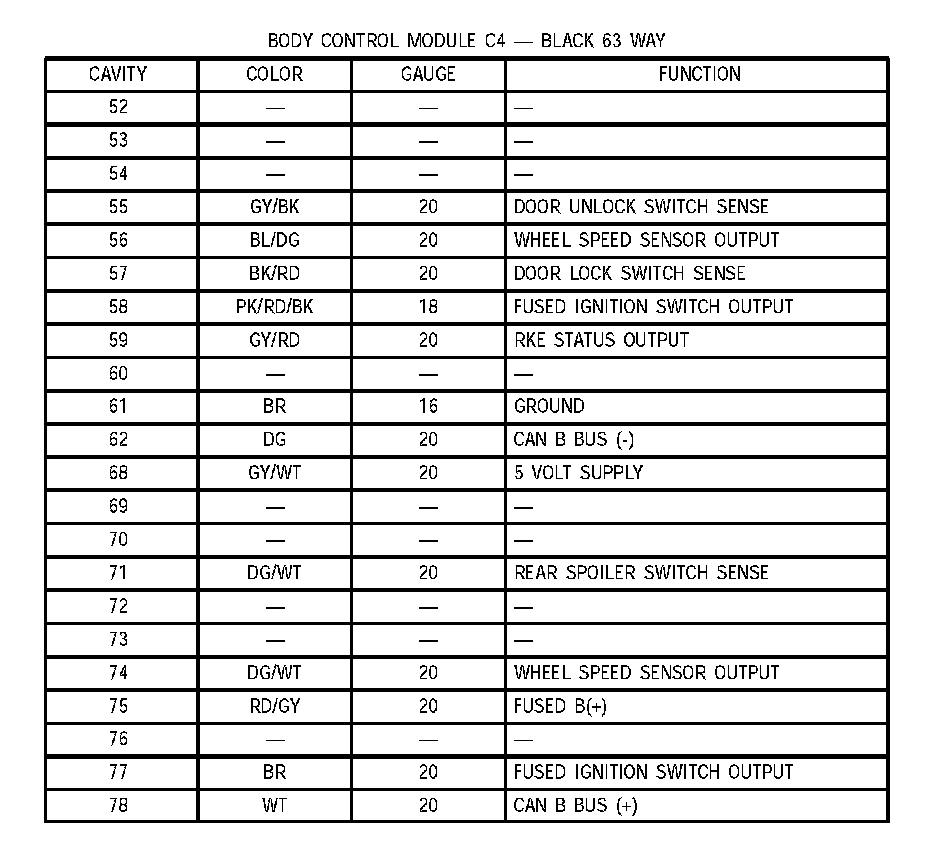

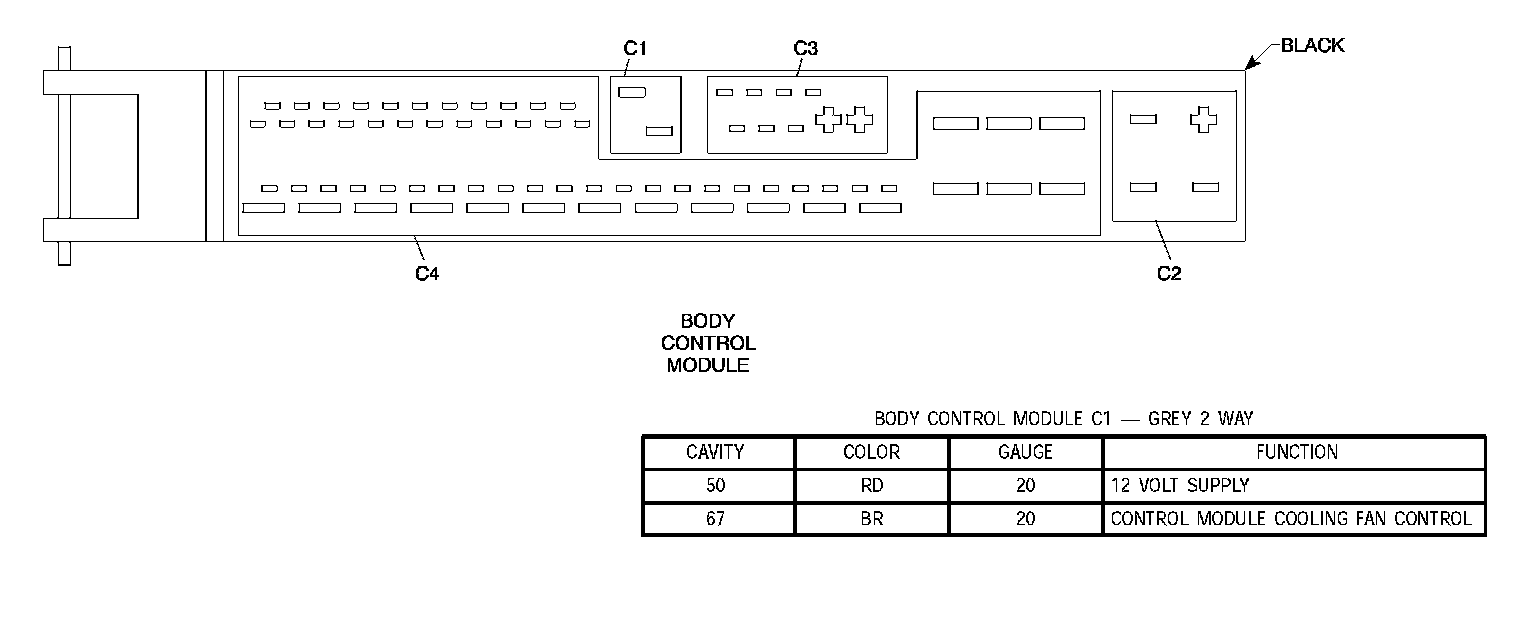

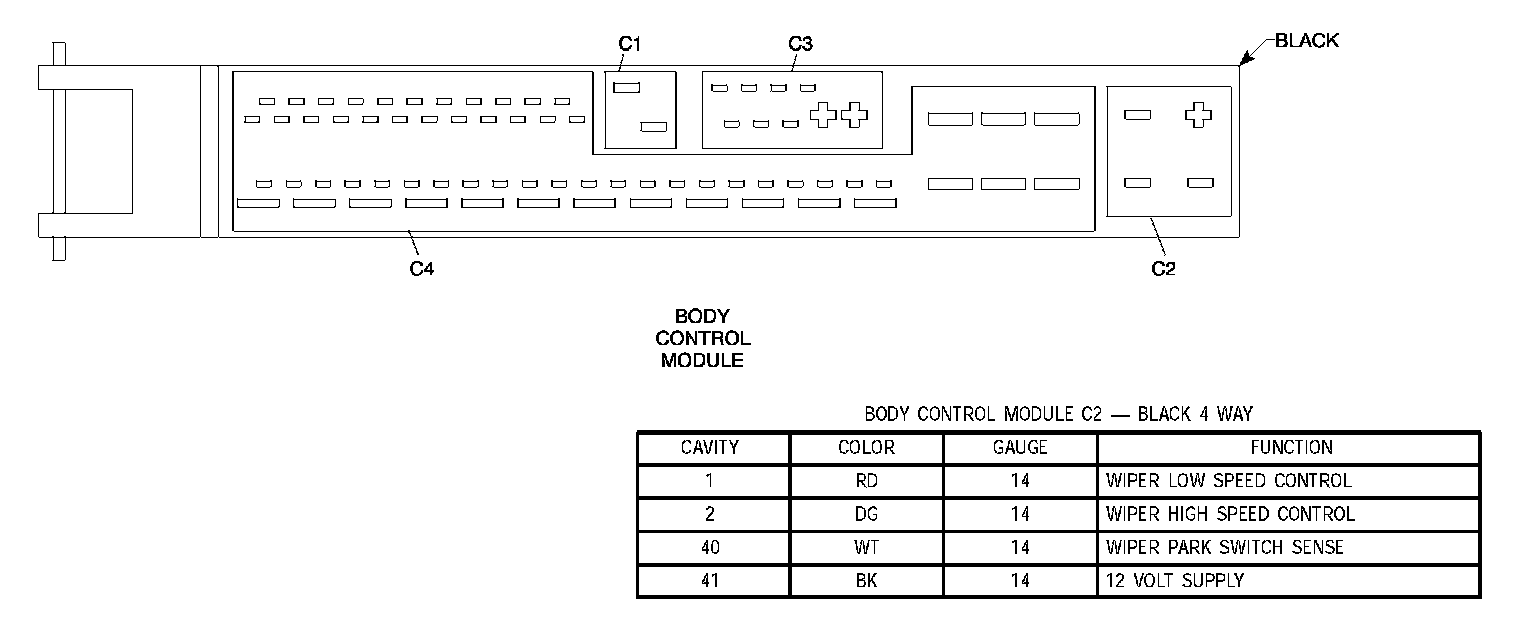

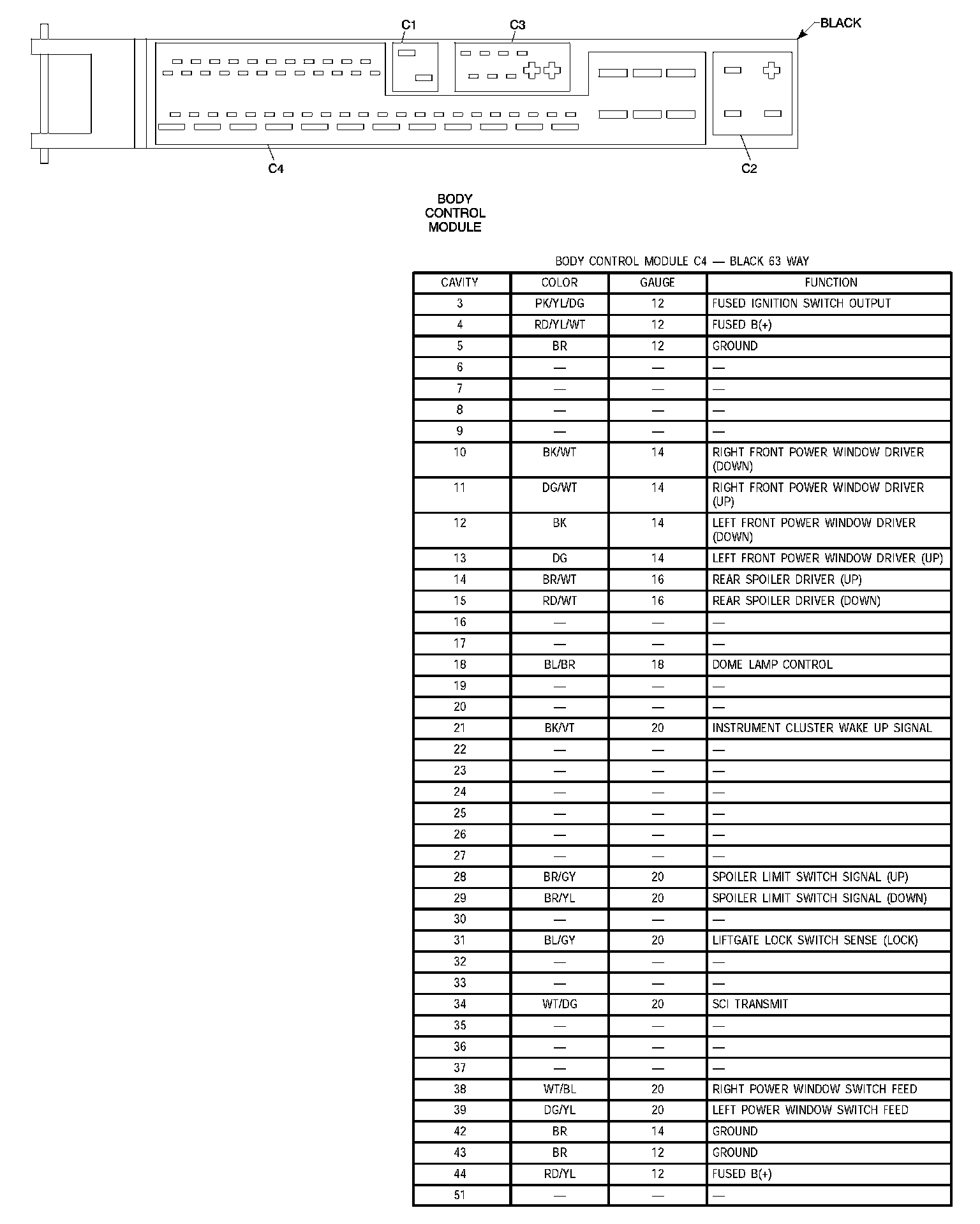

Body Control Module

Body Control Module:





Body Control Module:
