Home >> Chrysler >> 2004 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

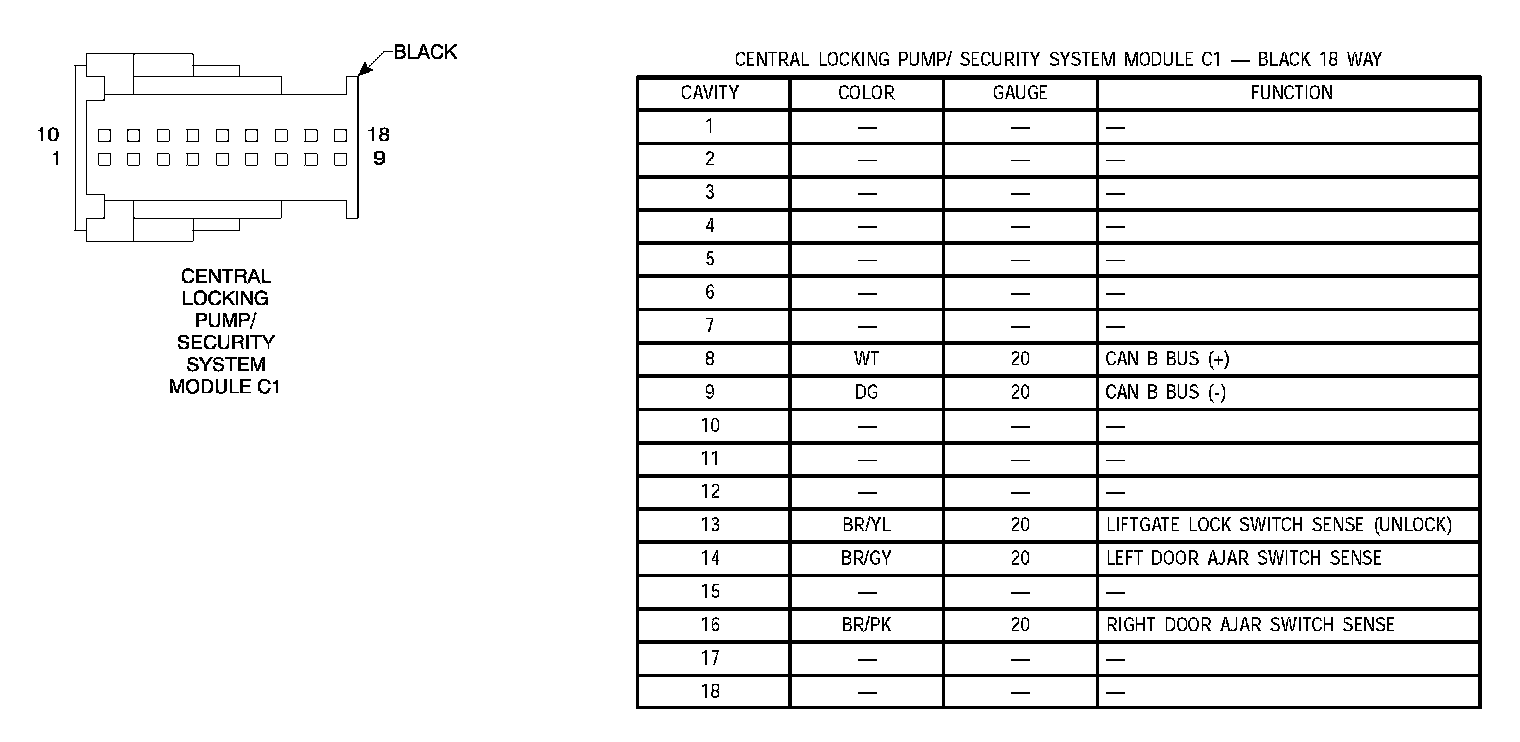

Central Locking Pump / Security System Module C1:

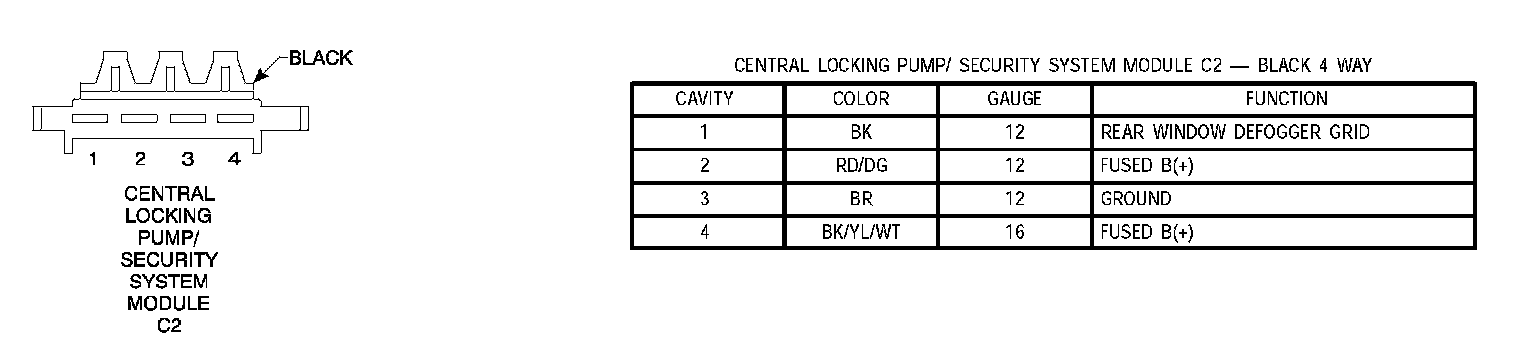

Central Locking Pump / Security System Module C2:

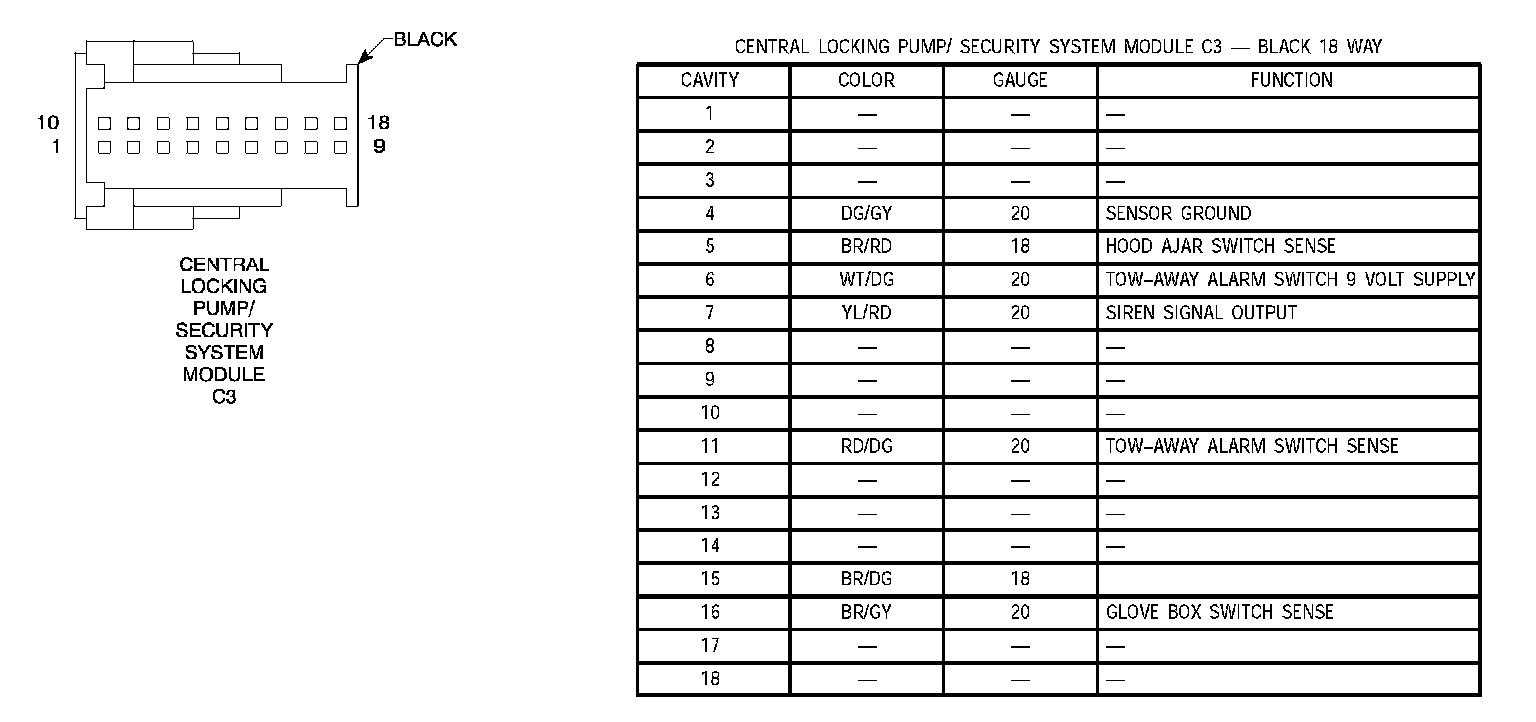

Central Locking Pump / Security System Module C3:

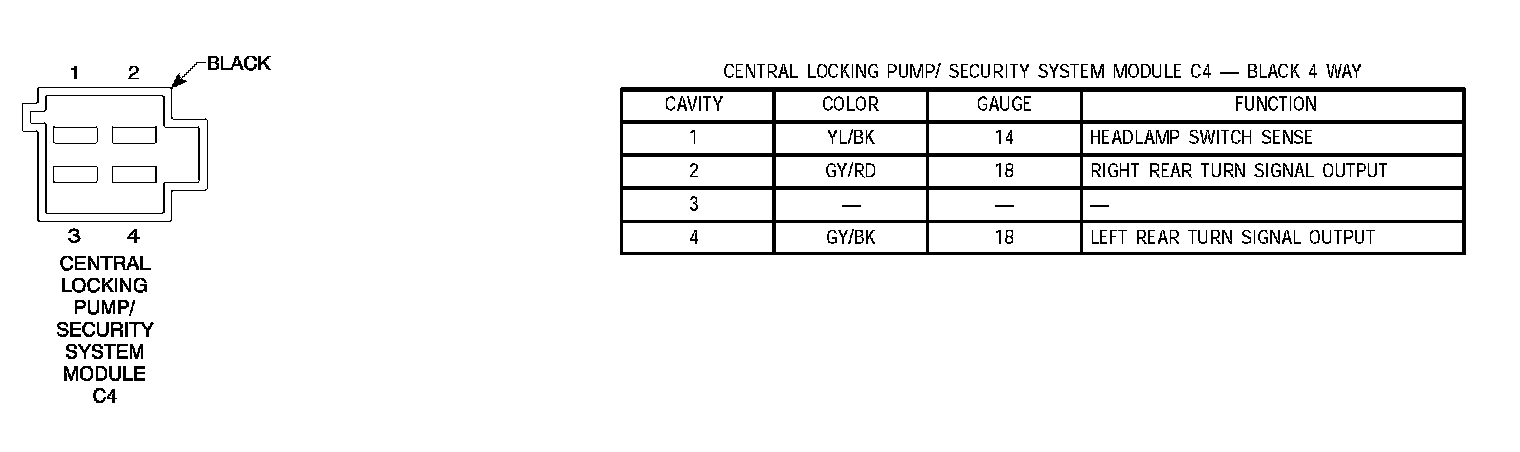

Central Locking Pump / Security System Module C4:
