lemon-mirror
:
Home
>>
Chrysler
>>
2003
>>
Voyager L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Control Module
Power Mirror Control Module

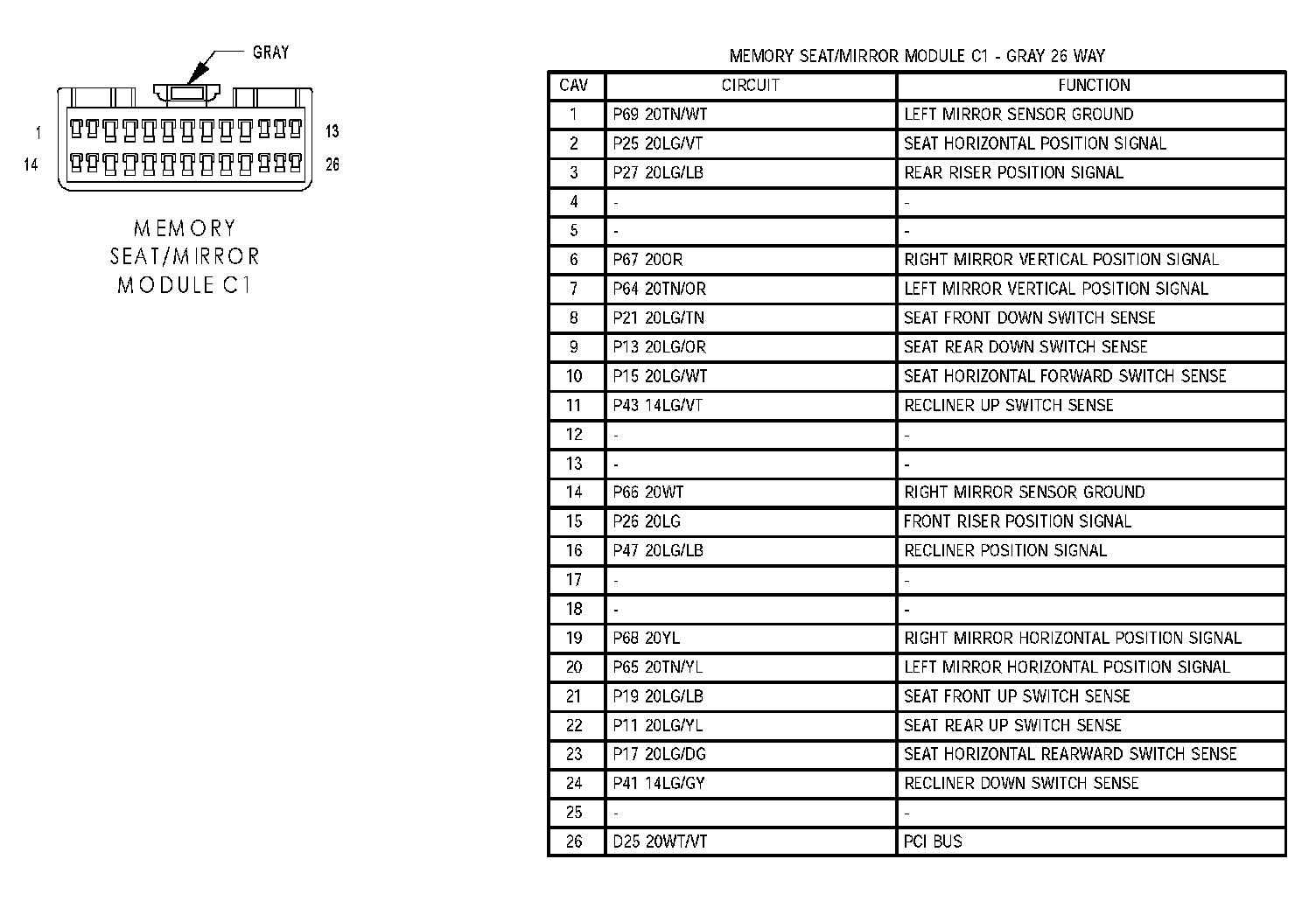

Memory Seat/Mirror Module C1:

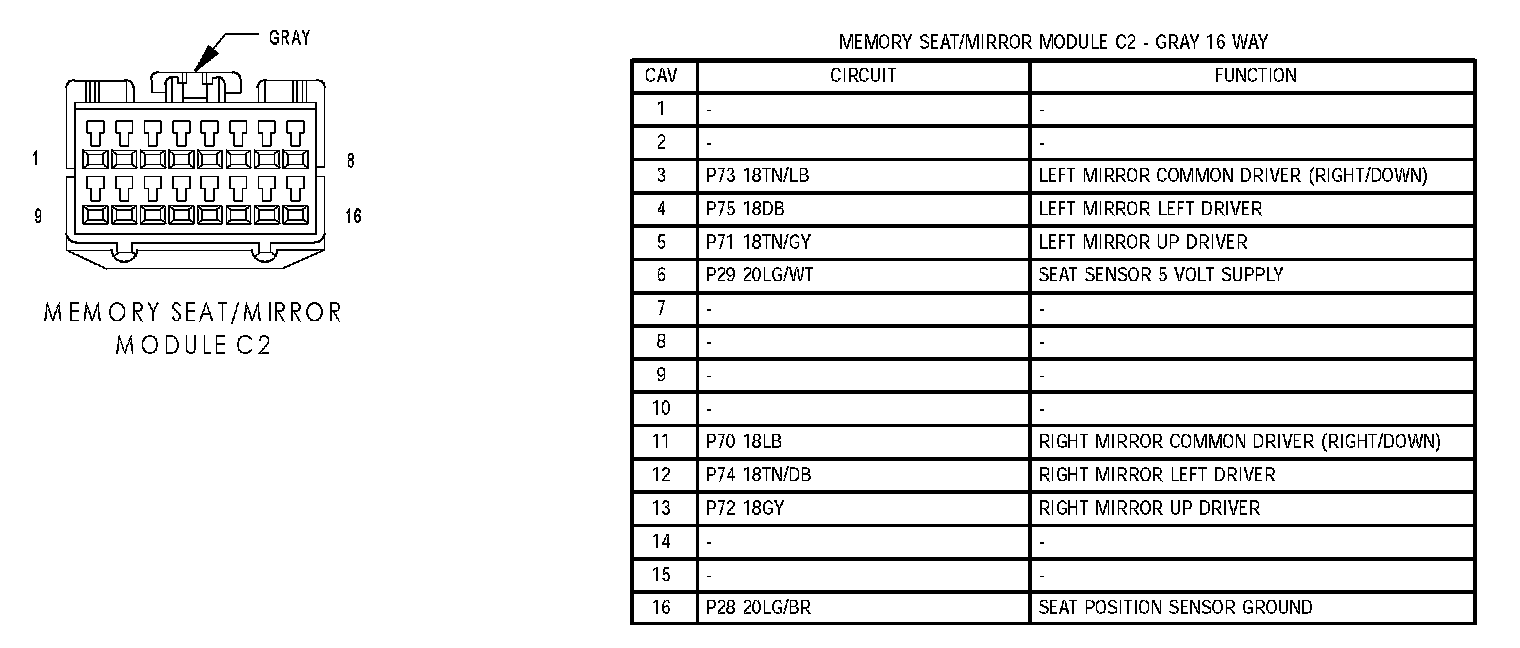

Memory Seat/Mirror Module C2:

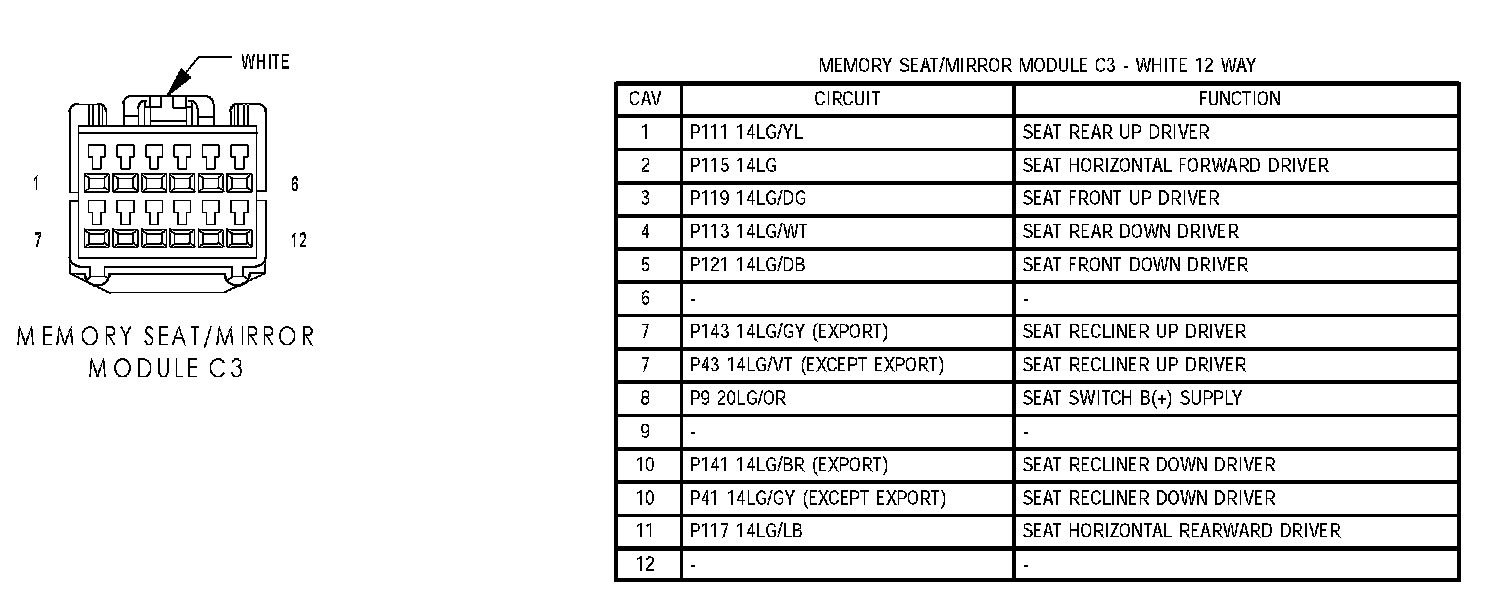

Memory Seat/Mirror Module C3:

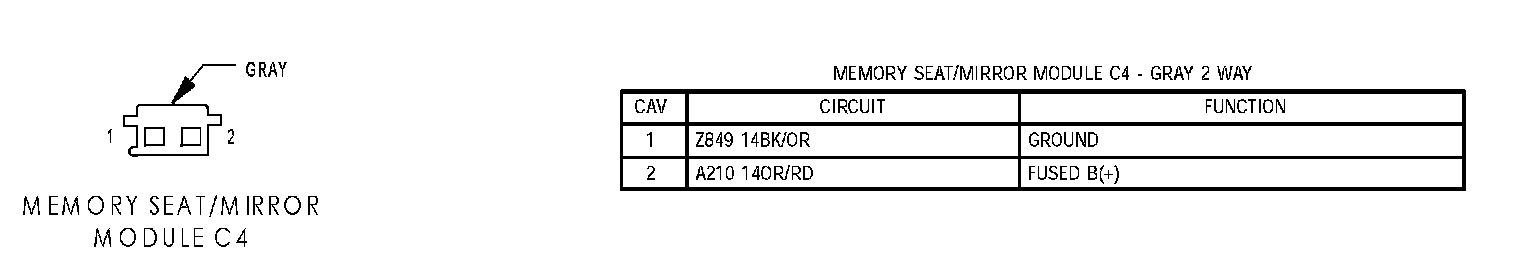

Memory Seat/Mirror Module C4:
