Home >> Chrysler >> 2003 >> Sebring Convertible V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

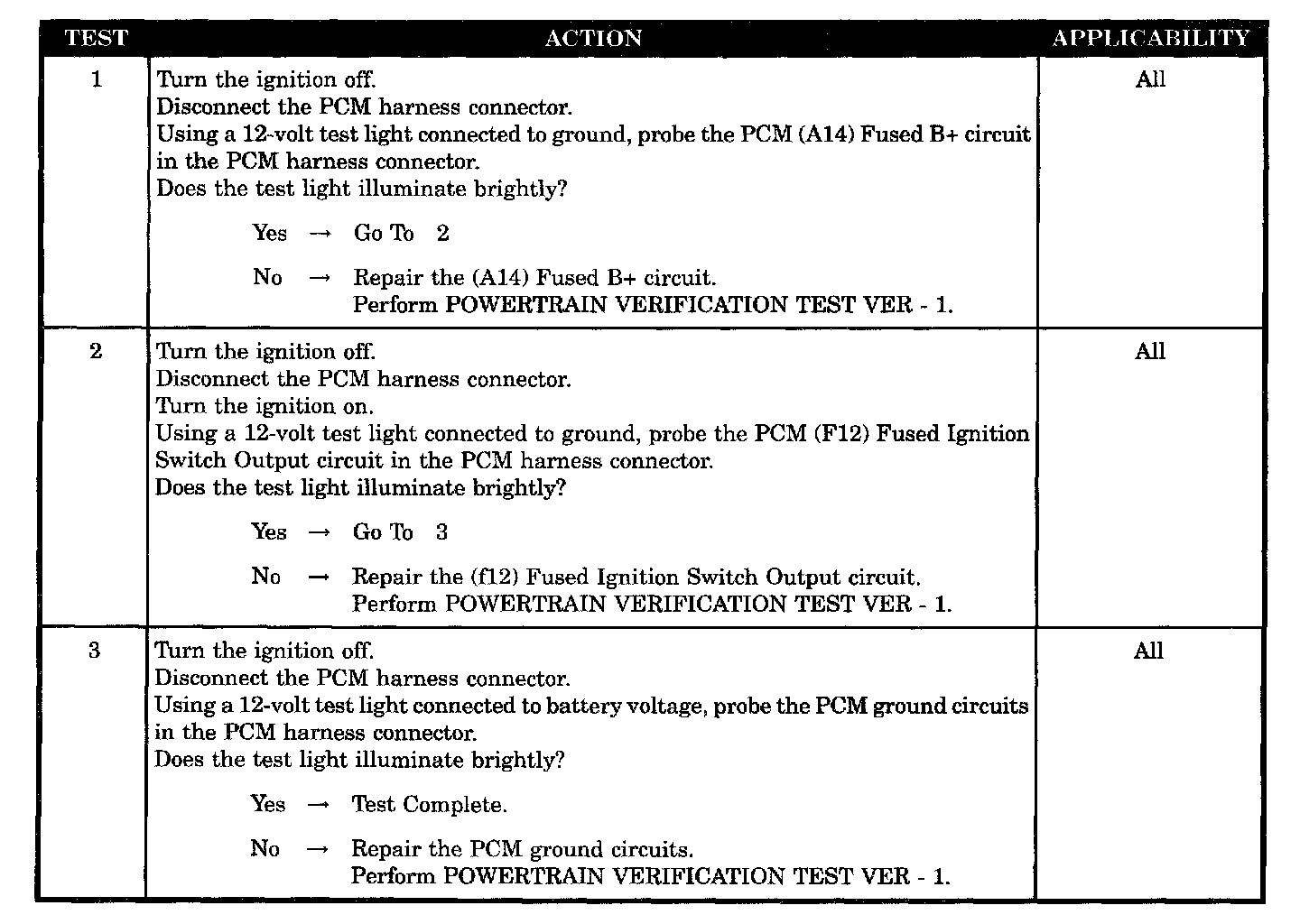

Test 1 - 3:






SYMPTOM
CHECKING PCM POWER AND GROUND CIRCUITS

POSSIBLE CAUSES
- PCM (A14) fused B+ circuit
- PCM (F12) fused ignition switch output circuit
- PCM ground circuits
