Main Relay (Computer/Fuel System): Locations

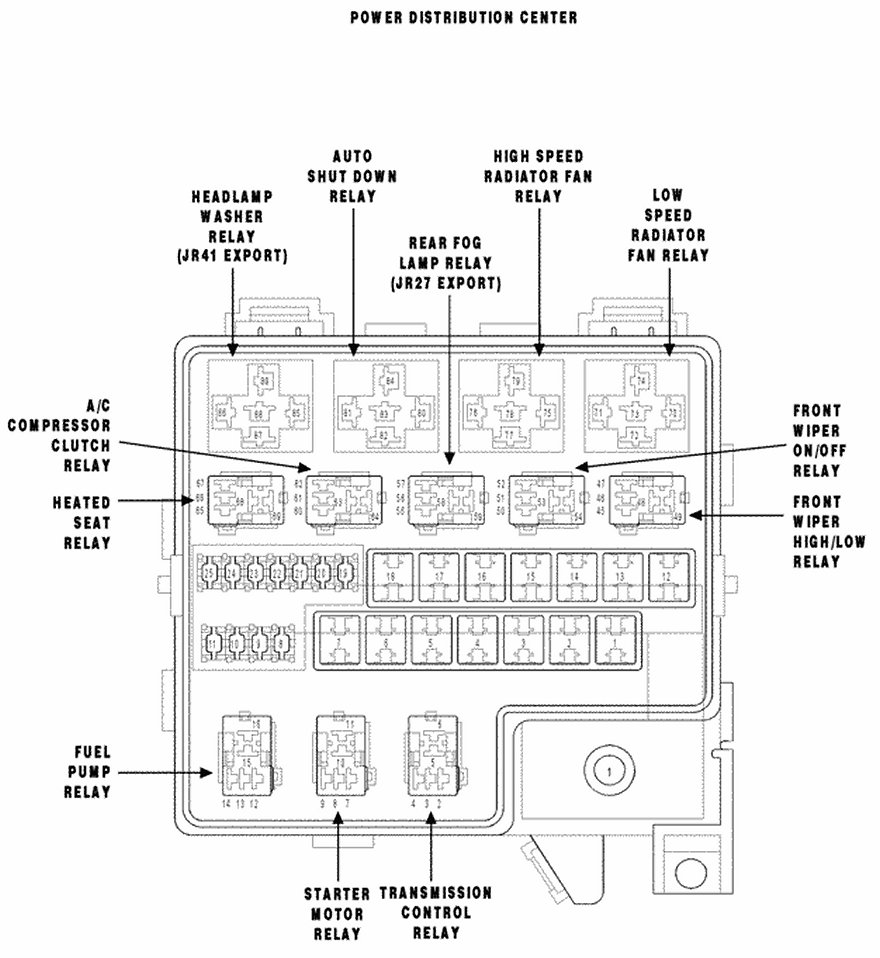

Auto Shut Down (ASD) Relay is located in the Power Distribution Center (PDC).



Power Distribution Center (PDC) is located in the left front corner of the engine compartment, just behind the battery.
