A/C System Test

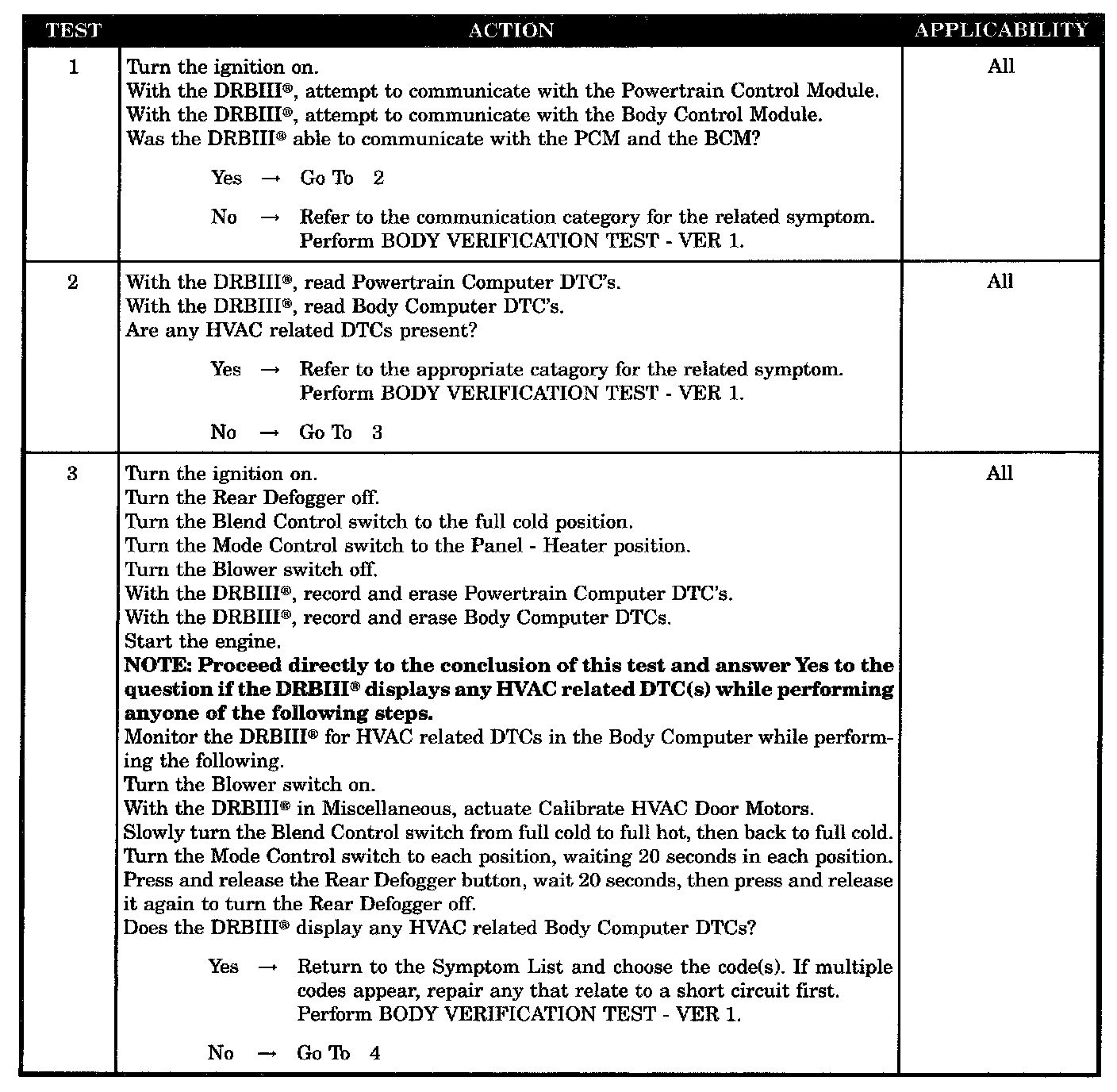

Test 1 - 3:

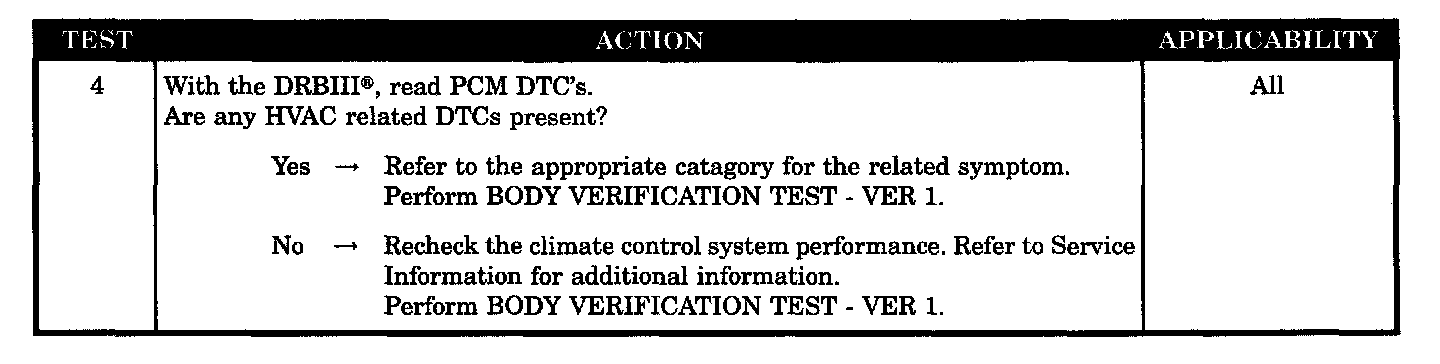

Test 4:

SYMPTOM
A/C SYSTEM TEST

POSSIBLE CAUSES
- Attempt to communicate with the PCM and the BCM
- Check for HVAC related DTCs in the PCM and the BCM
- Monitor the DRBIII(R) for HVAC DTCs
- Check for HVAC related DTCs in the PCM
- Manual A/C system test
