Headlamp
>>
Headlamp Alignment Control Module
Headlamp Alignment Control Module

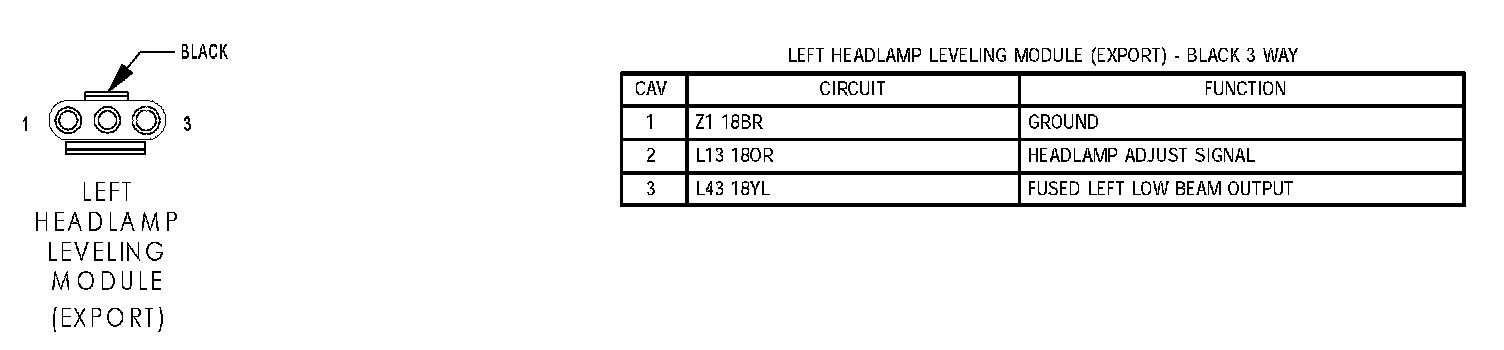

Left Headlamp Leveling Module (Export):

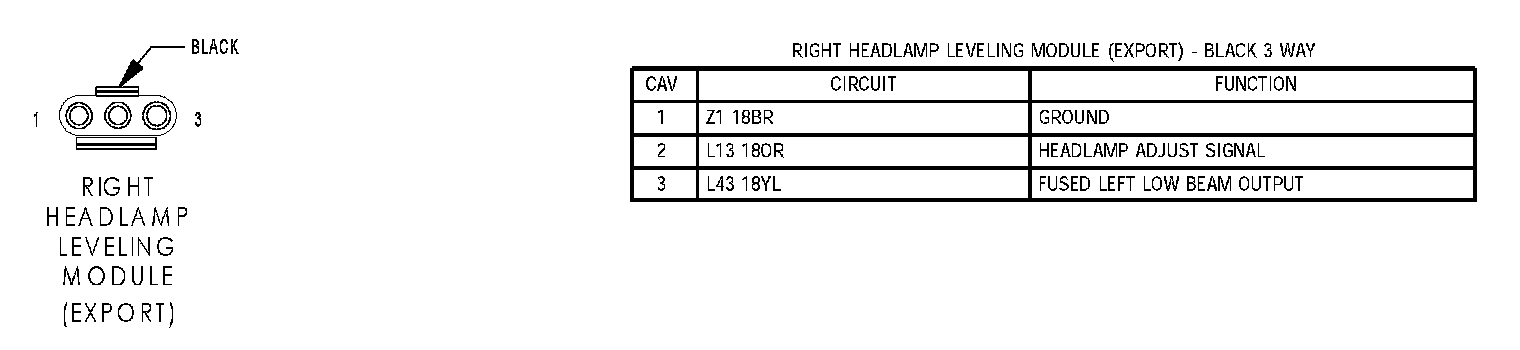

Right Headlamp Leveling Module (Export):
