Home >> Chrysler >> 2003 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> System Specifications

System Specifications

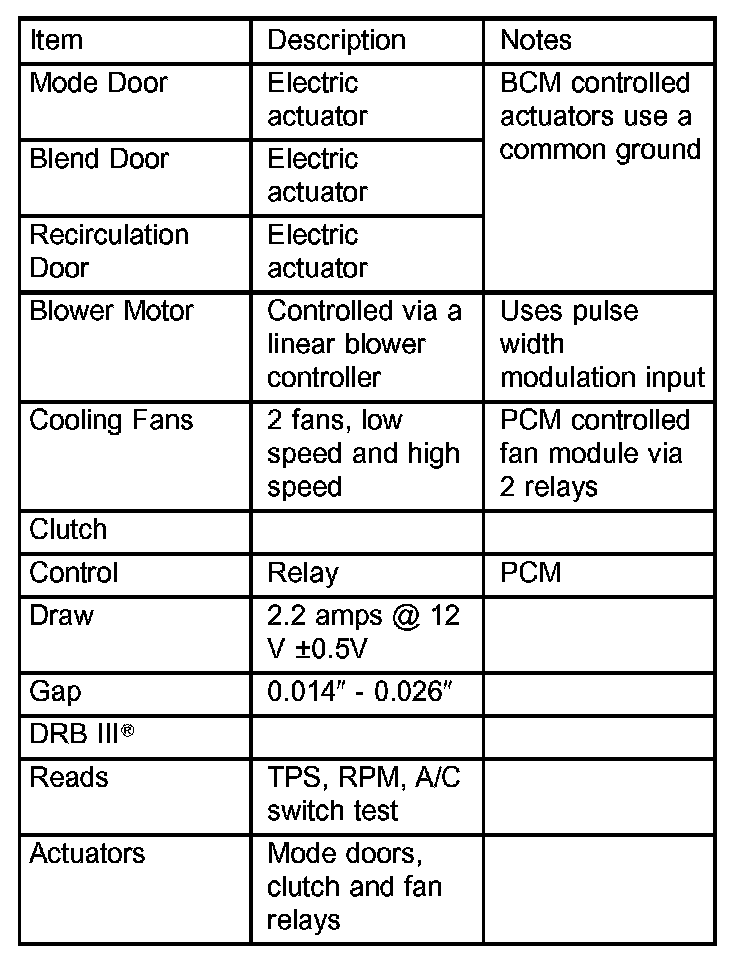

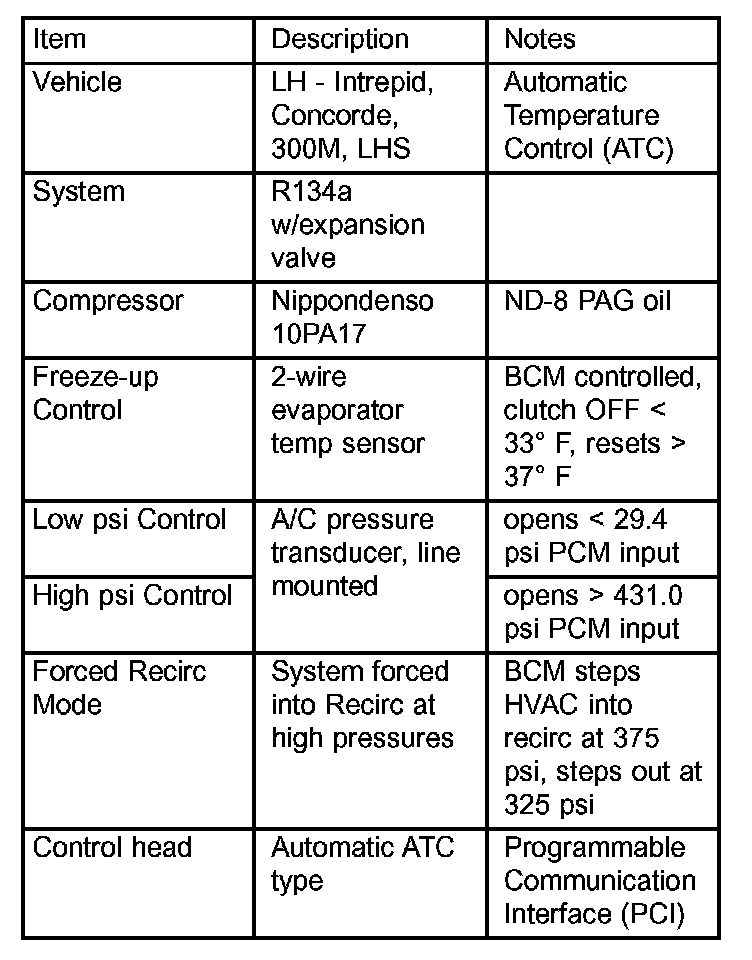

A/C Application Table - ATC:




A/C Application Table - ATC:

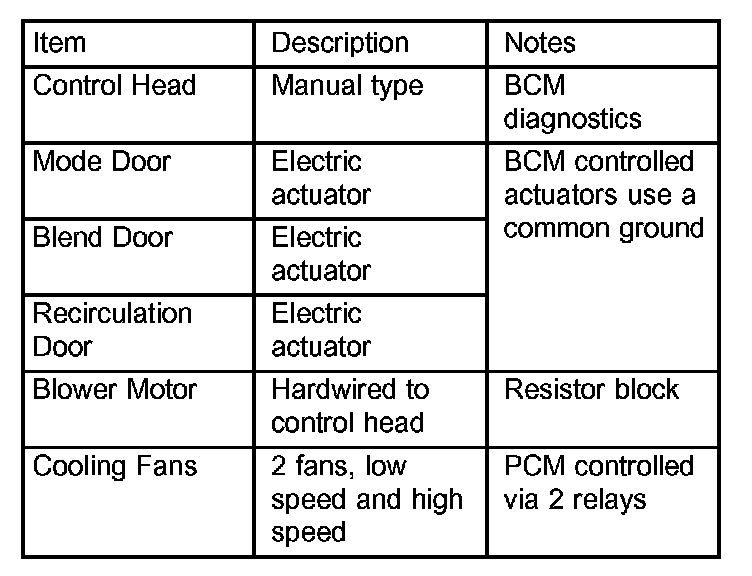

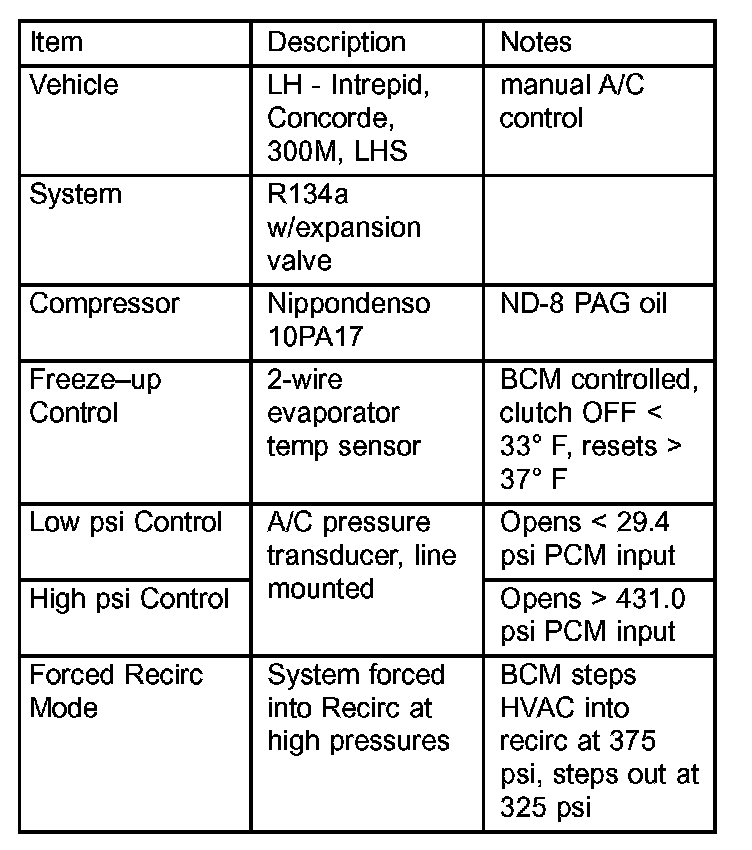

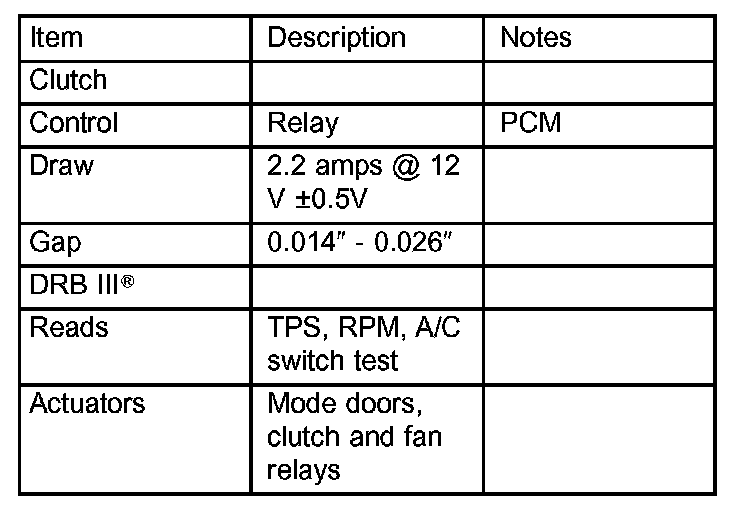

A/C Application Table - MTC:




A/C Application Table - MTC:




A/C Application Table - MTC:

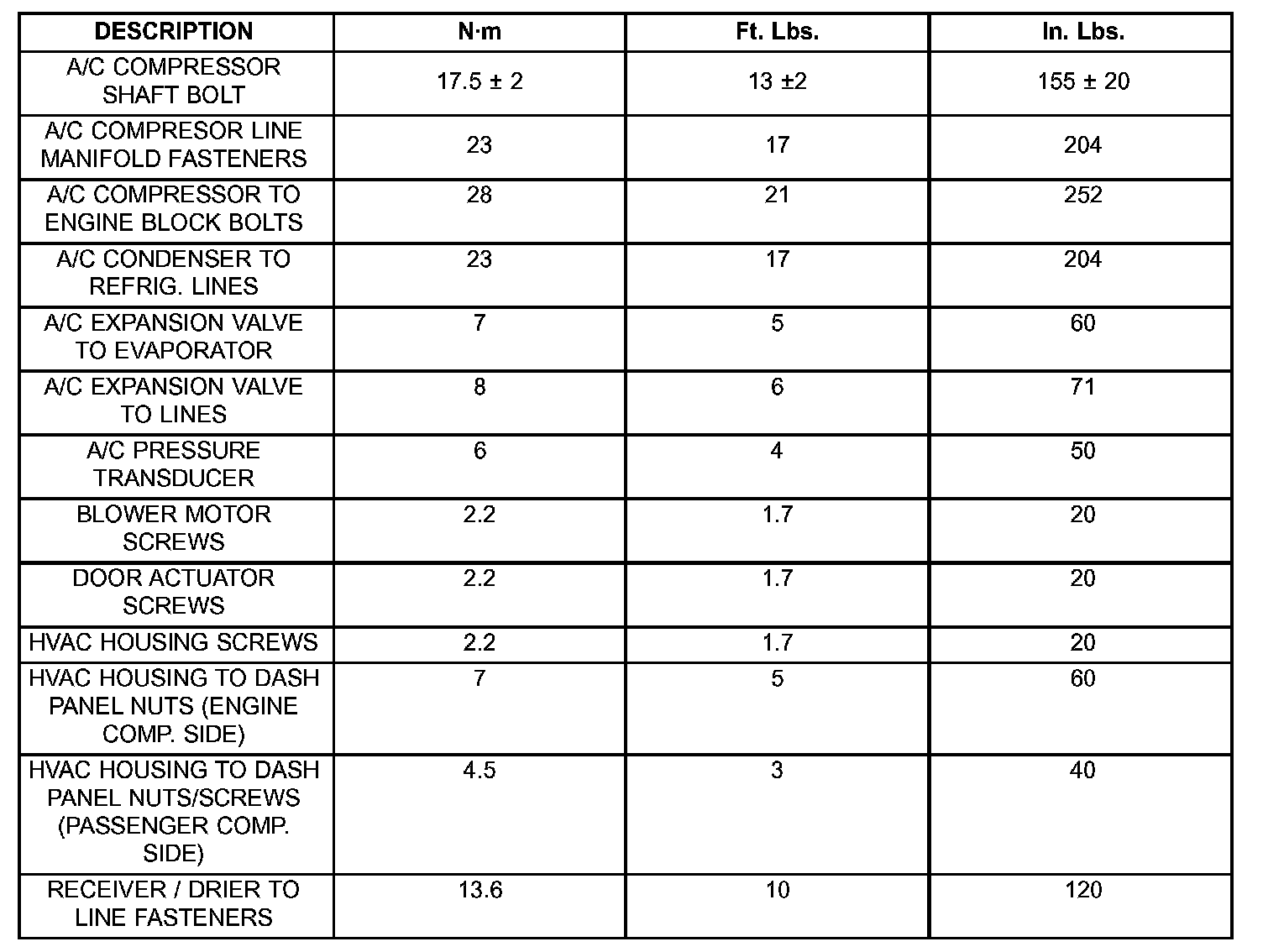

Torque Specifications:
