Home >> Chrysler >> 2003 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations >> Junction Block

Junction Block

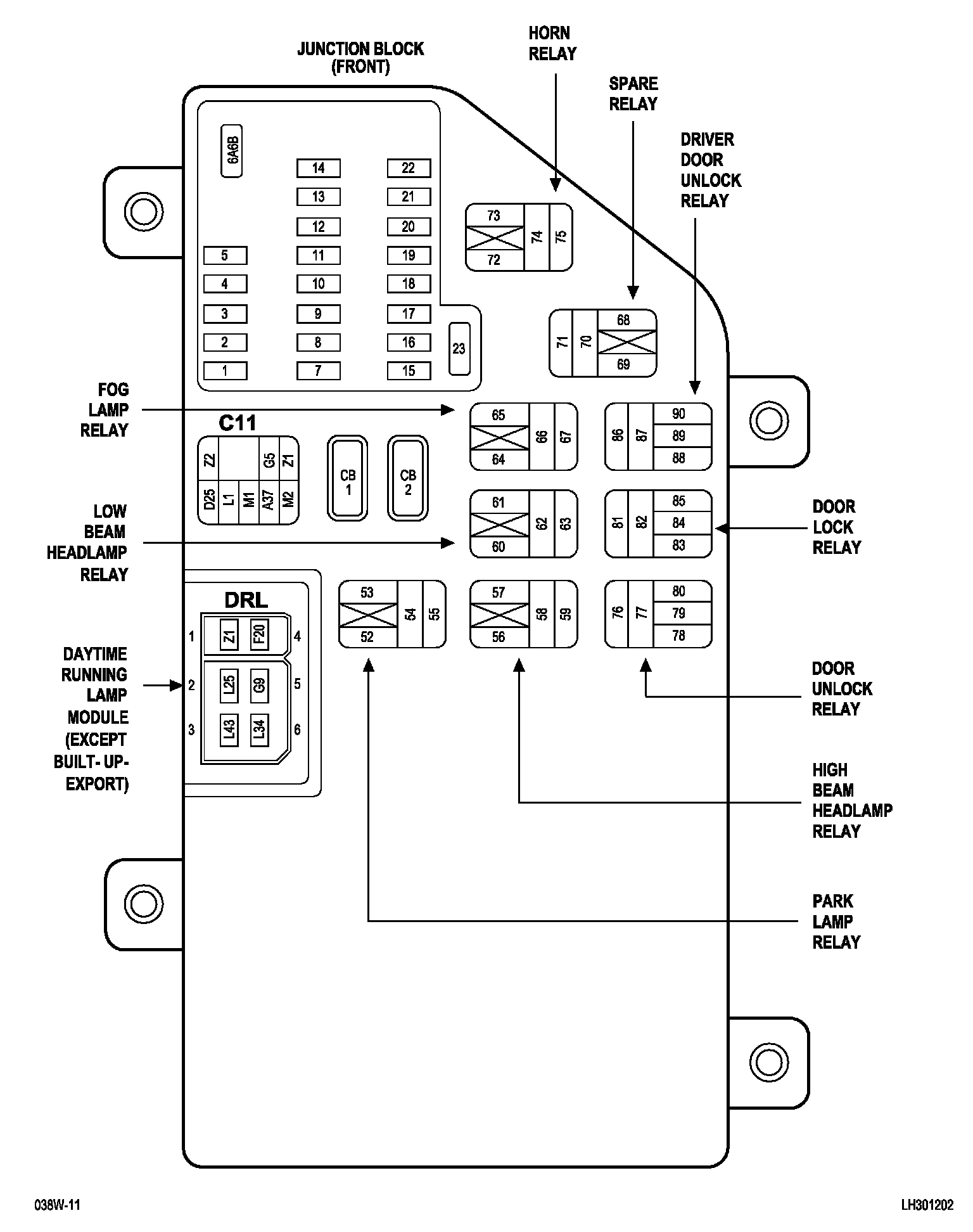

8w-12-2 Junction Block (Front):

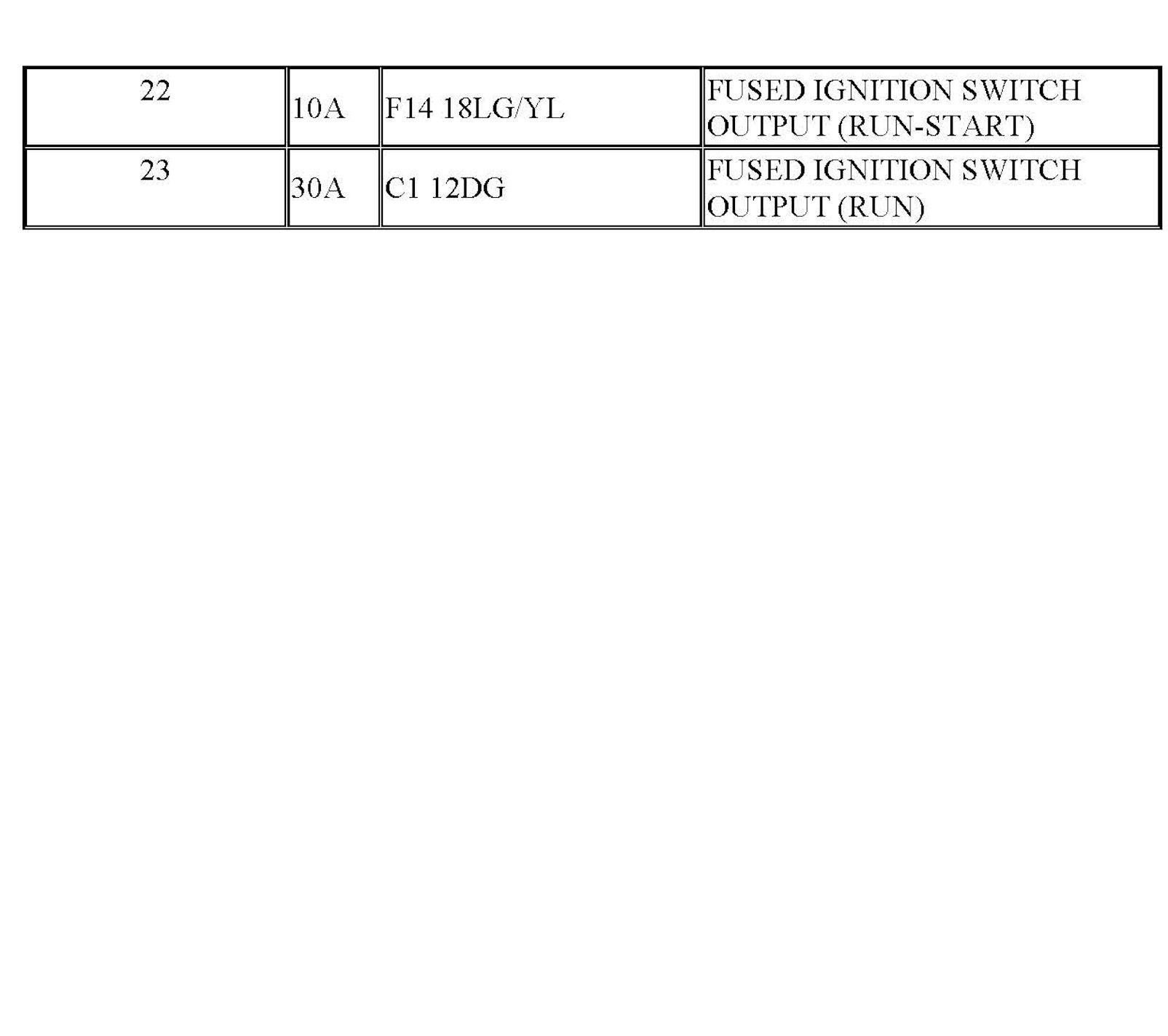

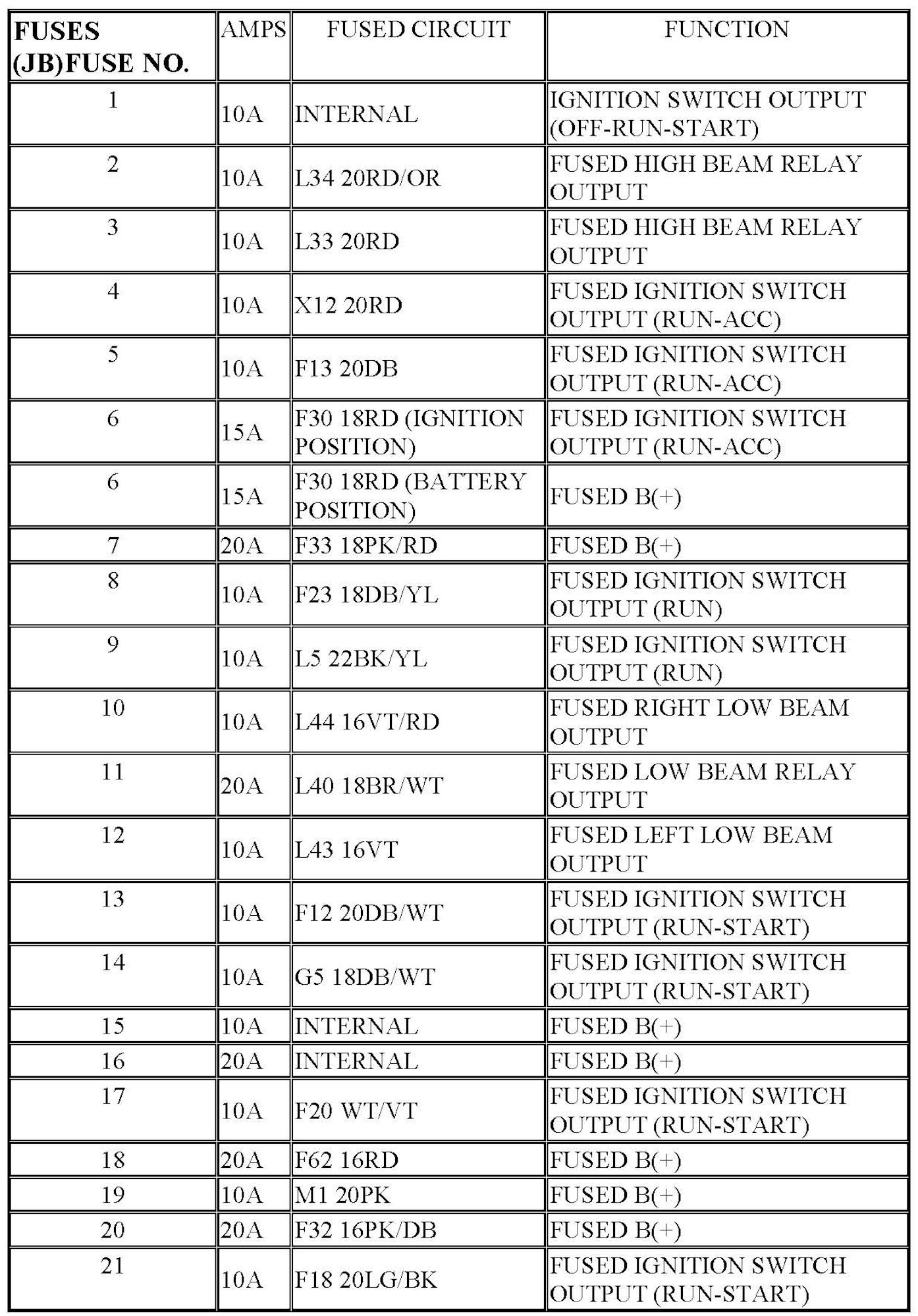

8w-12-3 Junction Block (Back):
