Chrysler
>>
2003
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

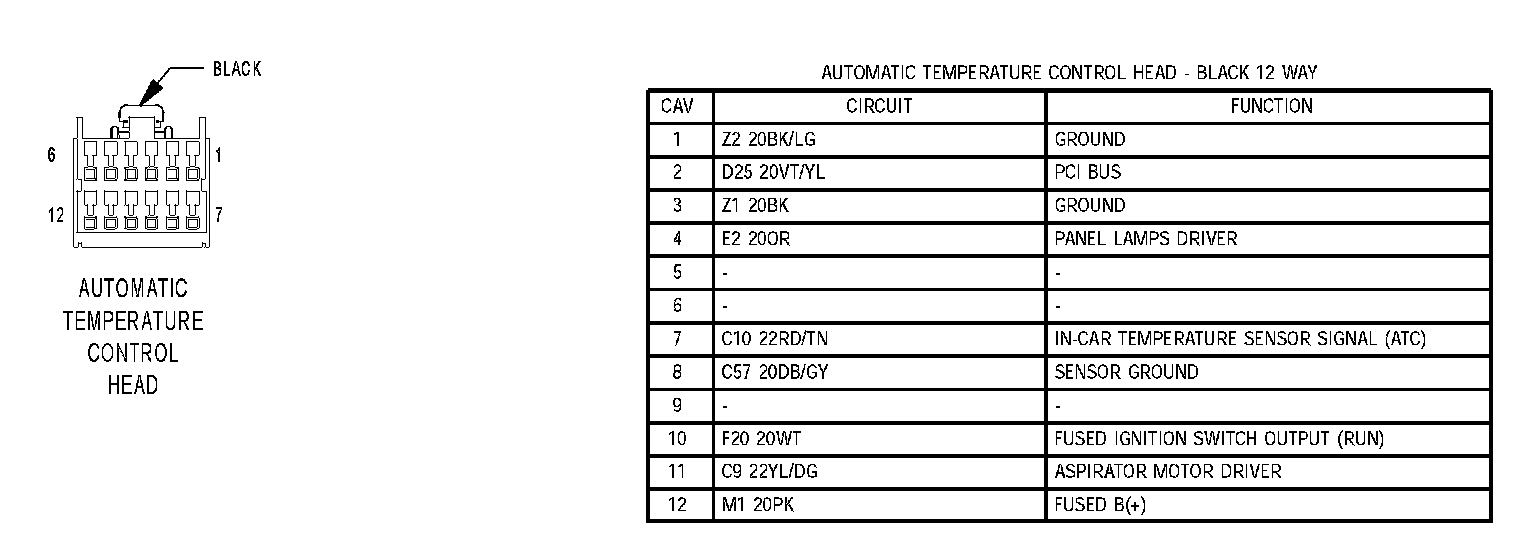

Automatic Temperature Control Head
Automatic Temperature Control Head
Automatic Temperature Control Head:
