Home >> Chrysler >> 2002 >> Sebring LX Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications

System Specifications

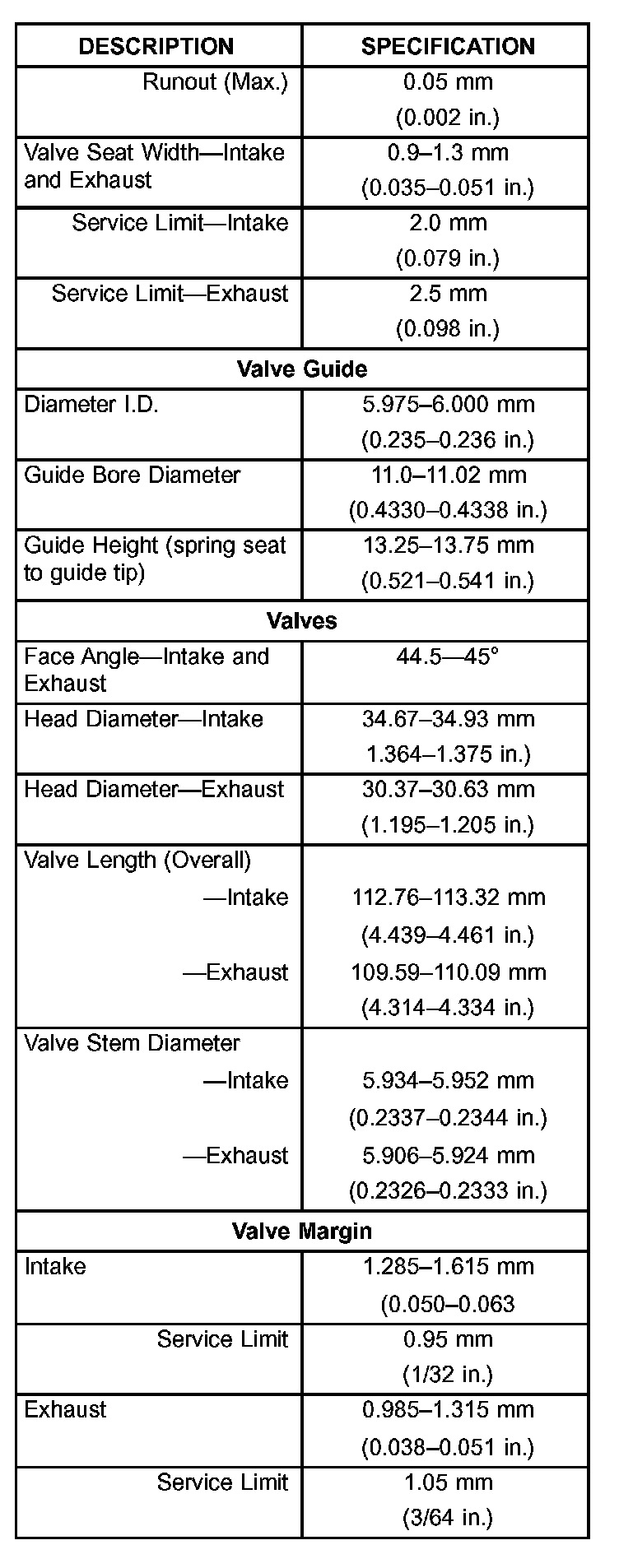

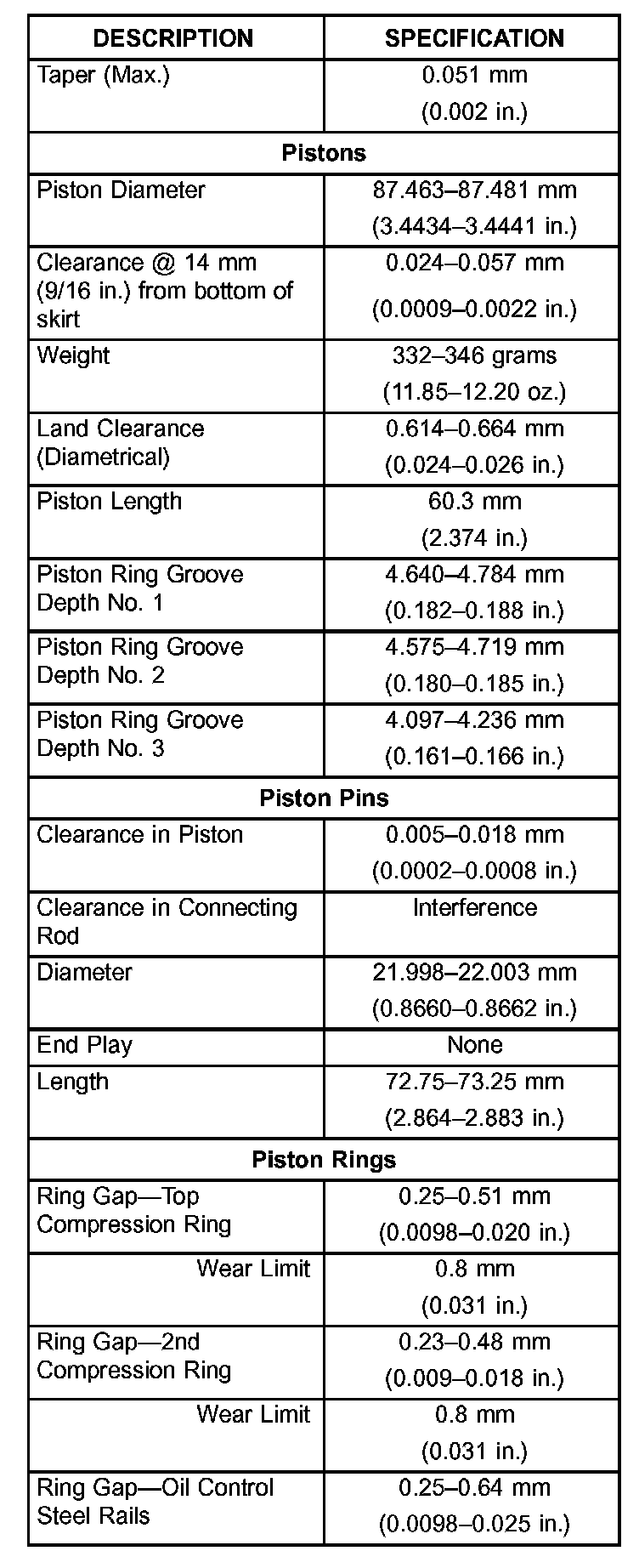

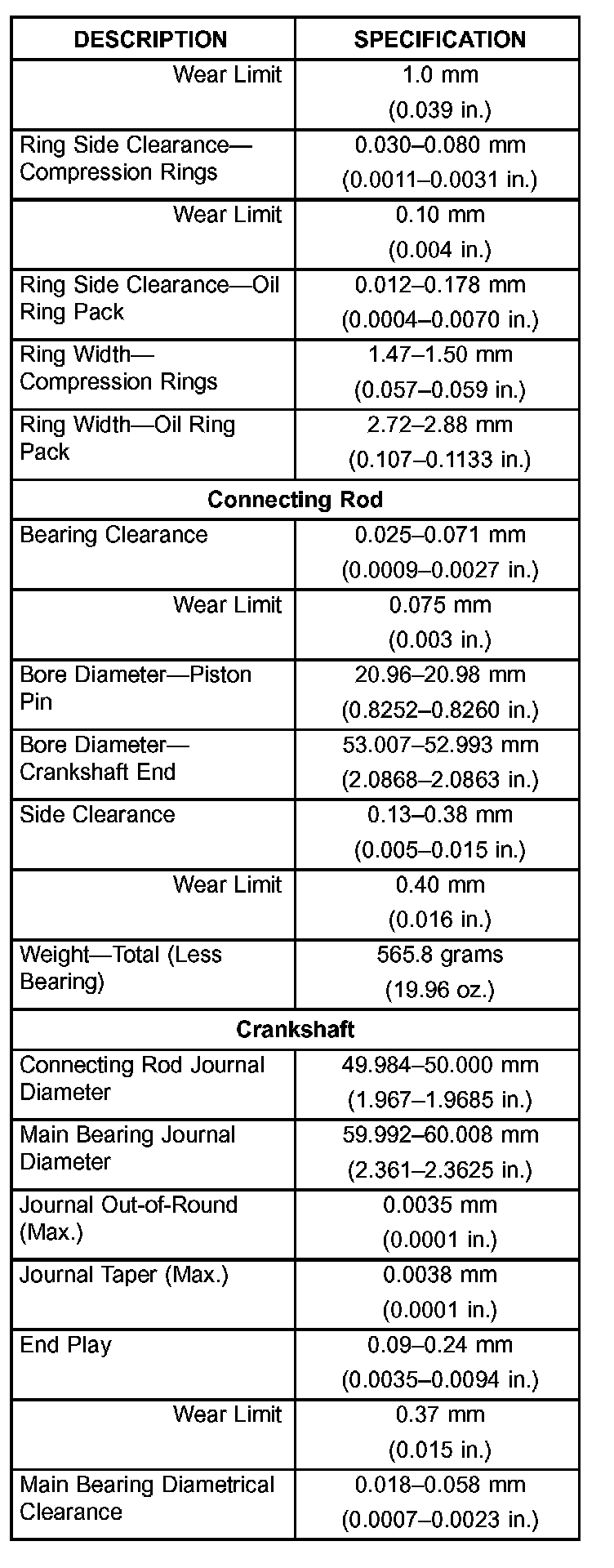

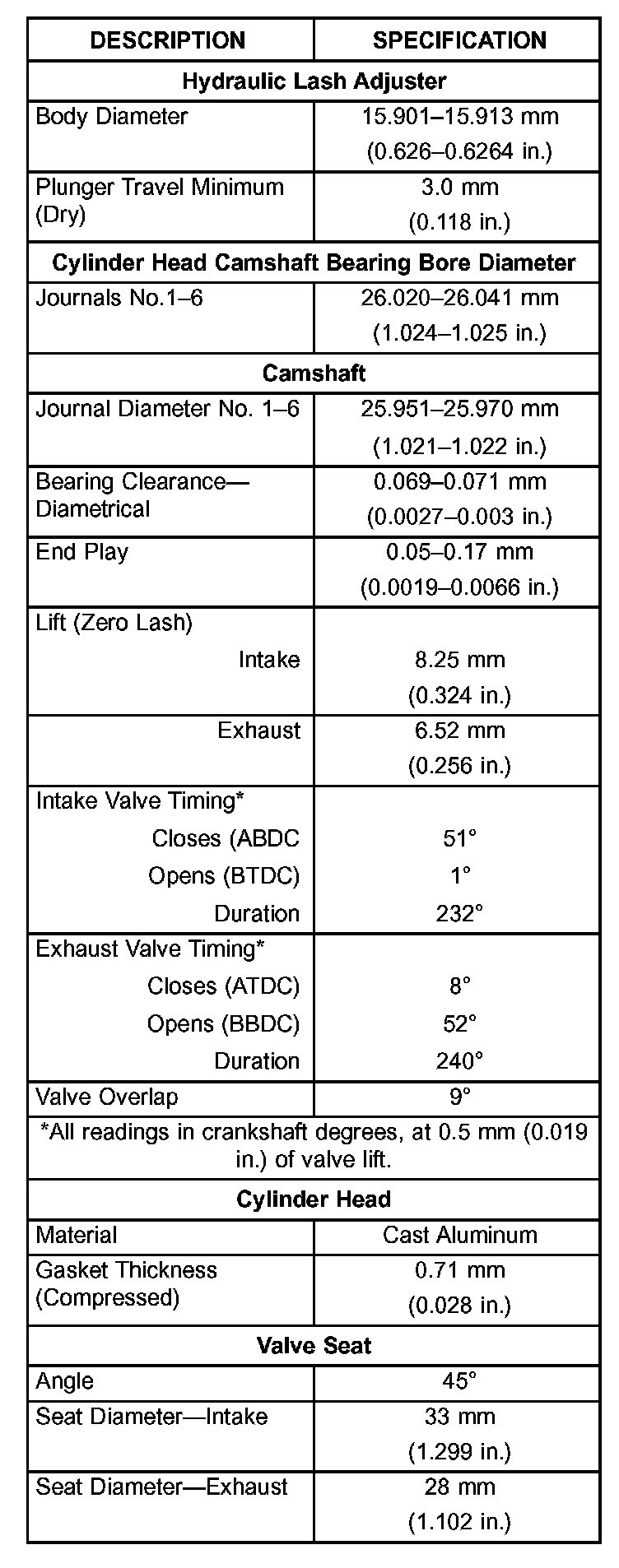

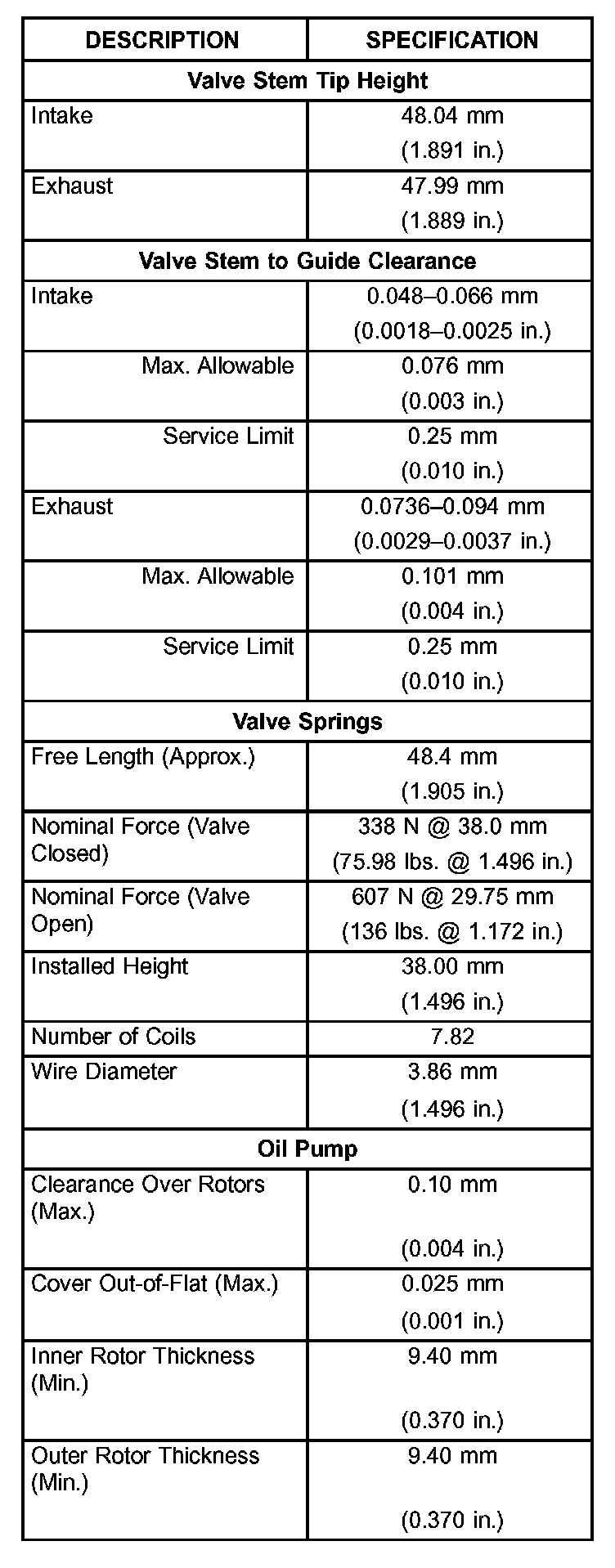

Engine Specifications





Part 1 of 7





Part 2 of 7





Part 3 of 7





Part 4 of 7





Part 5 of 7





Part 6 of 7





Part 7 of 7

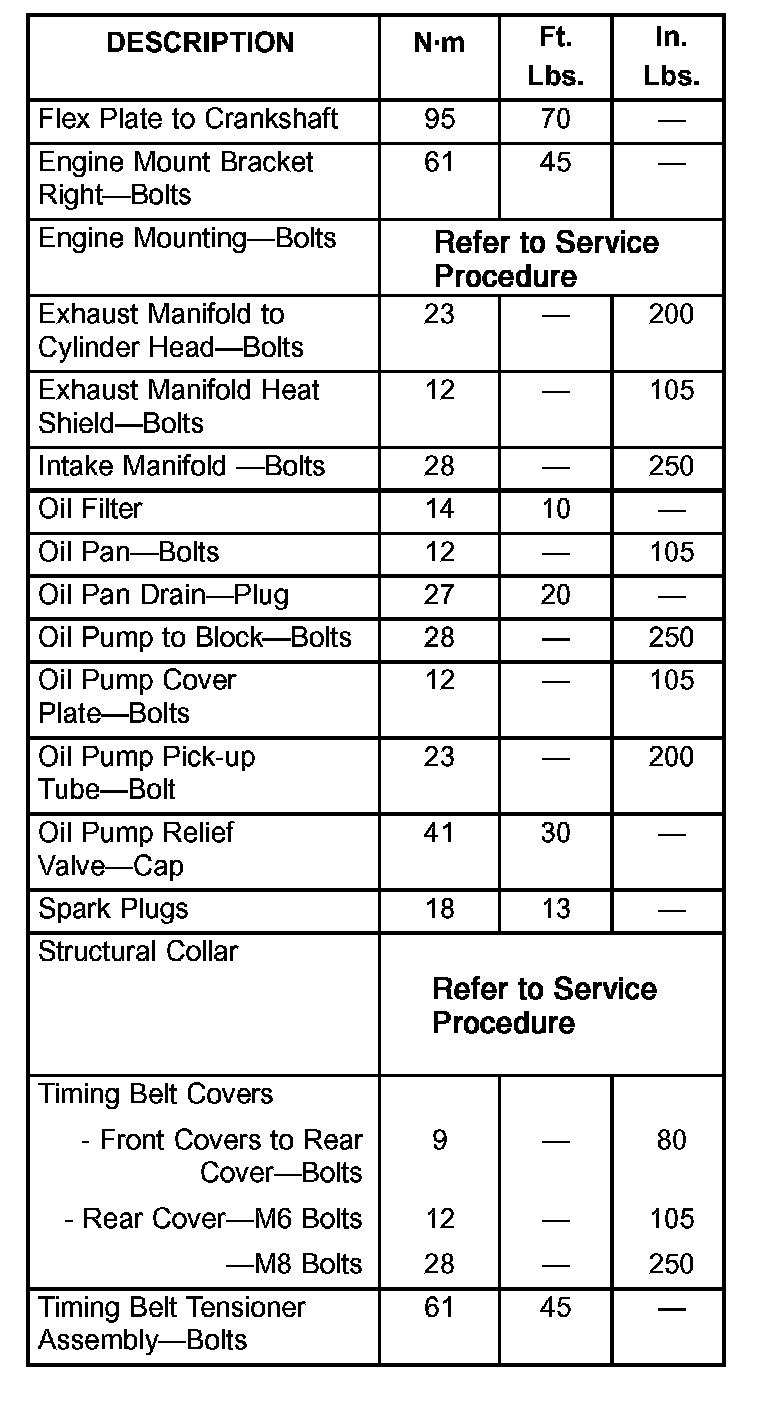

Torque Mechanical





Part 1 of 2





Part 2 of 2
