Control Module: Locations

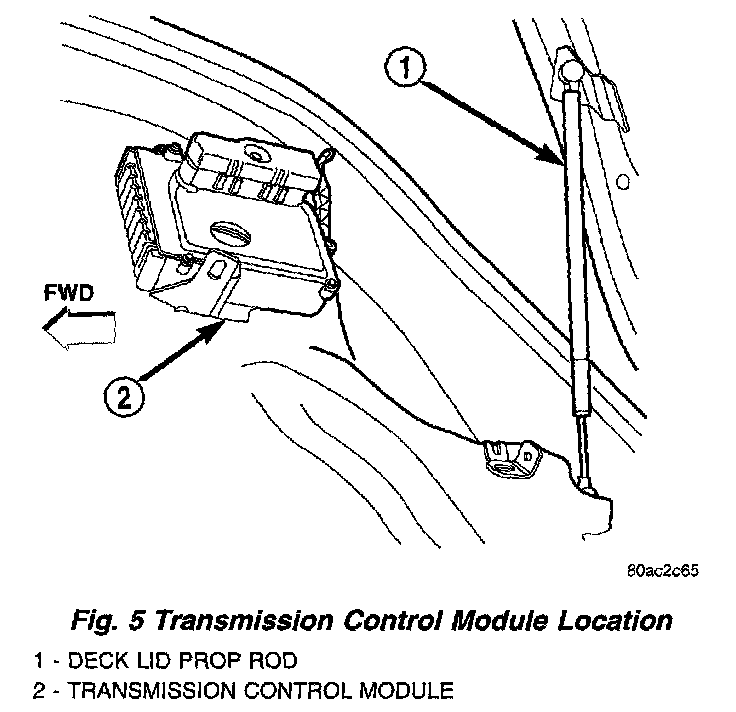

Fig.5 Transmission Control Module Location:

The Transmission Control Module is located in the trunk compartment on the right side of the vehicle. It is held in place by four mounting screws (Fig. 5).
