Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution Module
Power Distribution Module

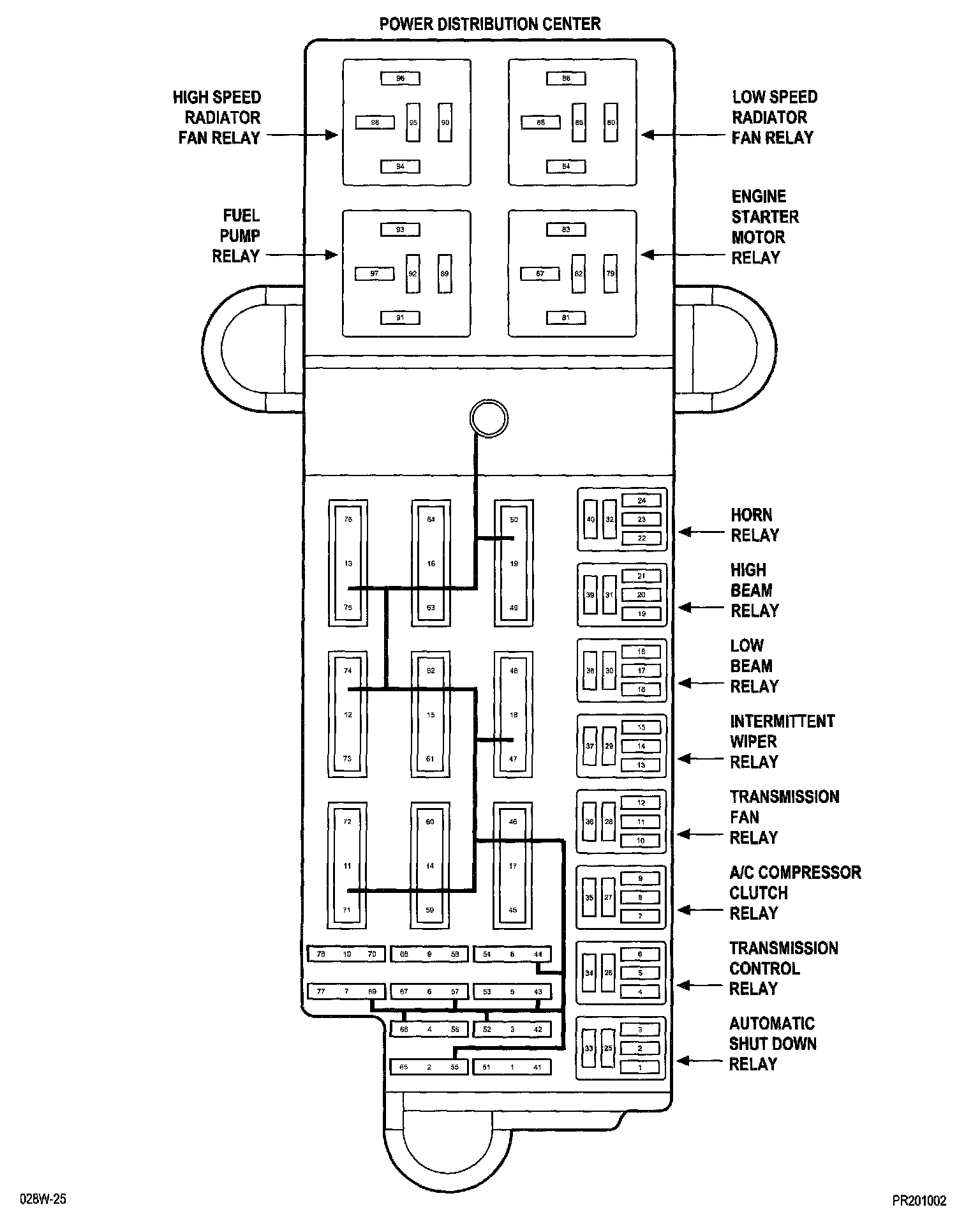

Power Distribution Center:

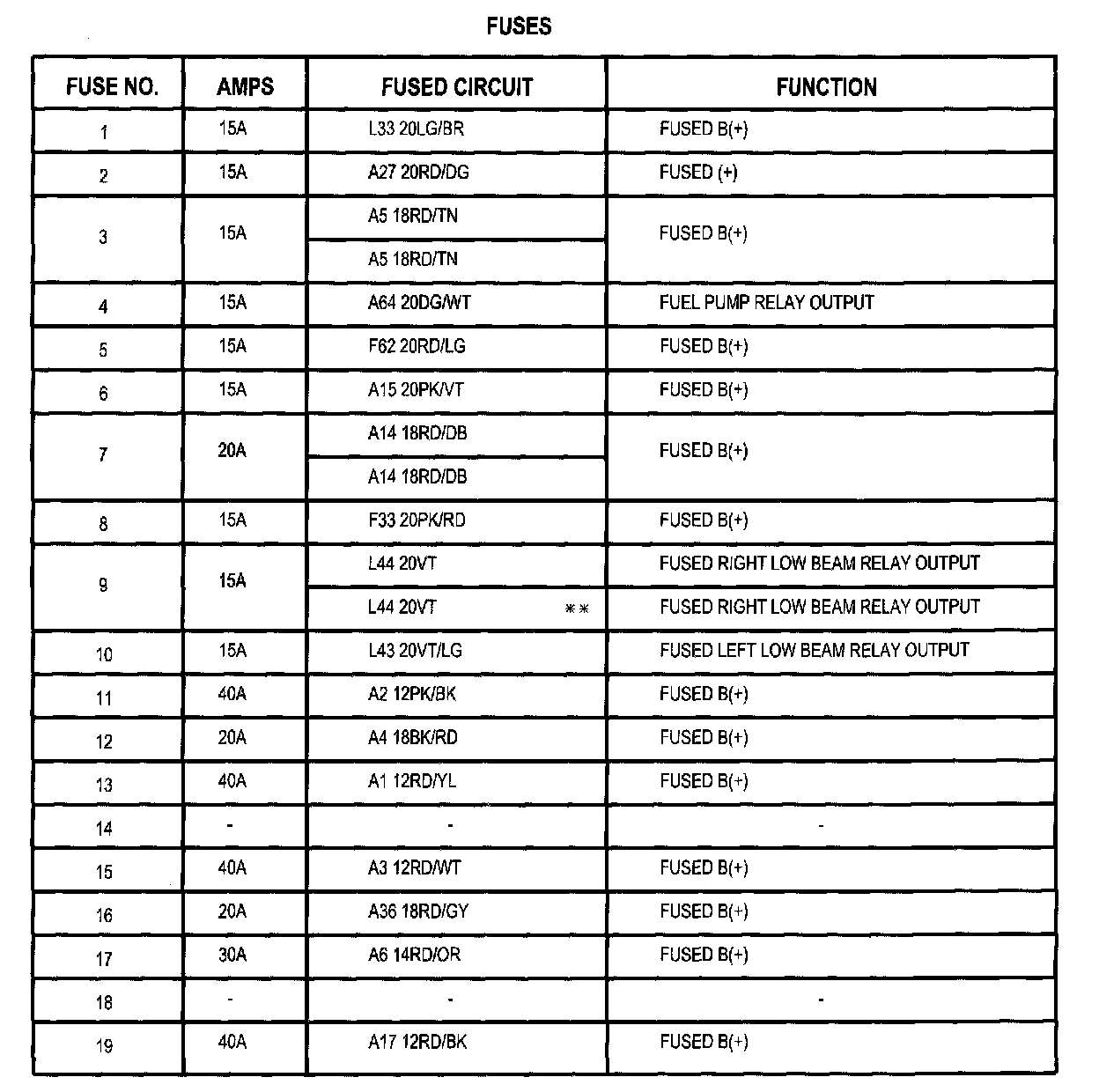

Fuses (PDC):
