Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

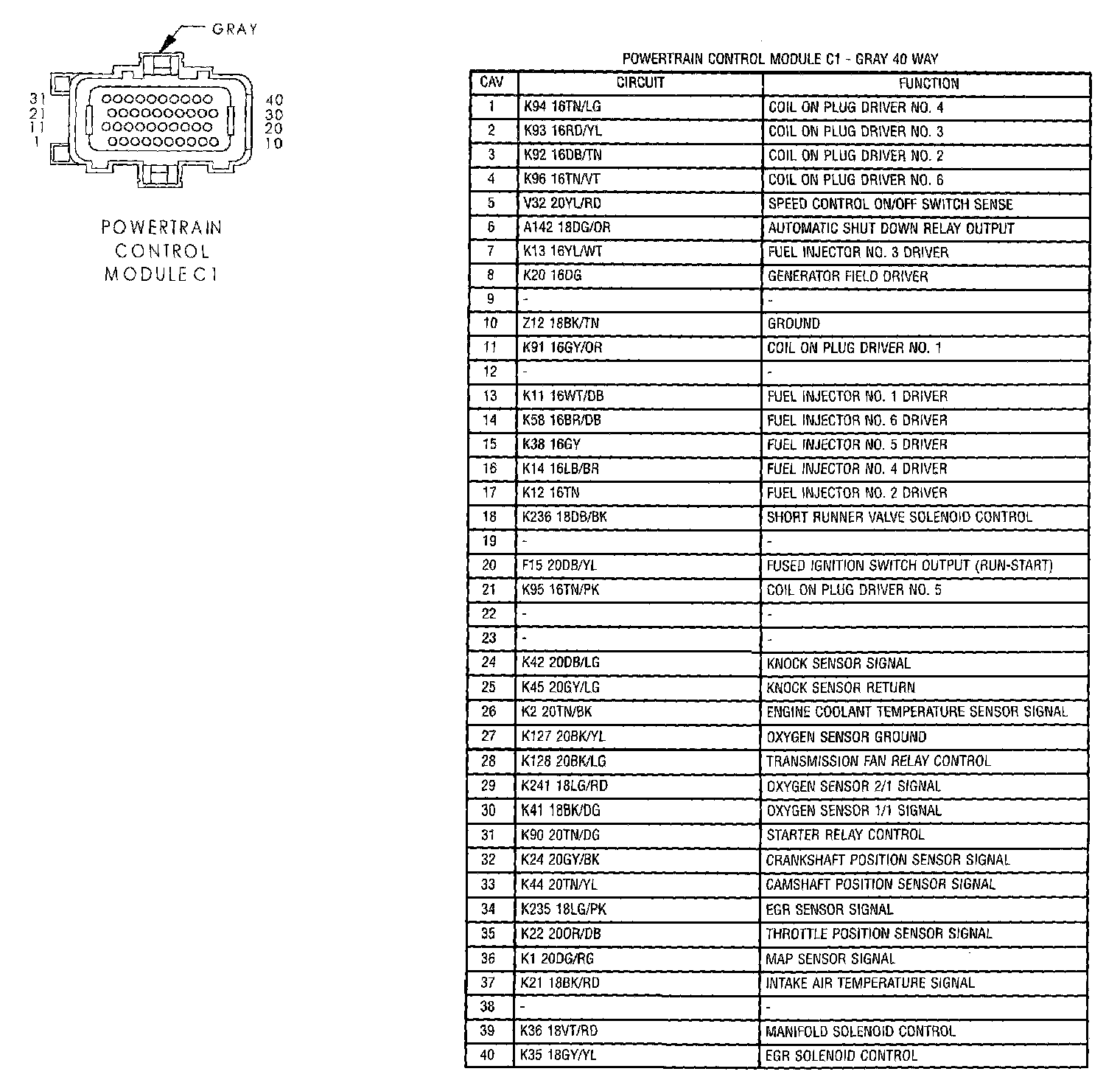

Powertrain Control Module C1:

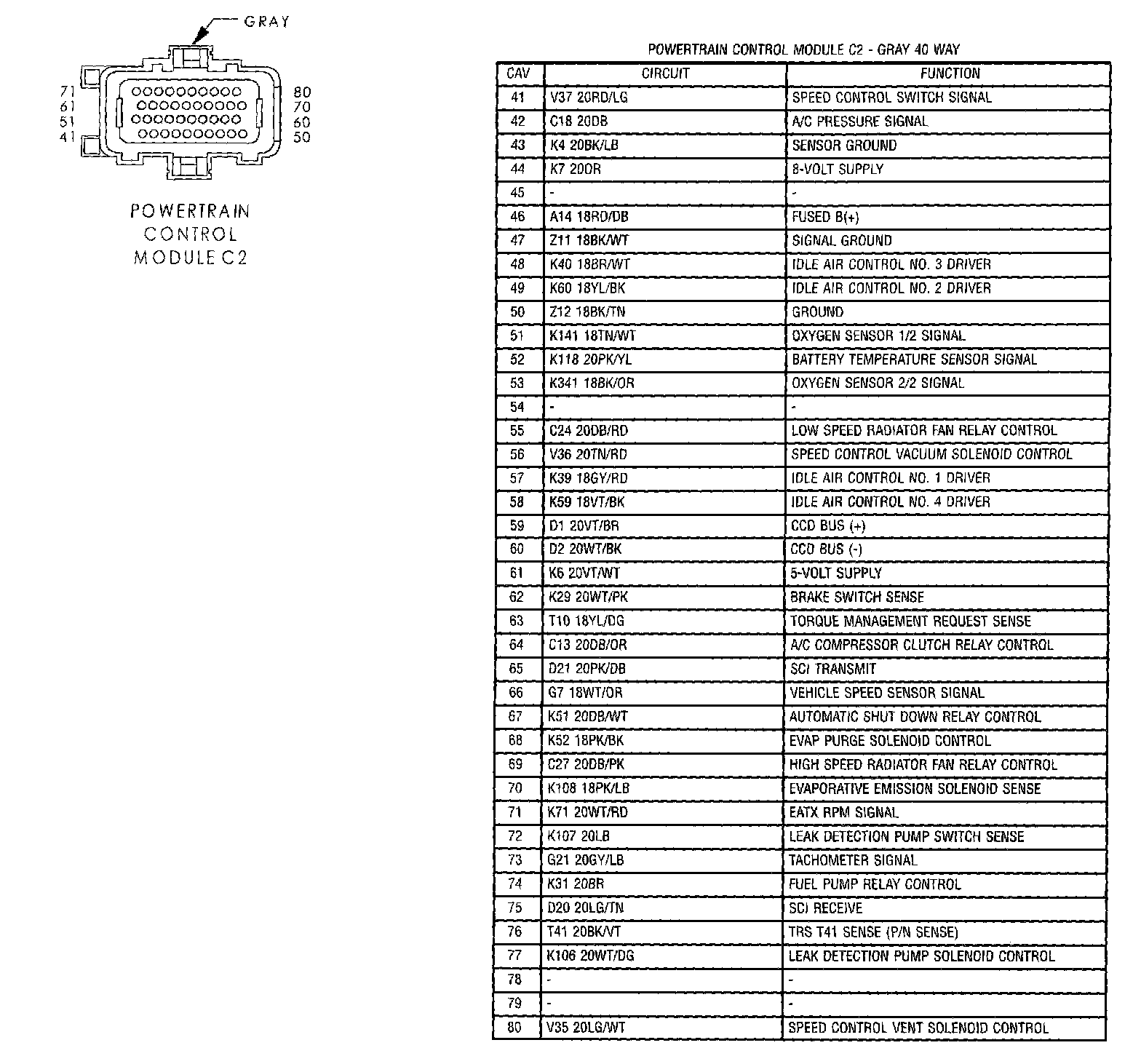

Powertrain Control Module C2:
