Control Module: Locations

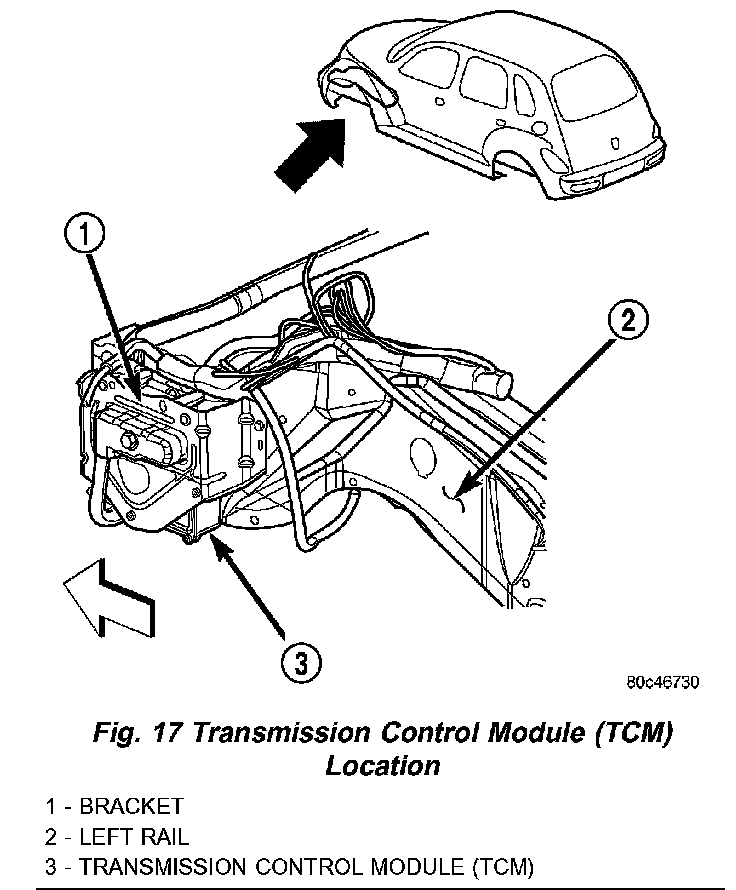

Fig. 17 Transmission Control Module (TCM) Location:

The Transmission Control Module (TCM) is located behind the left fender and is fastened to the left frame rail forward of the suspension (Fig. 17). It mounts on a bracket that is fastened to the rail.
