Intake Manifold

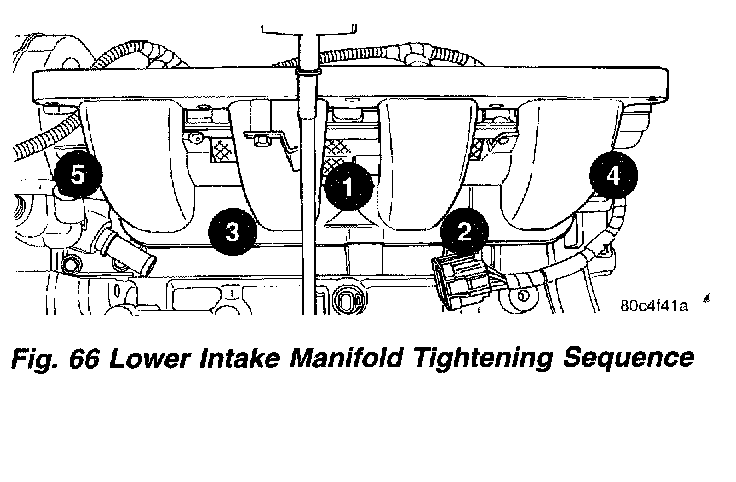

LOWER INTAKE MANIFOLD
Tighten lower intake manifold fasteners to 12 Nm (105 in. lbs.) in sequence shown.

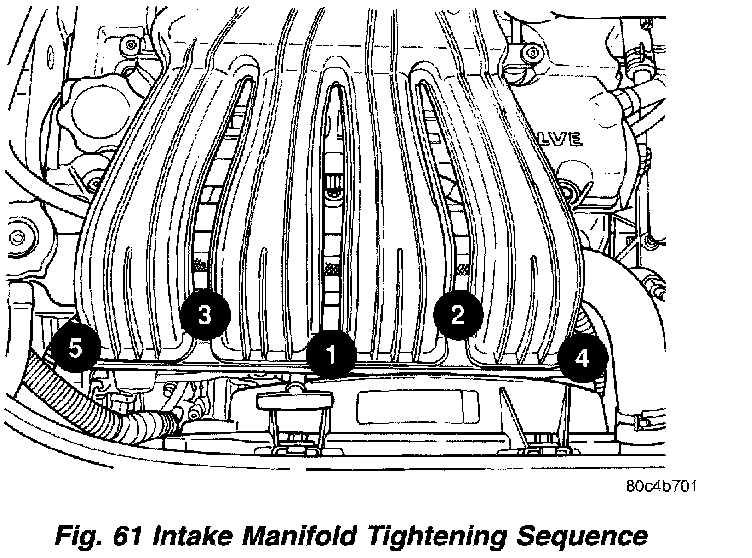

UPPER INTAKE MANIFOLD
Tighten upper intake manifold fasteners to 12 Nm (105 in. lbs.) in sequence shown.
LOWER INTAKE MANIFOLD
Tighten lower intake manifold fasteners to 12 Nm (105 in. lbs.) in sequence shown.
UPPER INTAKE MANIFOLD
Tighten upper intake manifold fasteners to 12 Nm (105 in. lbs.) in sequence shown.
