Home >> Chrysler >> 2002 >> PT Cruiser L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module

Seat Temperature Control Module

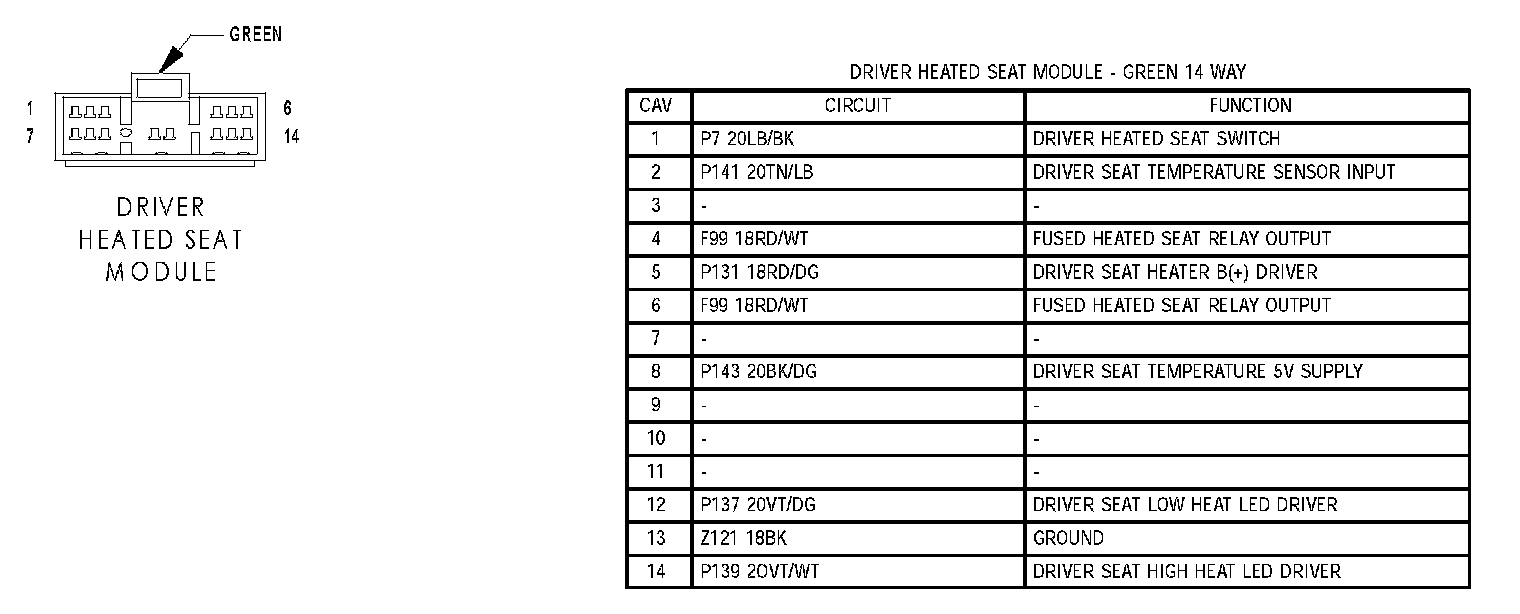

Driver Heated Seat Module:

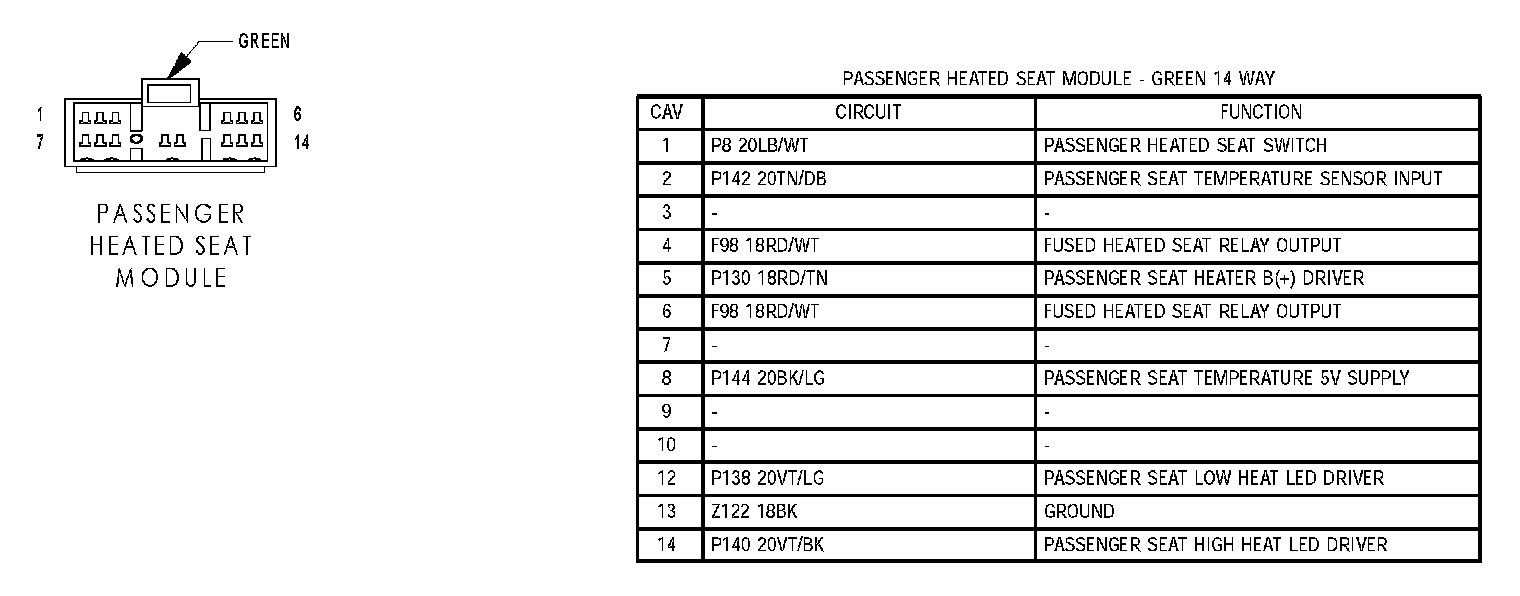

Passenger Heated Seat Module:
