PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

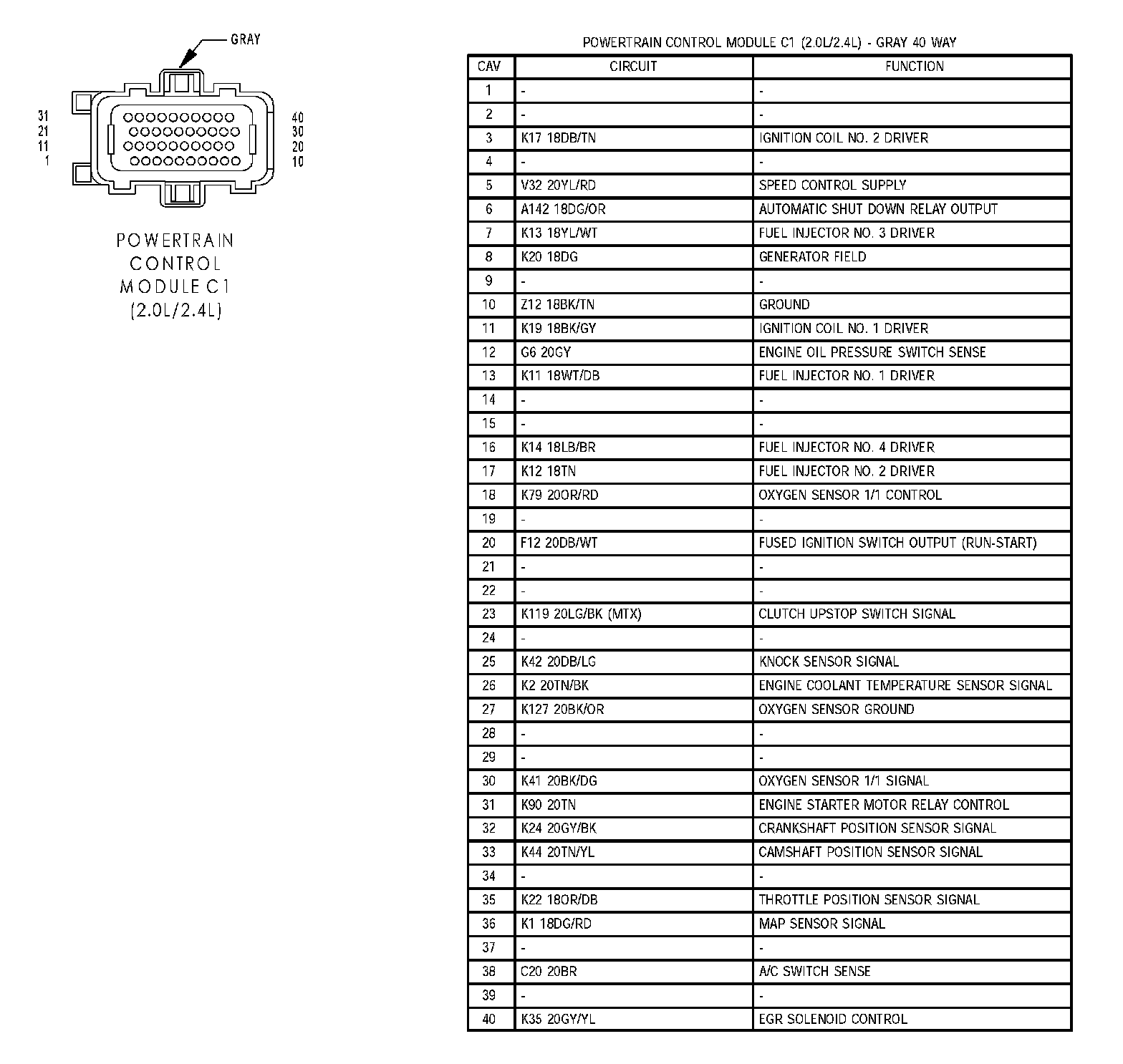

Powertrain Control Module C1 (2.0L/2.4L):

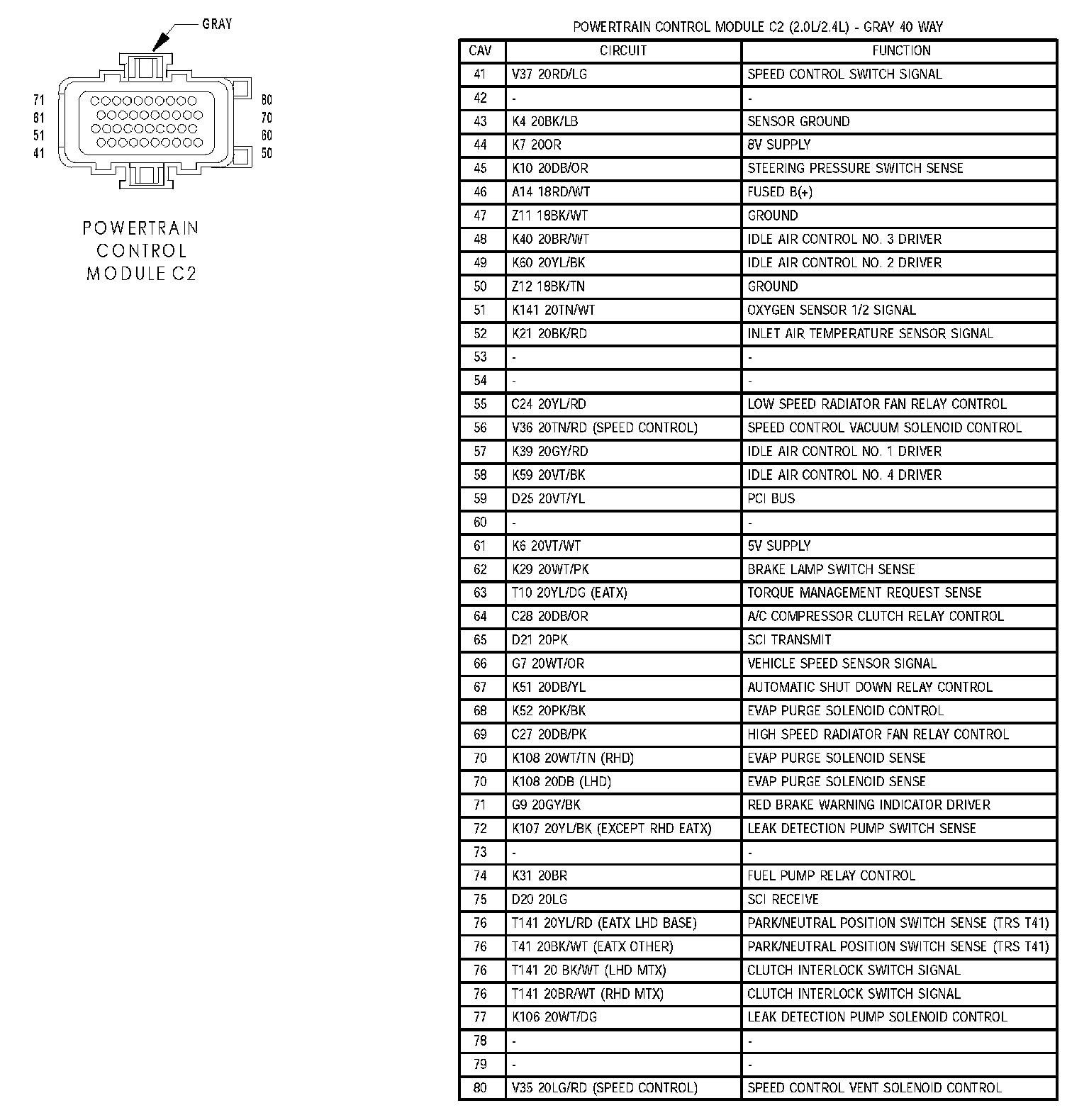

Powertrain Control Module C2 (2.0/2.4L):
