Home >> Chrysler >> 2002 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

Fuse Block

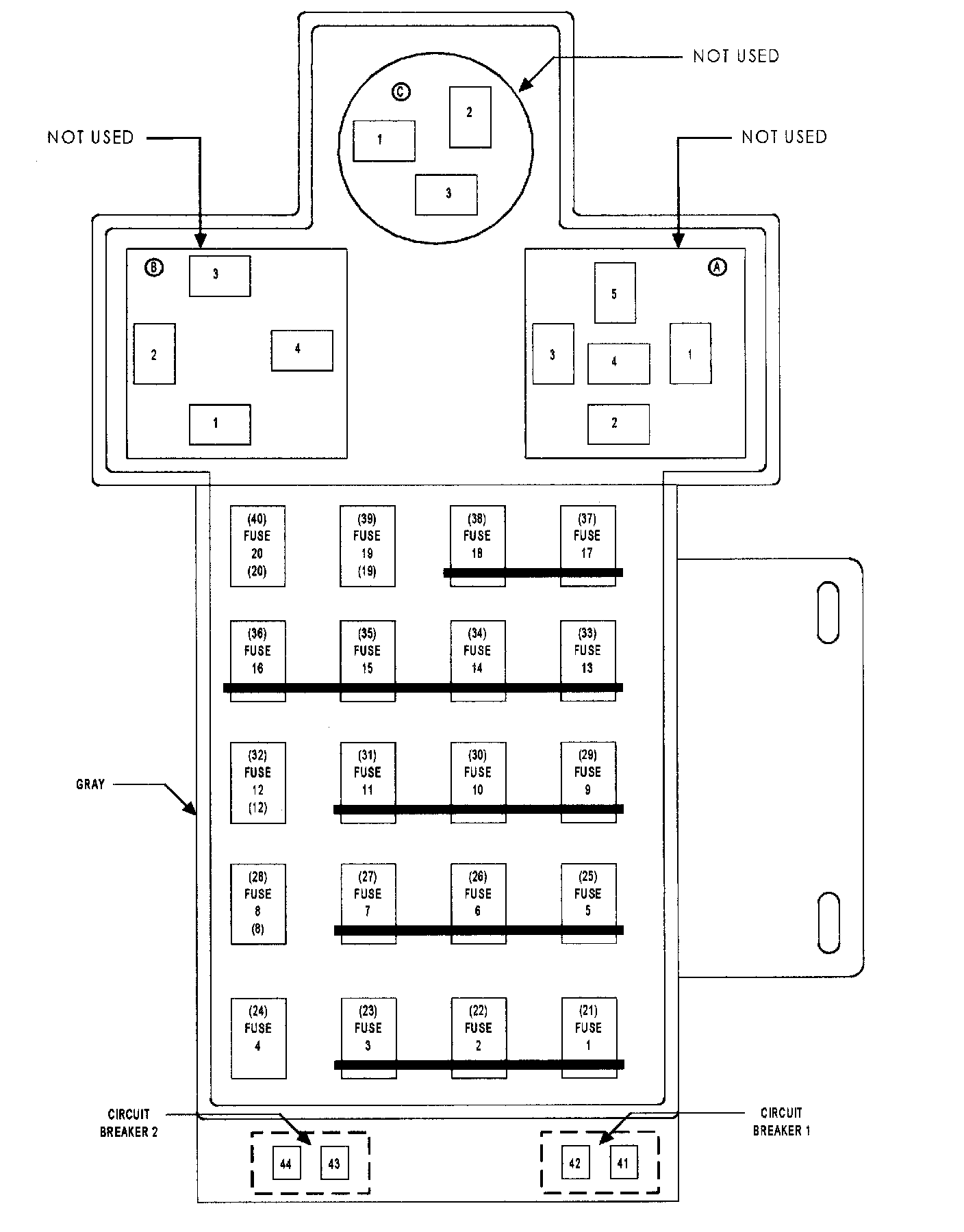

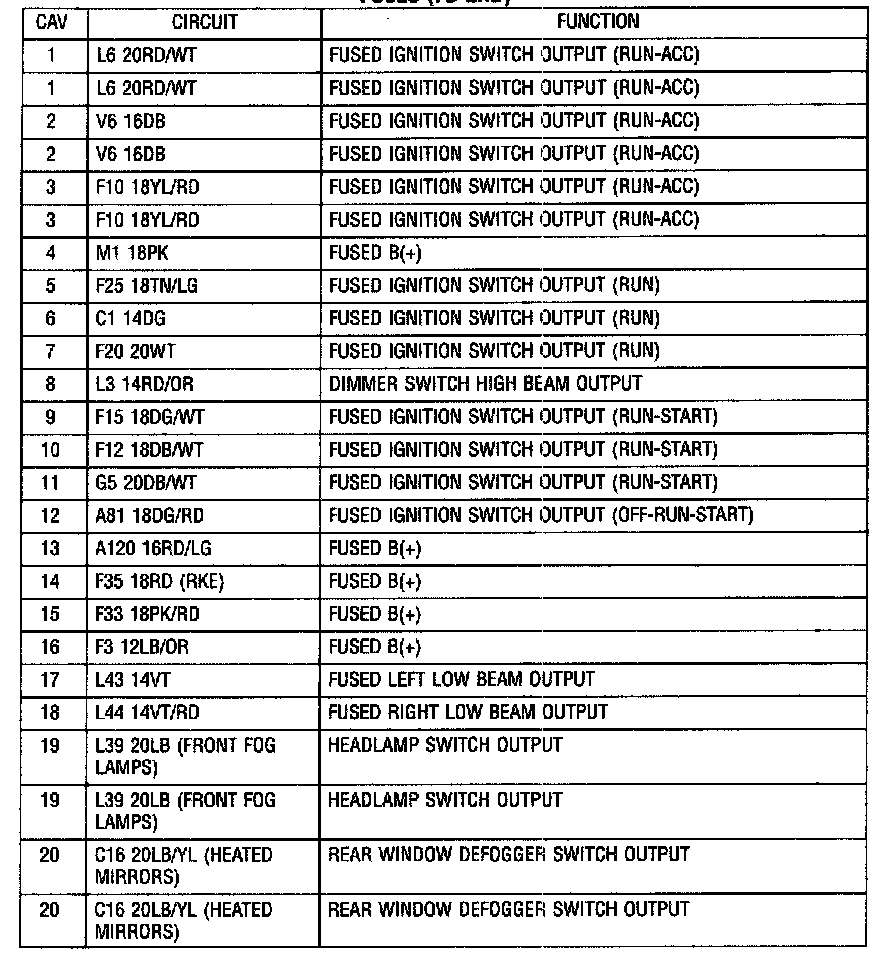

Fuse Block LHD





Part 1 of 2





Part 2 of 2

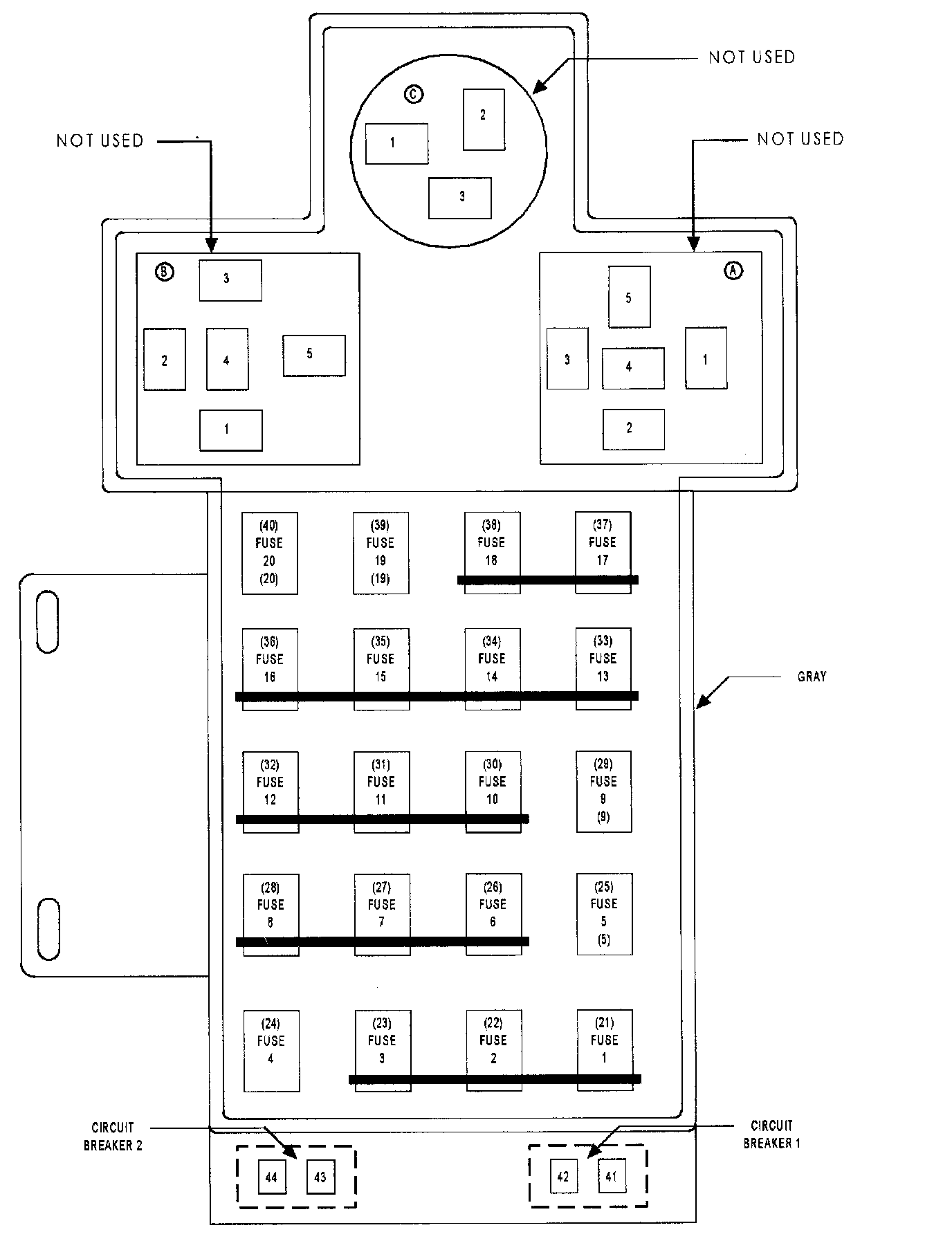

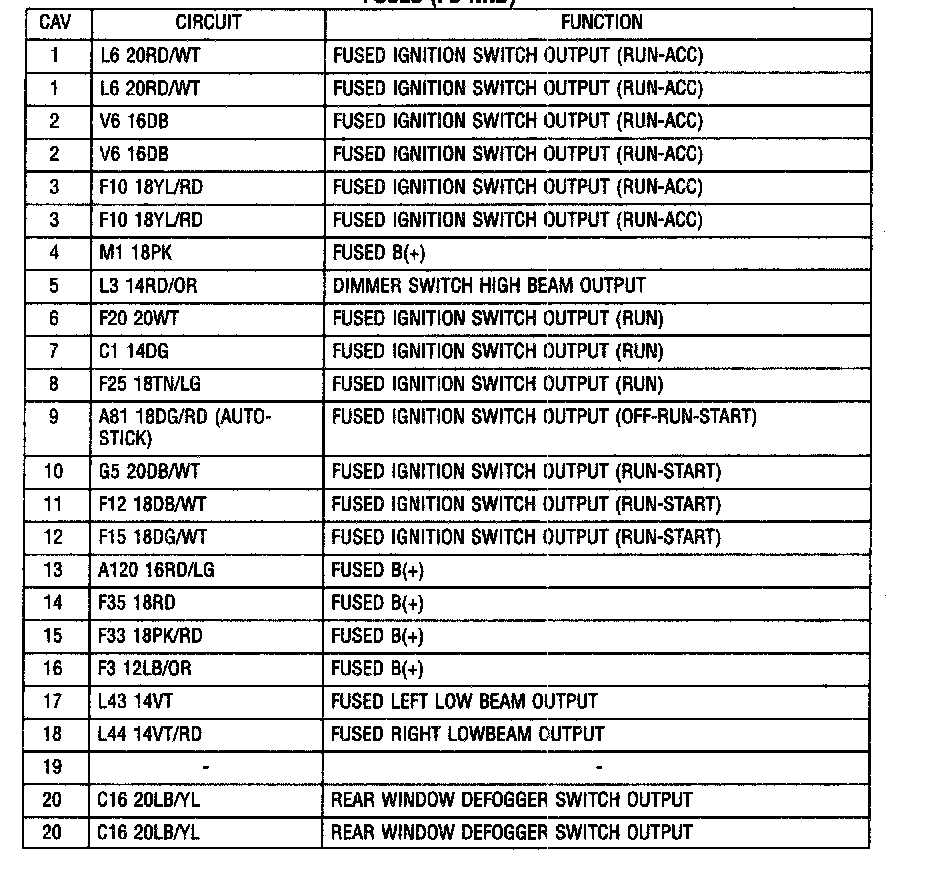

Fuse Block RHD





Part 1 of 2





Part 2 of 2
