Wheel Speed Sensor
Wheel Speed Sensor

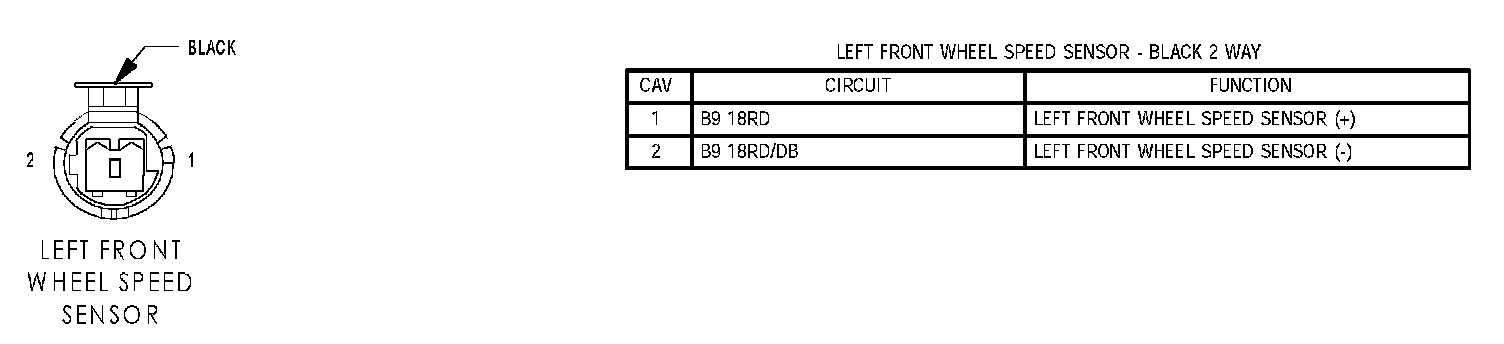

Left Front Wheel Speed Sensor:

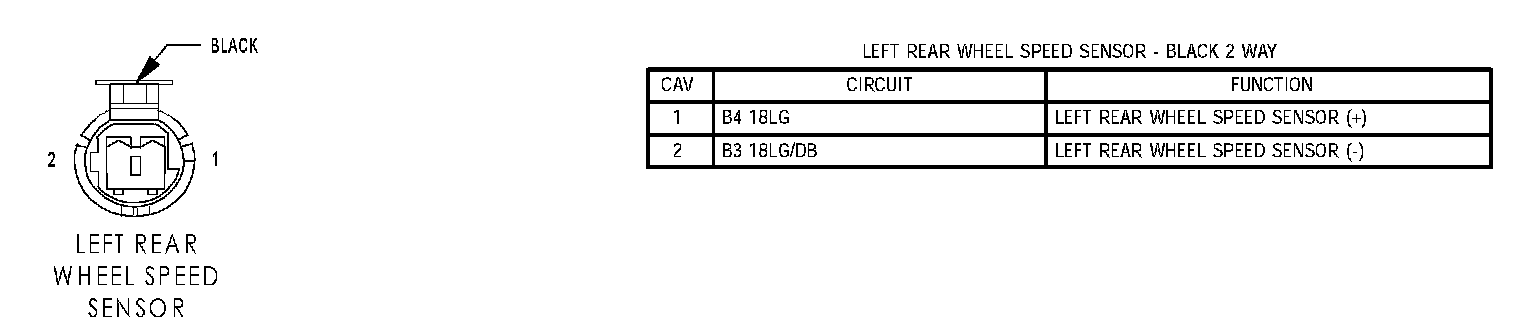

Left Rear Wheel Speed Sensor:

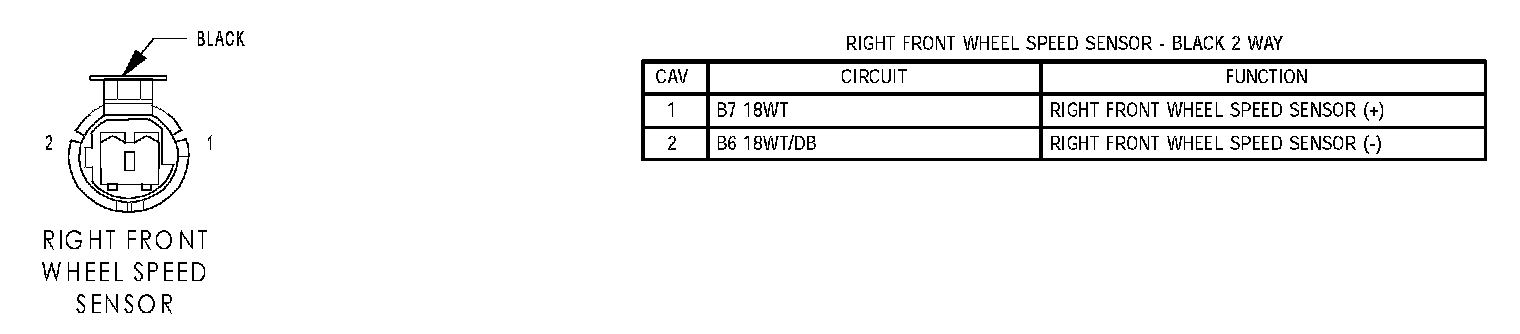

Right Front Wheel Speed Sensor:

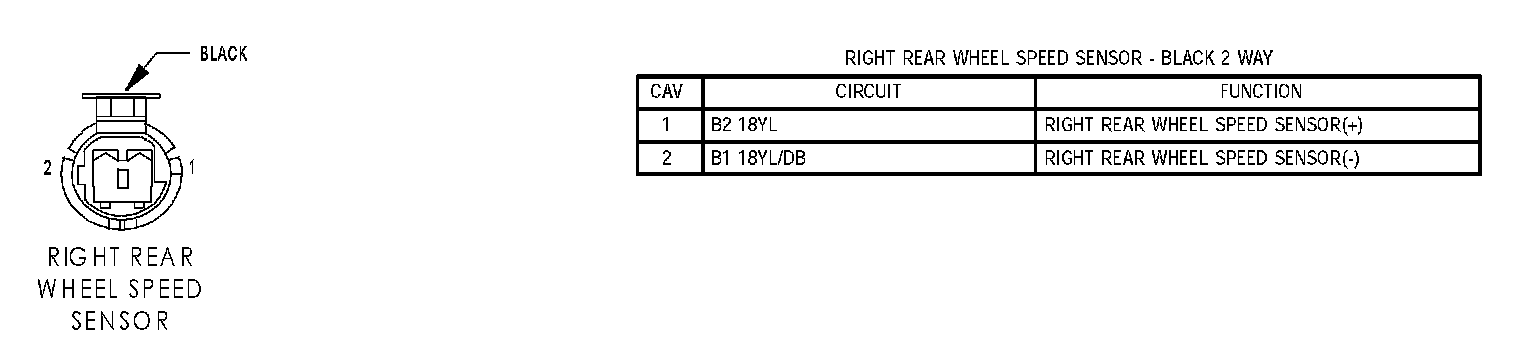

Right Rear Wheel Speed Sensor:
