Chrysler
>>
2002
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Control Module
Power Mirror Control Module

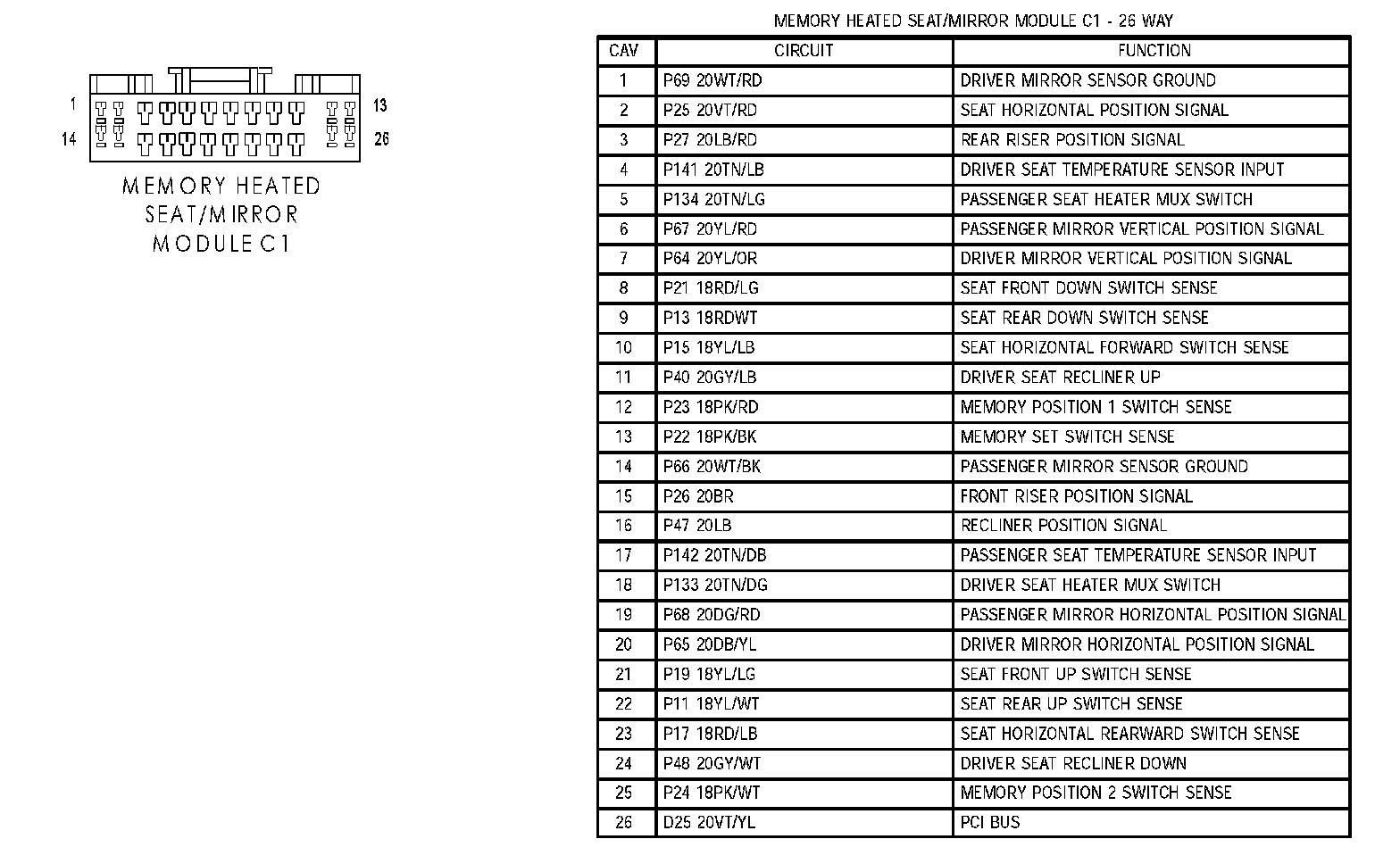

Memory Heated Seat/Mirror Module C1:

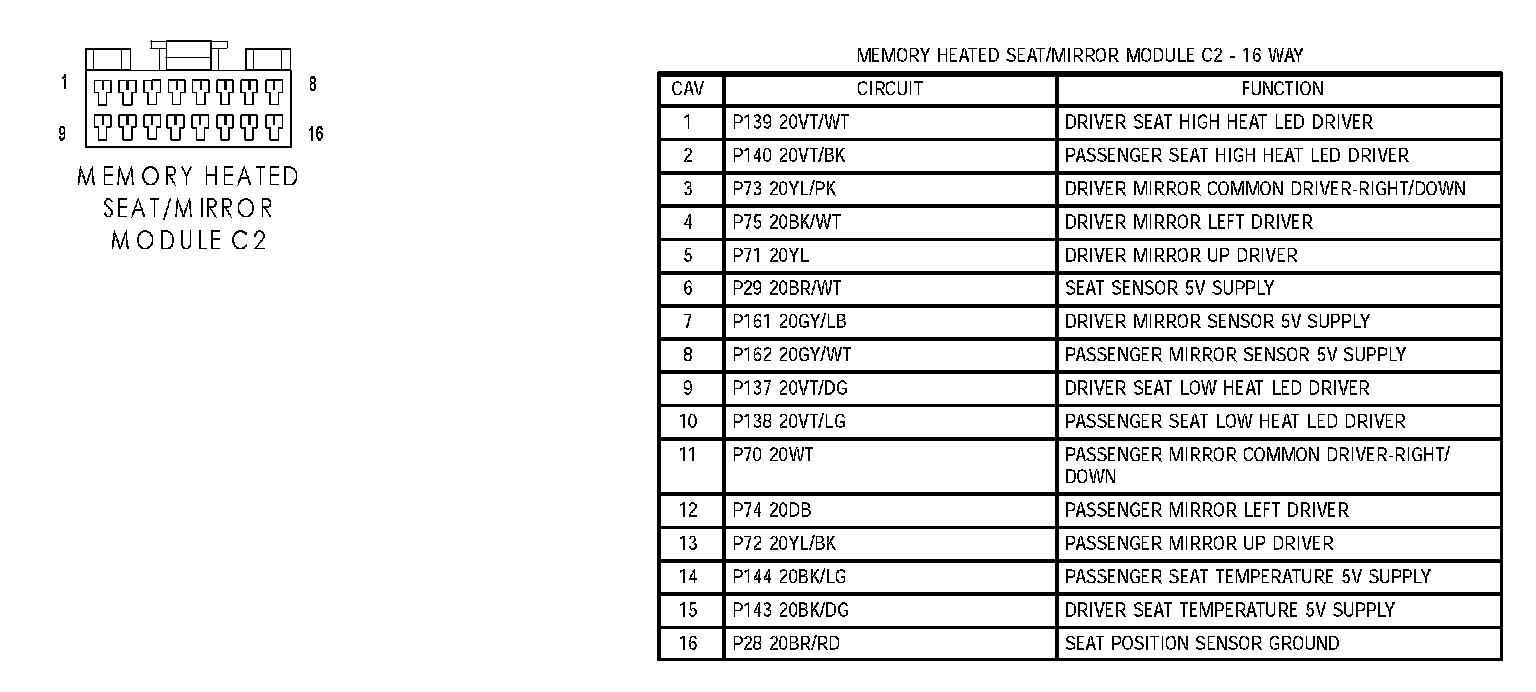

Memory Heated Seat/Mirror Module C2:

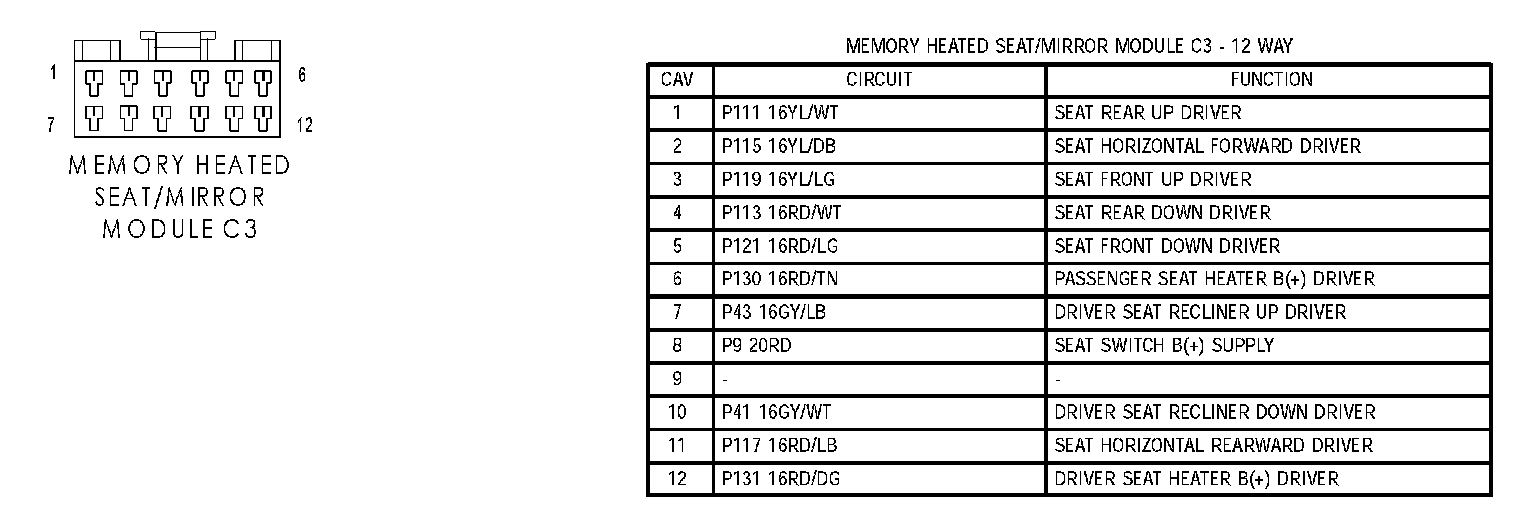

Memory Heated Seat/Mirror Module C3:

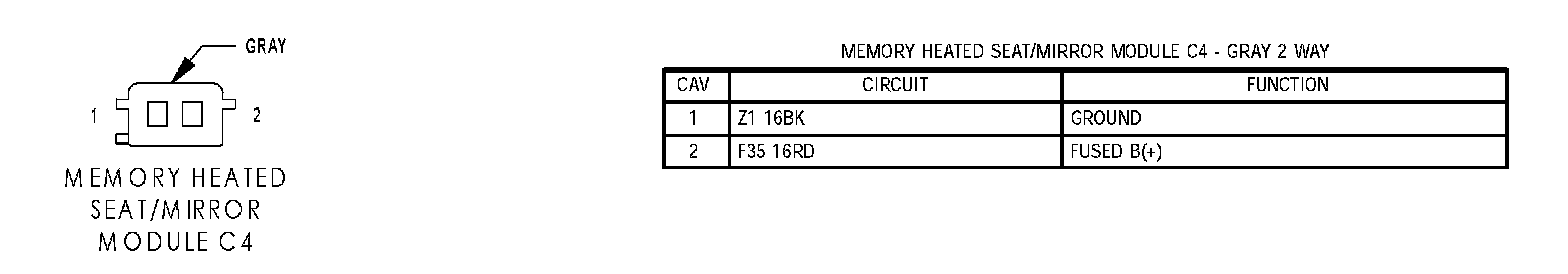

Memory Heated Seat/Mirror Module C4:
