Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

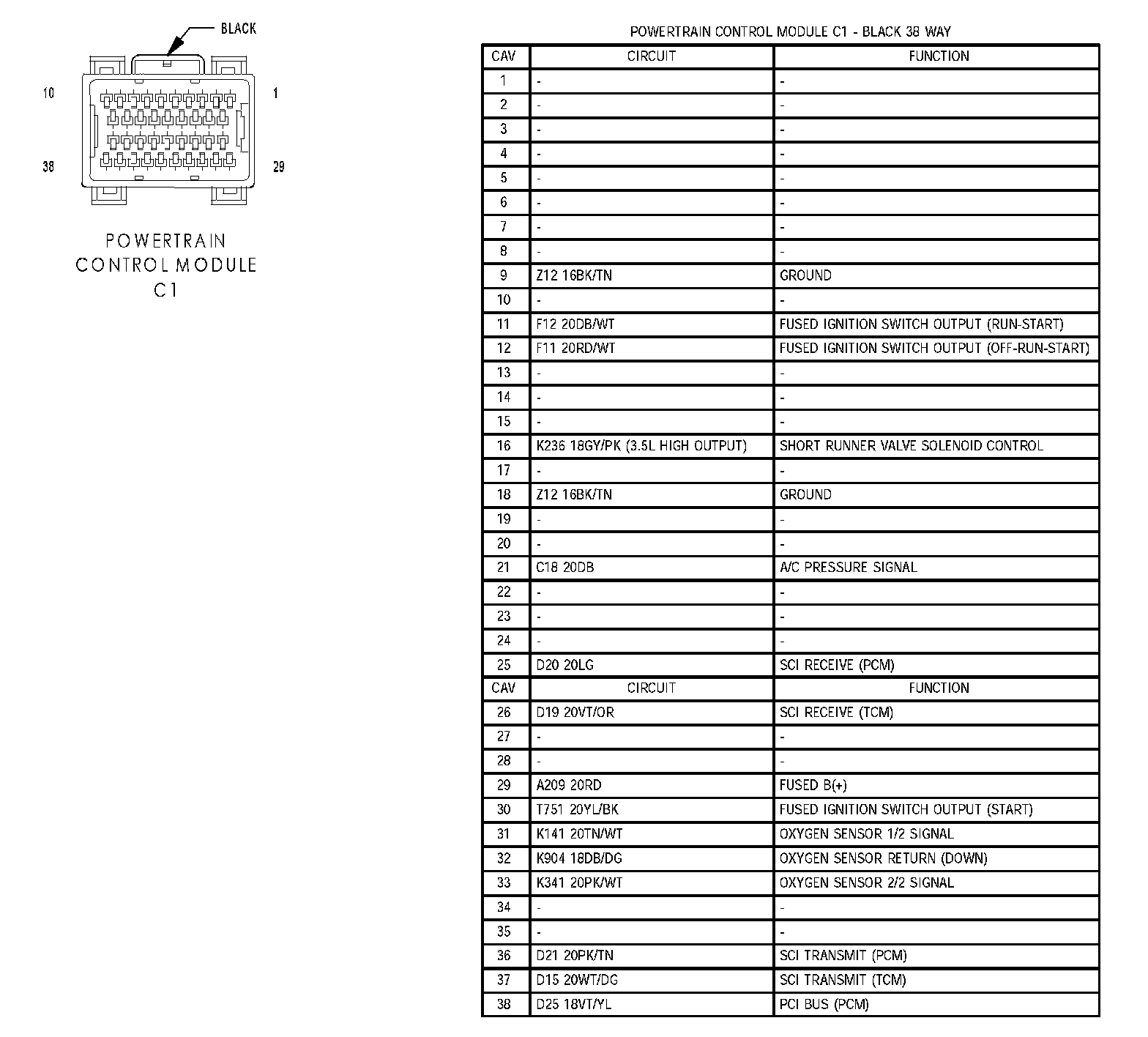

Powertrain Control Module C1:

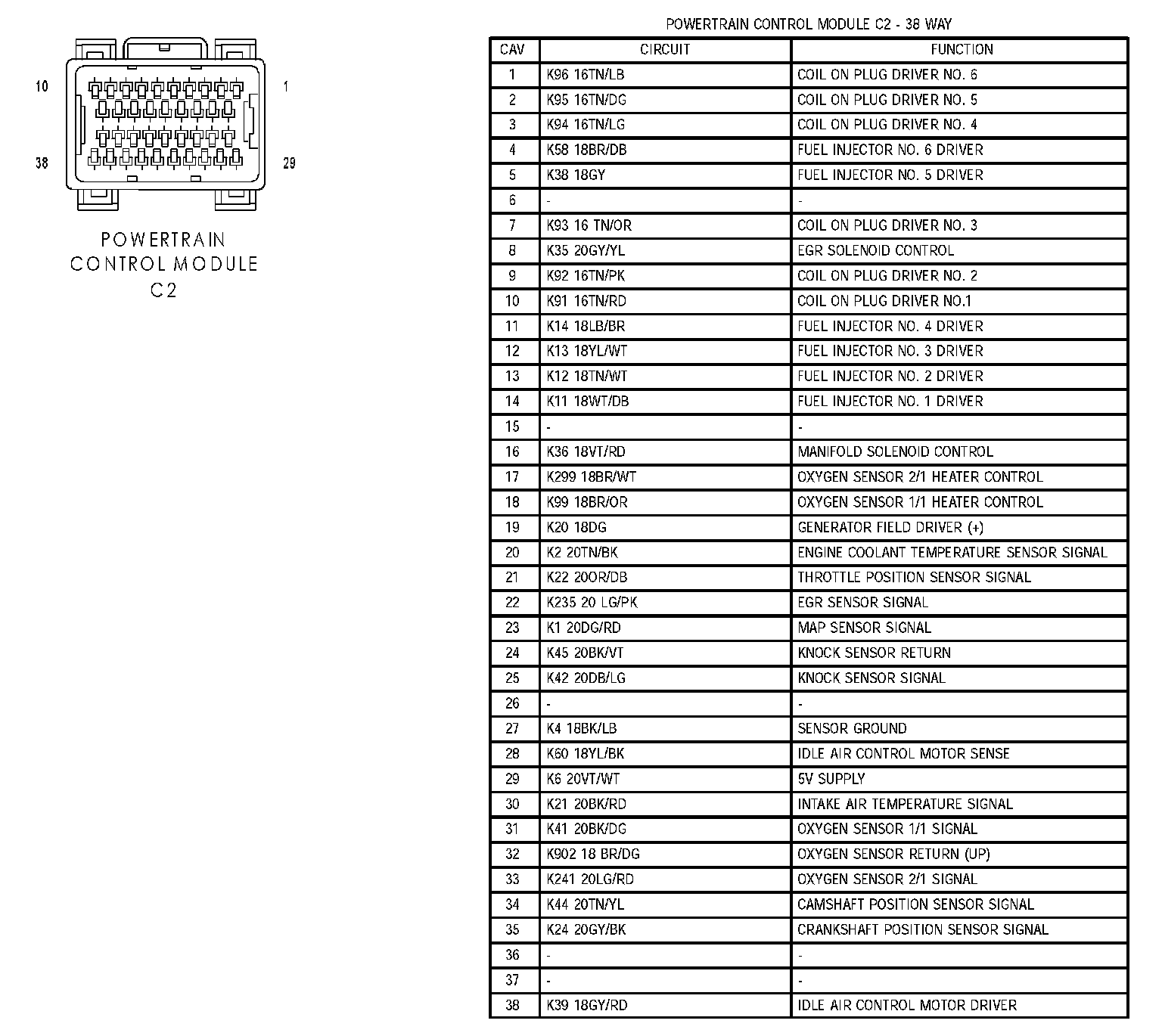

Powertrain Control Module C2:

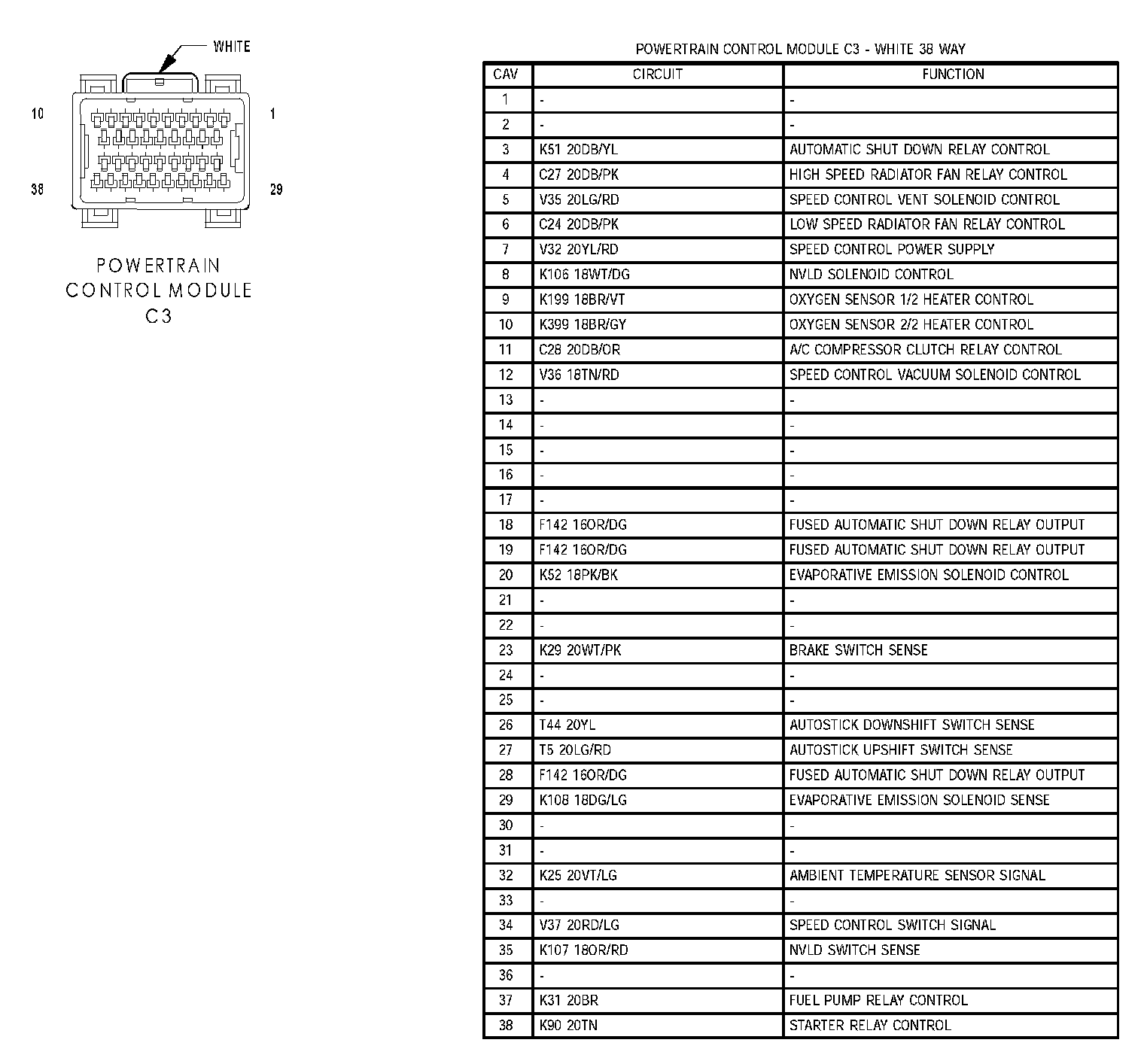

Powertrain Control Module C3:

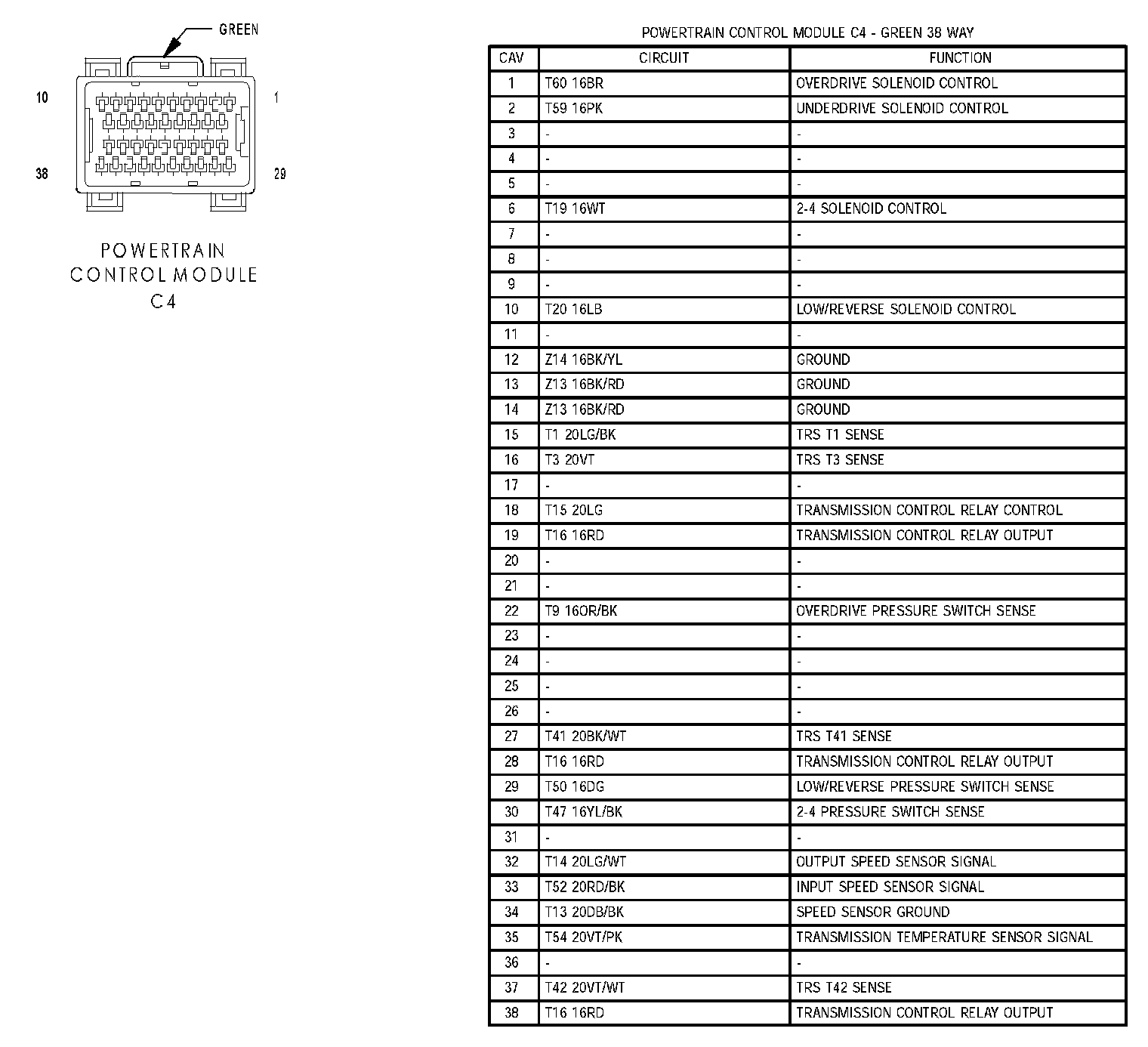

Powertrain Control Module C4:
