Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Connector Views >> BCM Connectors

BCM Connectors

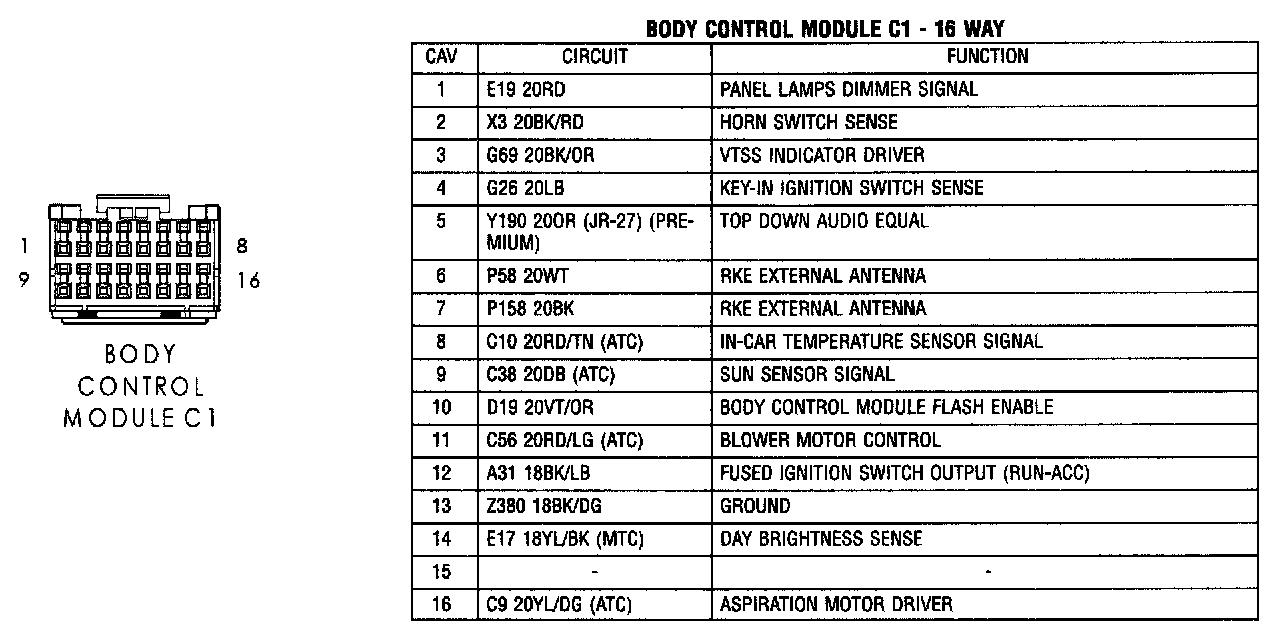

Body Control Module C1:

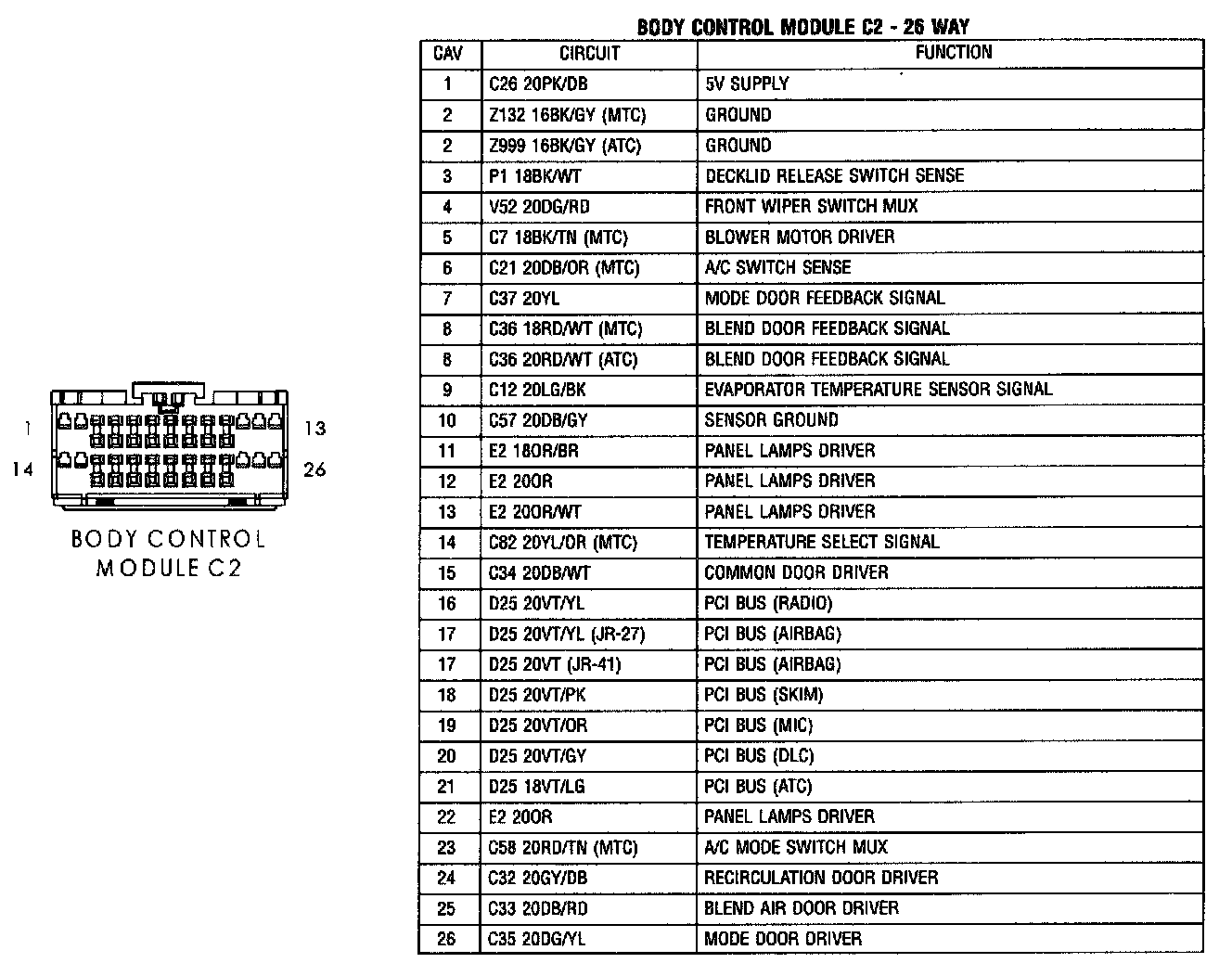

Body Control Module C2:




Body Control Module C3:

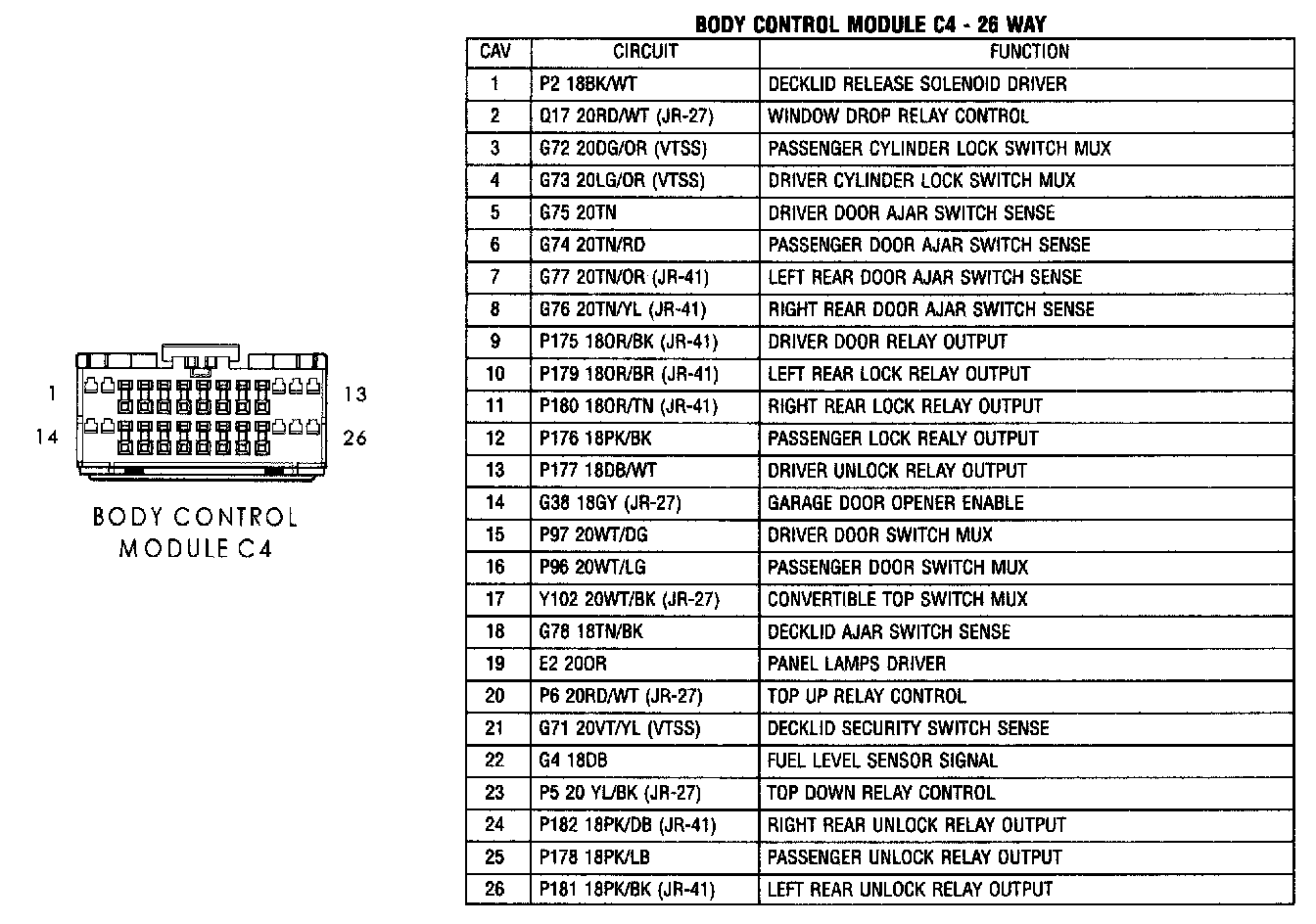

Body Control Module C4:
