Fuel Level Sensor: Locations

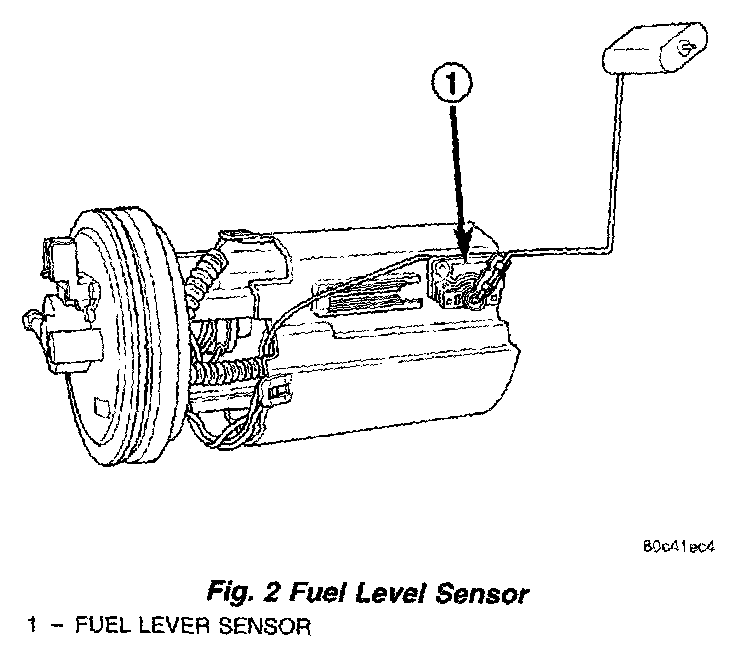

Fig.2 Fuel Level Sensor:




The level sensor is attached to the side of the fuel pump module.
