Home >> Chrysler >> 2001 >> PT Cruiser L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

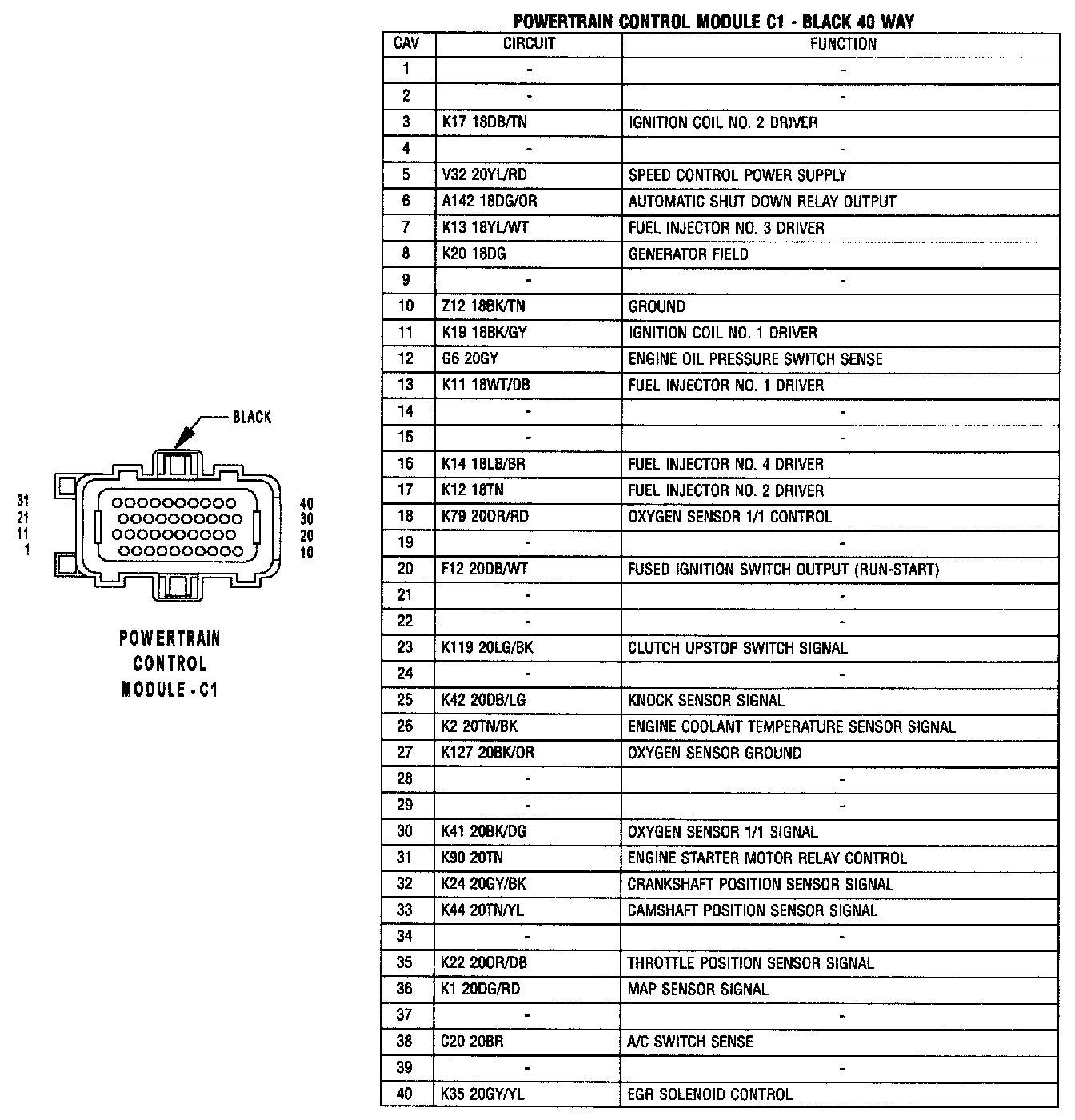

Powertrain Control Module - C1:

Powertrain Control Module - C2:

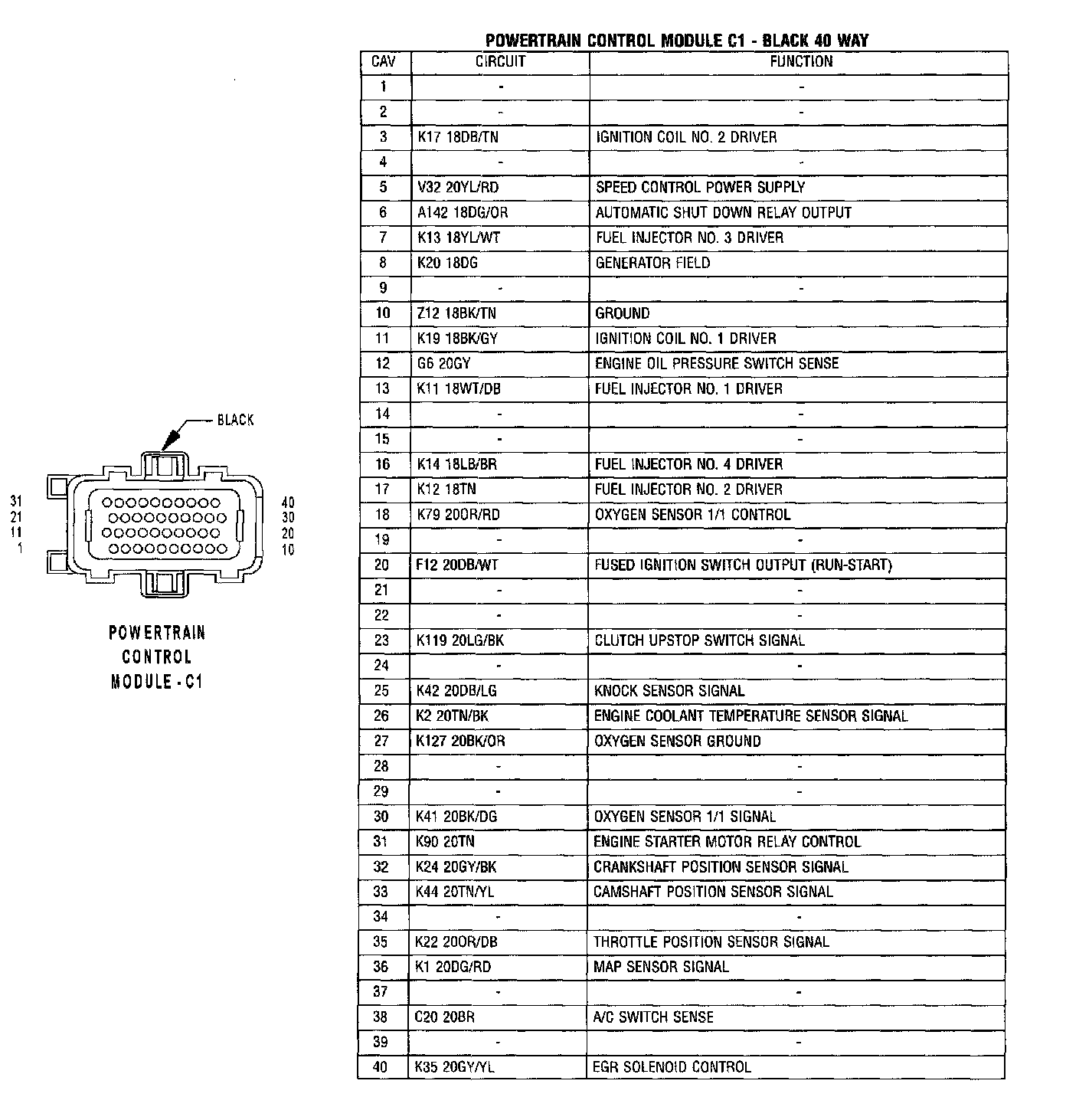

Powertrain Control Module C1:

Powertrain Control Module C2:
