Main Relay (Computer/Fuel System)
>>
Locations
Main Relay (Computer/Fuel System): Locations

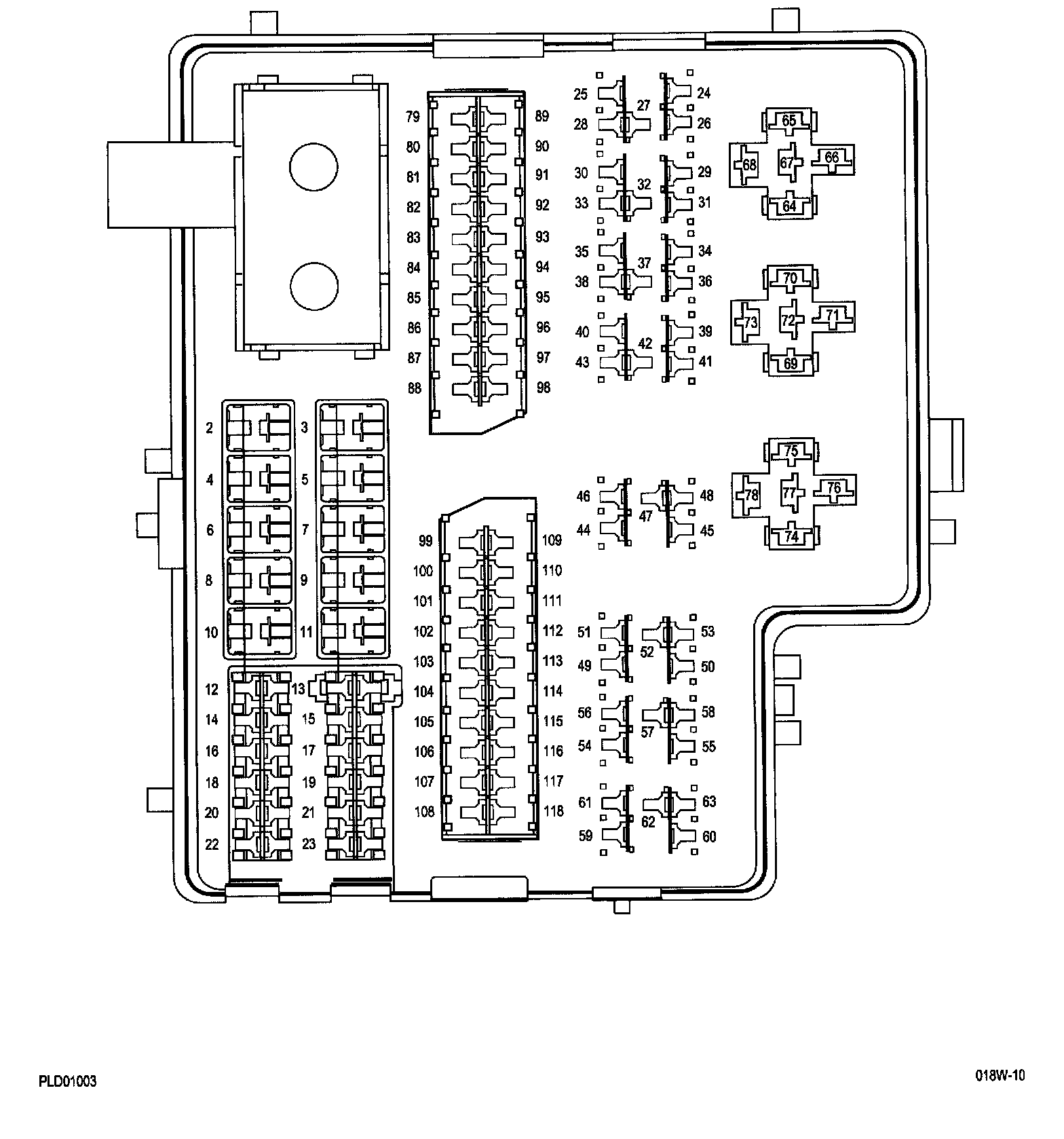

8w-10-2:

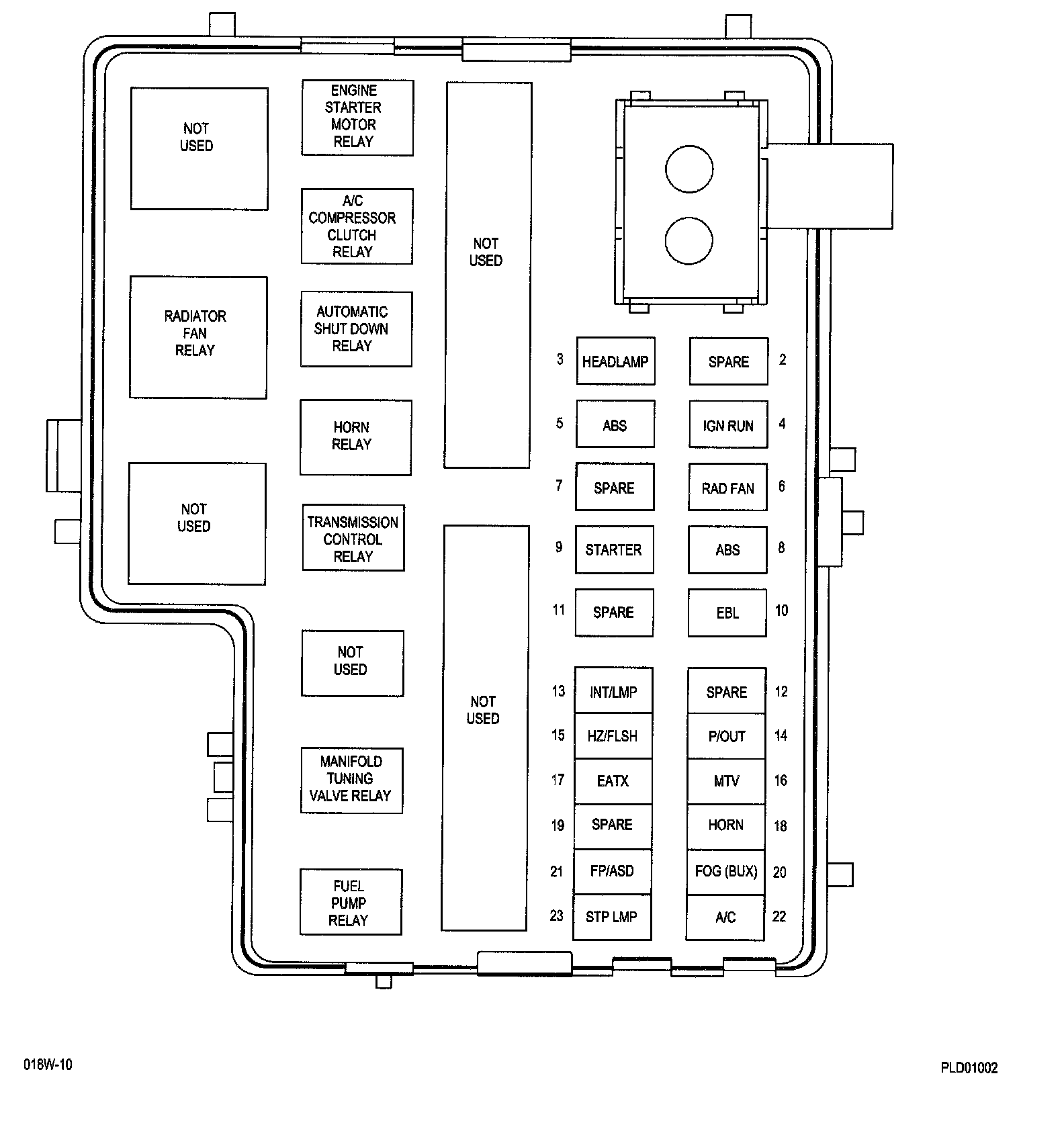

8w-10-3:

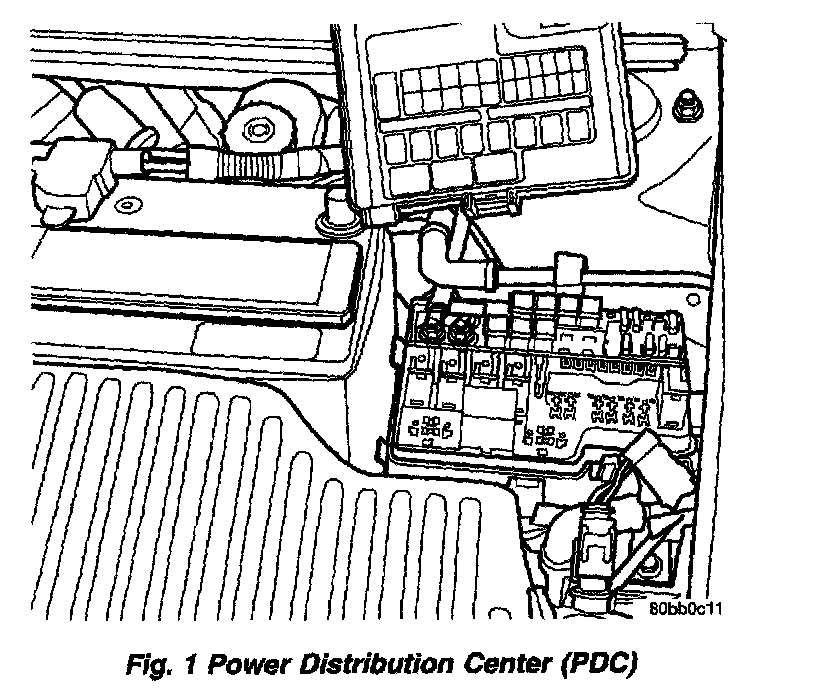

Fig.1 Power Distribution Center:
The
ASD
relay is located in the
PDC
.
