Alignment: Specifications

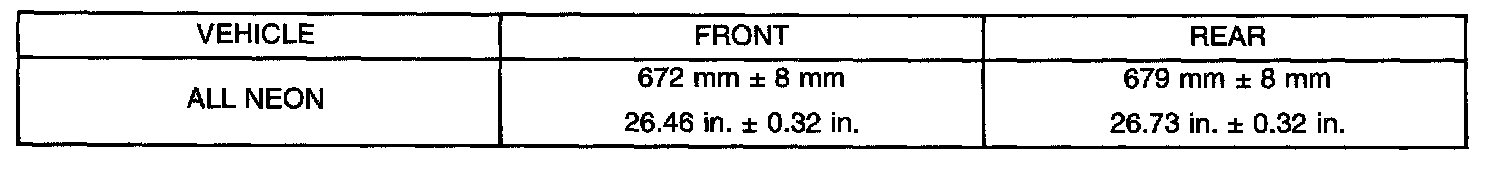

CURB HEIGHT SPECIFICATIONS

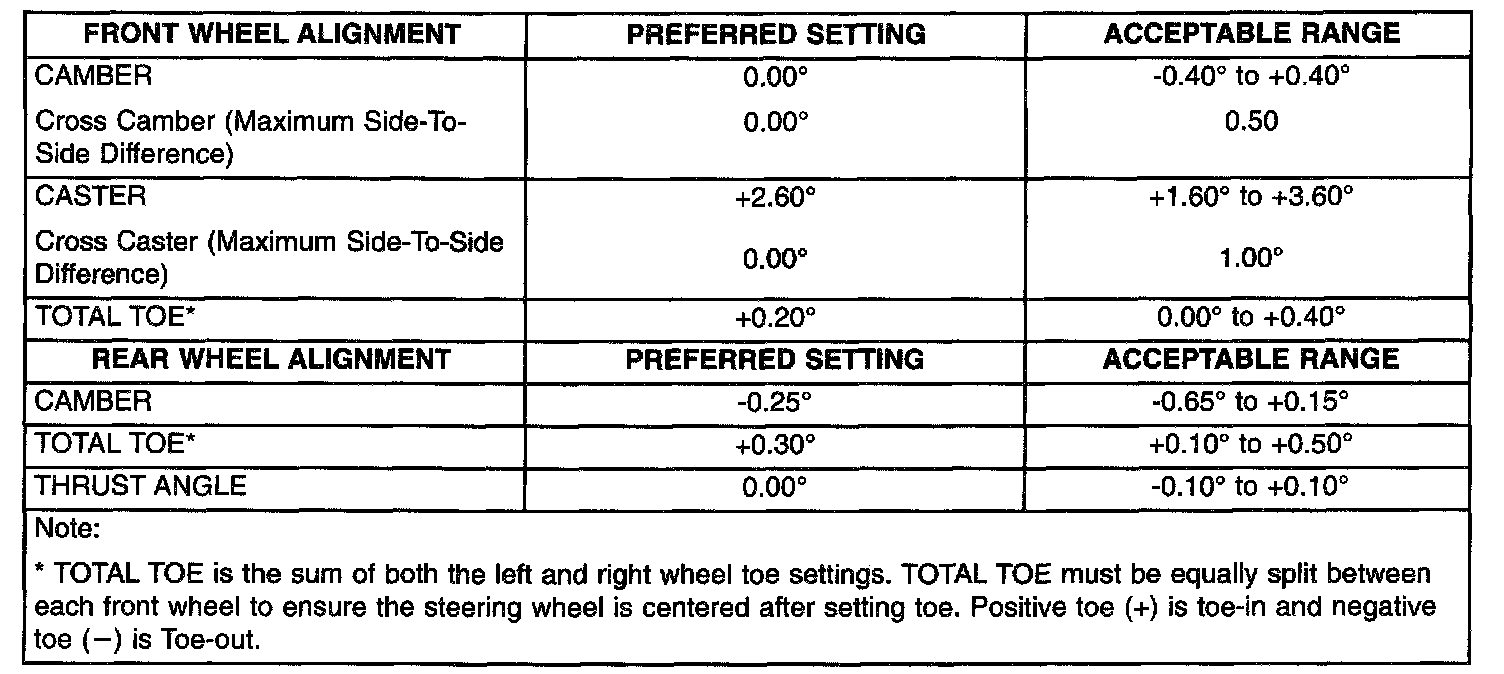

WHEEL ALIGNMENT SPECIFICATIONS

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at curb height.
