Variable Induction Control Relay
Variable Induction Control Relay

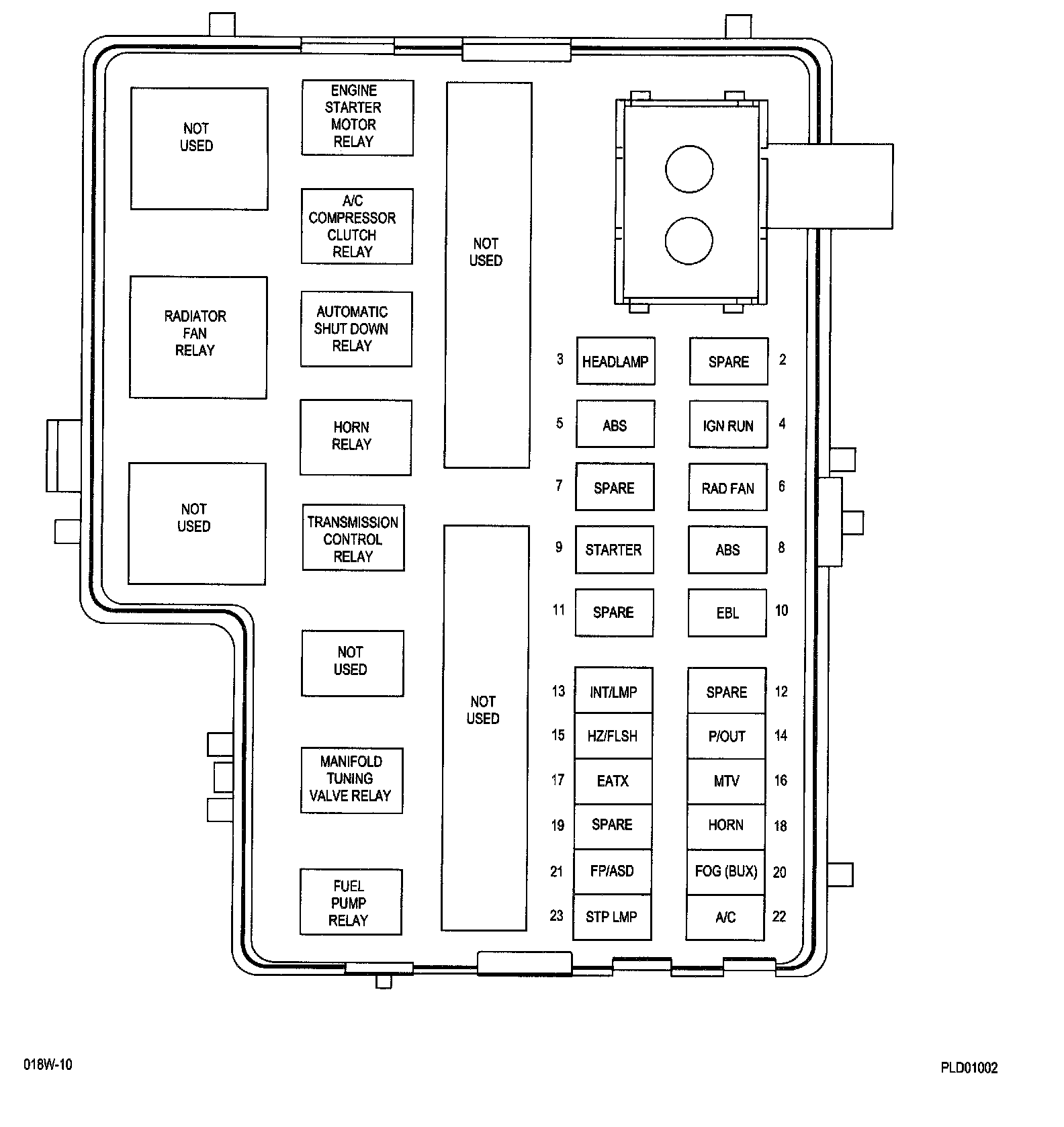

Power Distribution Center:

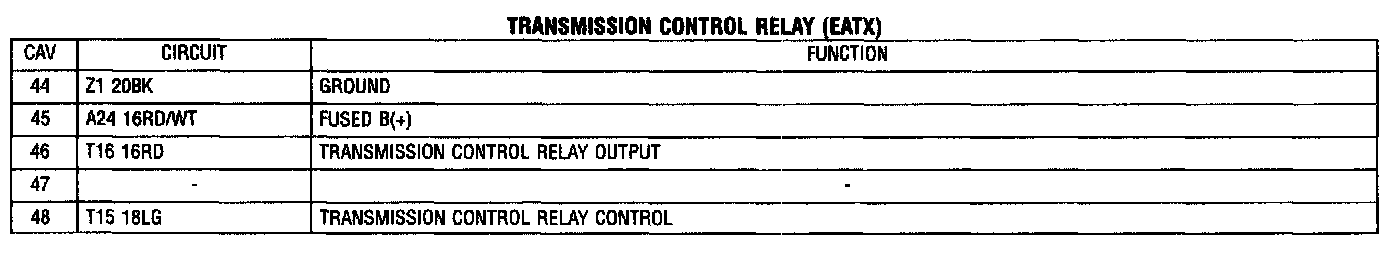

Transmission Control Relay (EATX):
