Crankshaft Position Sensor: Locations

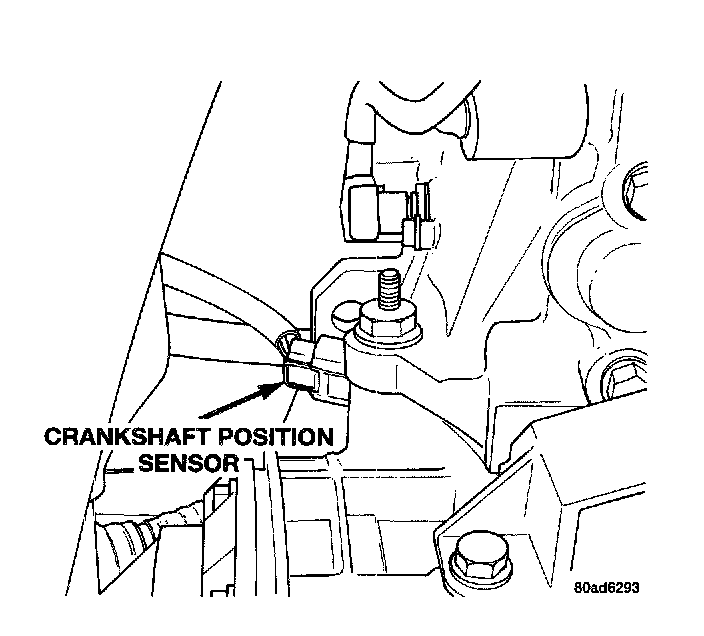

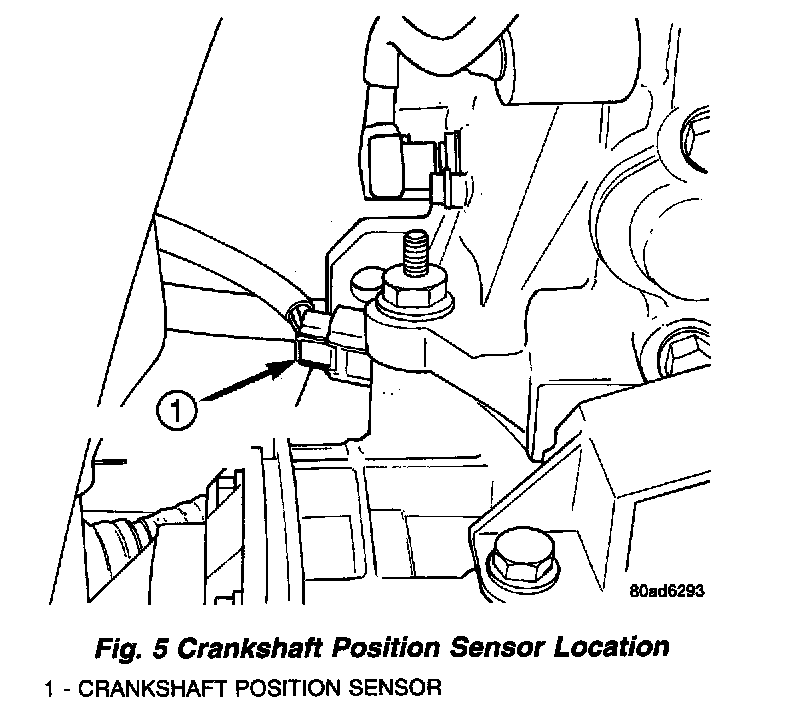

Fig. 5 Crankshaft Position Sensor Location:

The crankshaft sensor is located on the passengers side of the transmission housing, above the differential housing. The bottom of the sensor sits above the drive plate.
