lemon-mirror
:
Home
>>
Chrysler
>>
2001
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

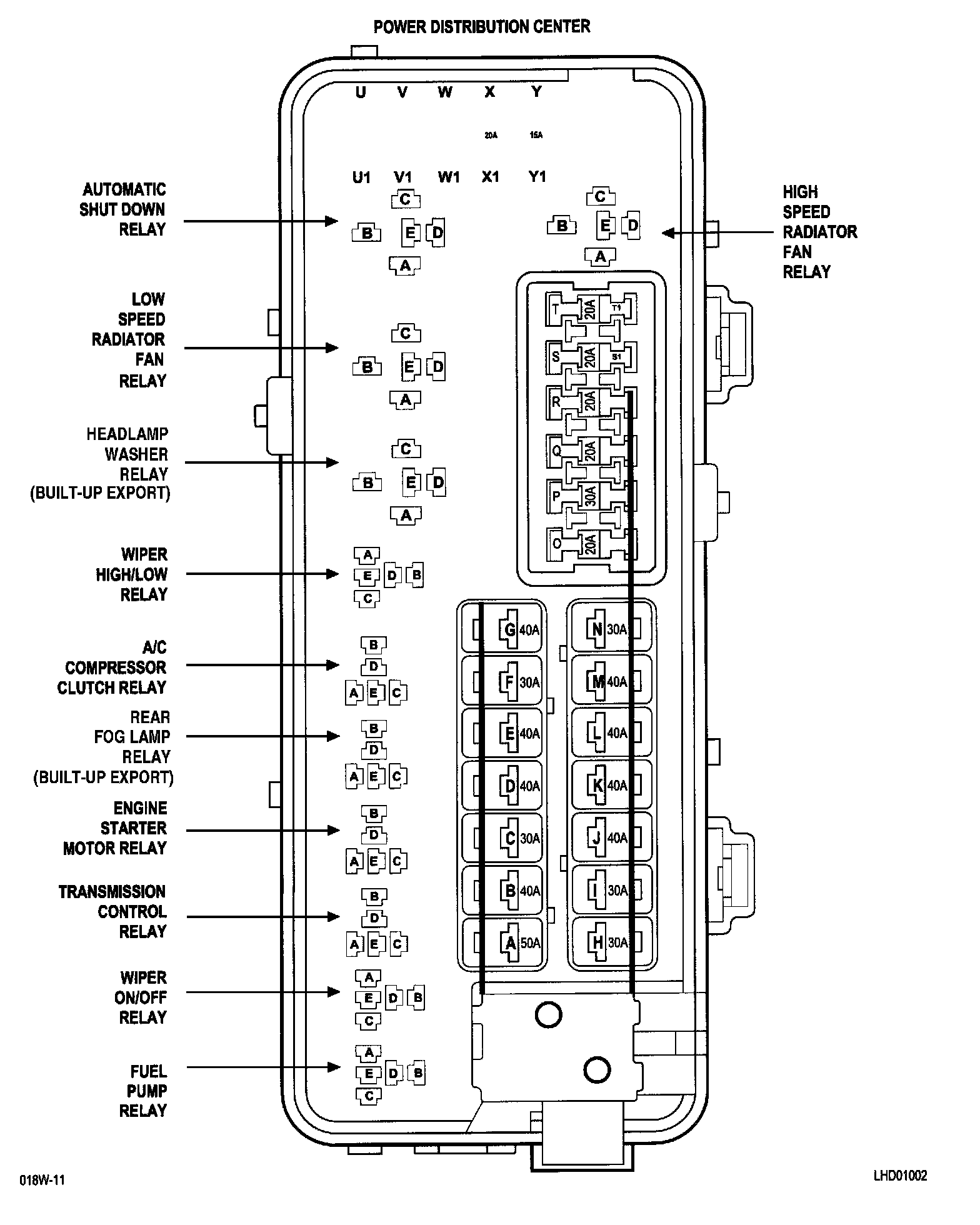

Power Distribution Module

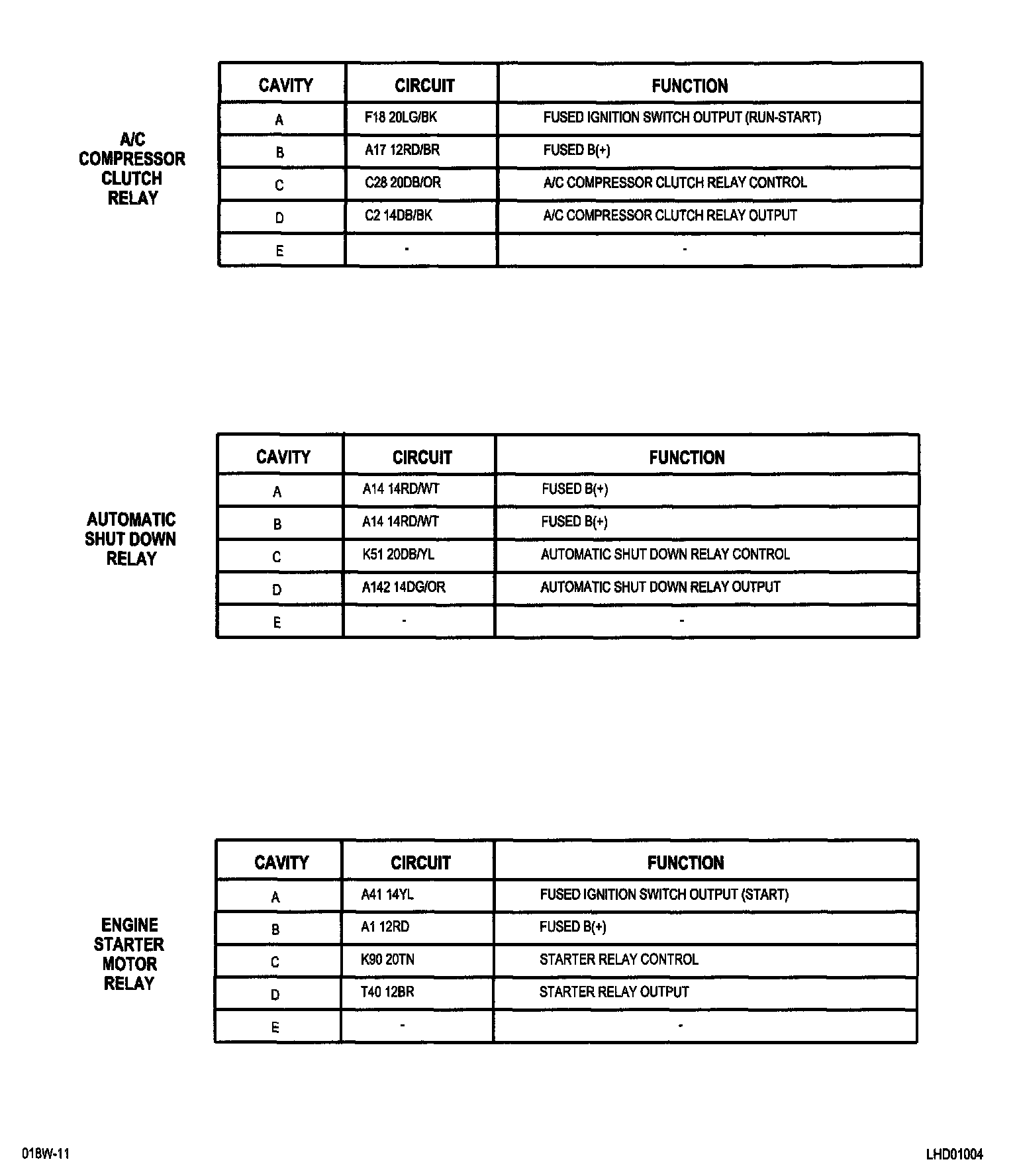

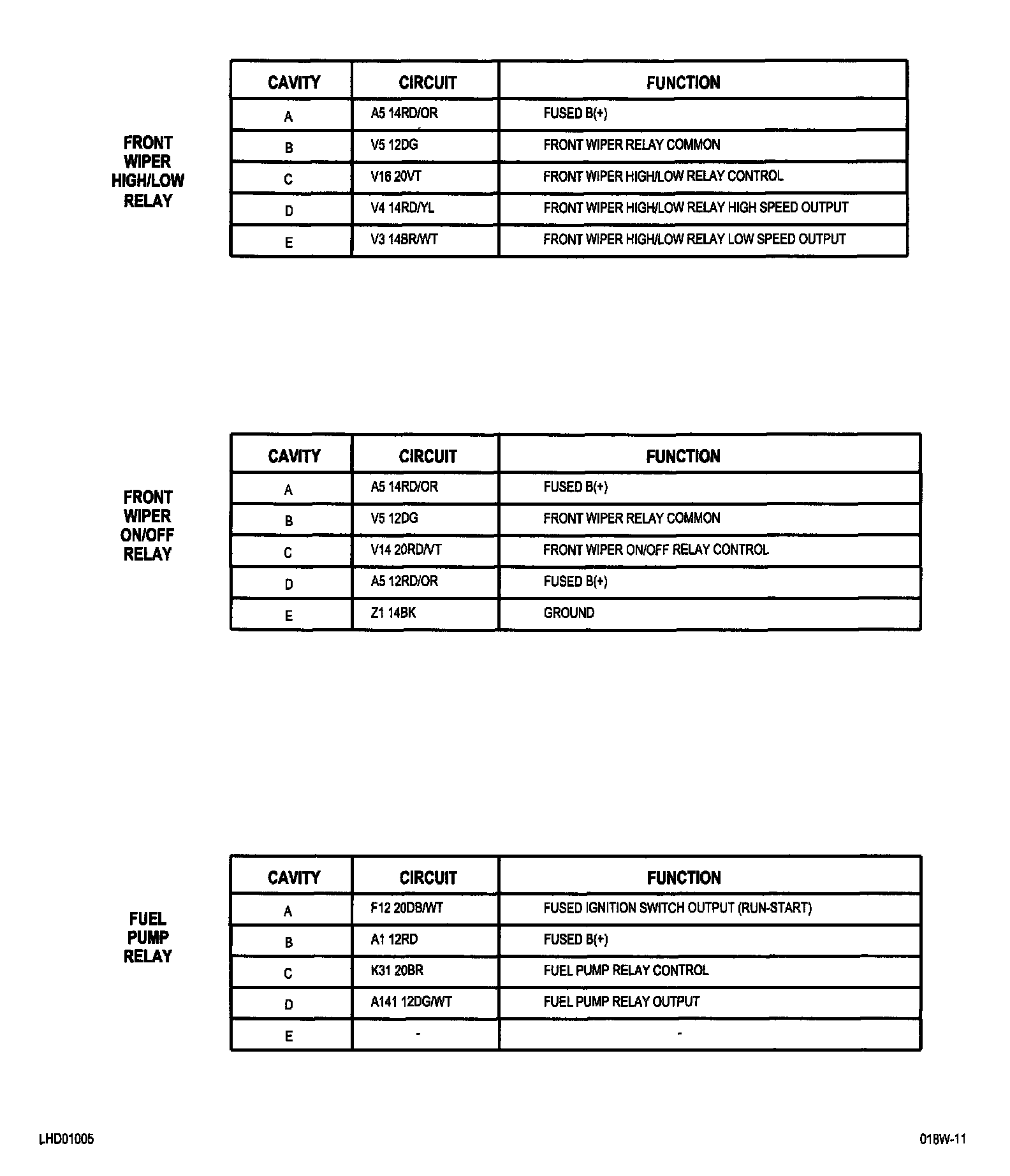

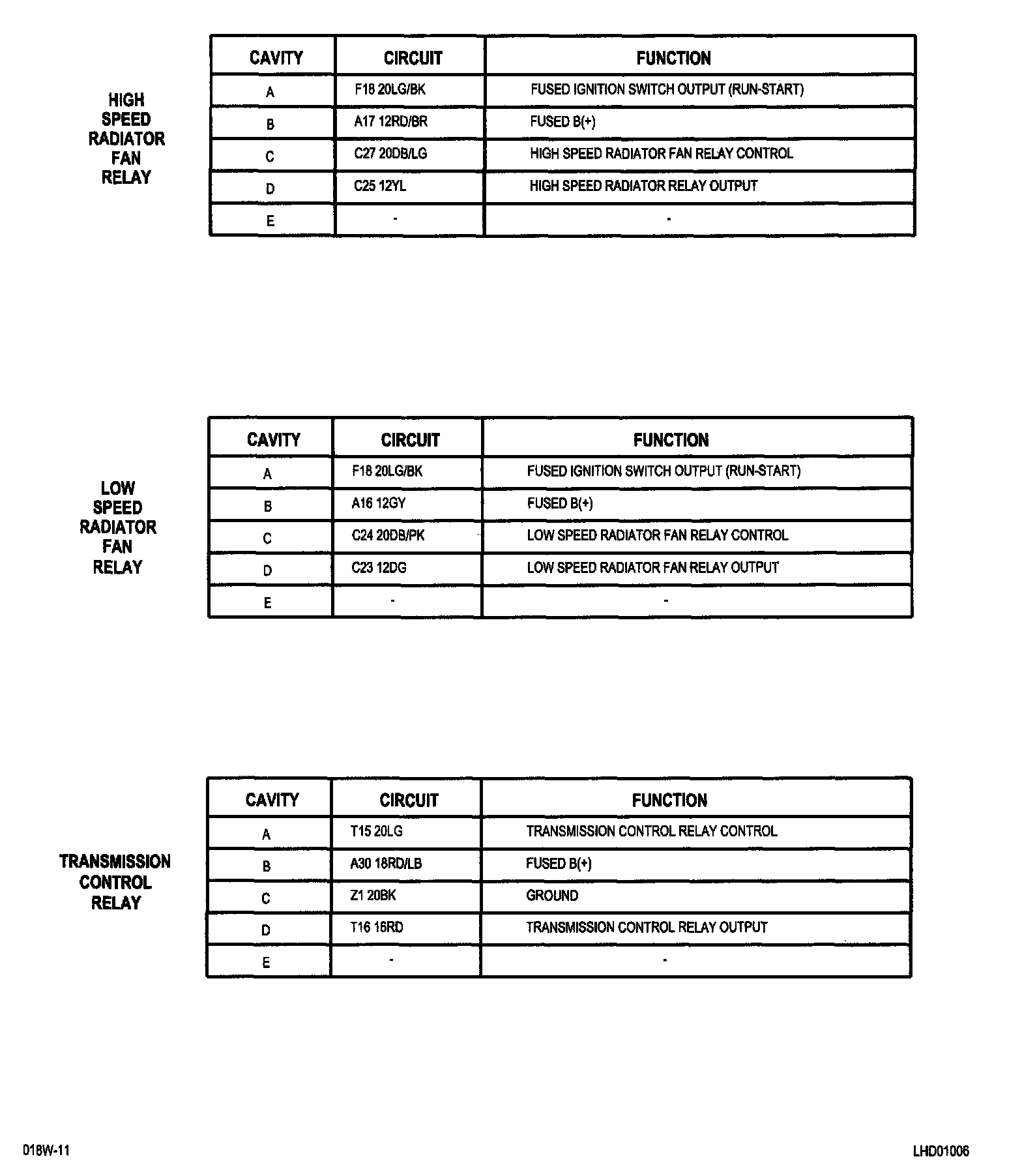

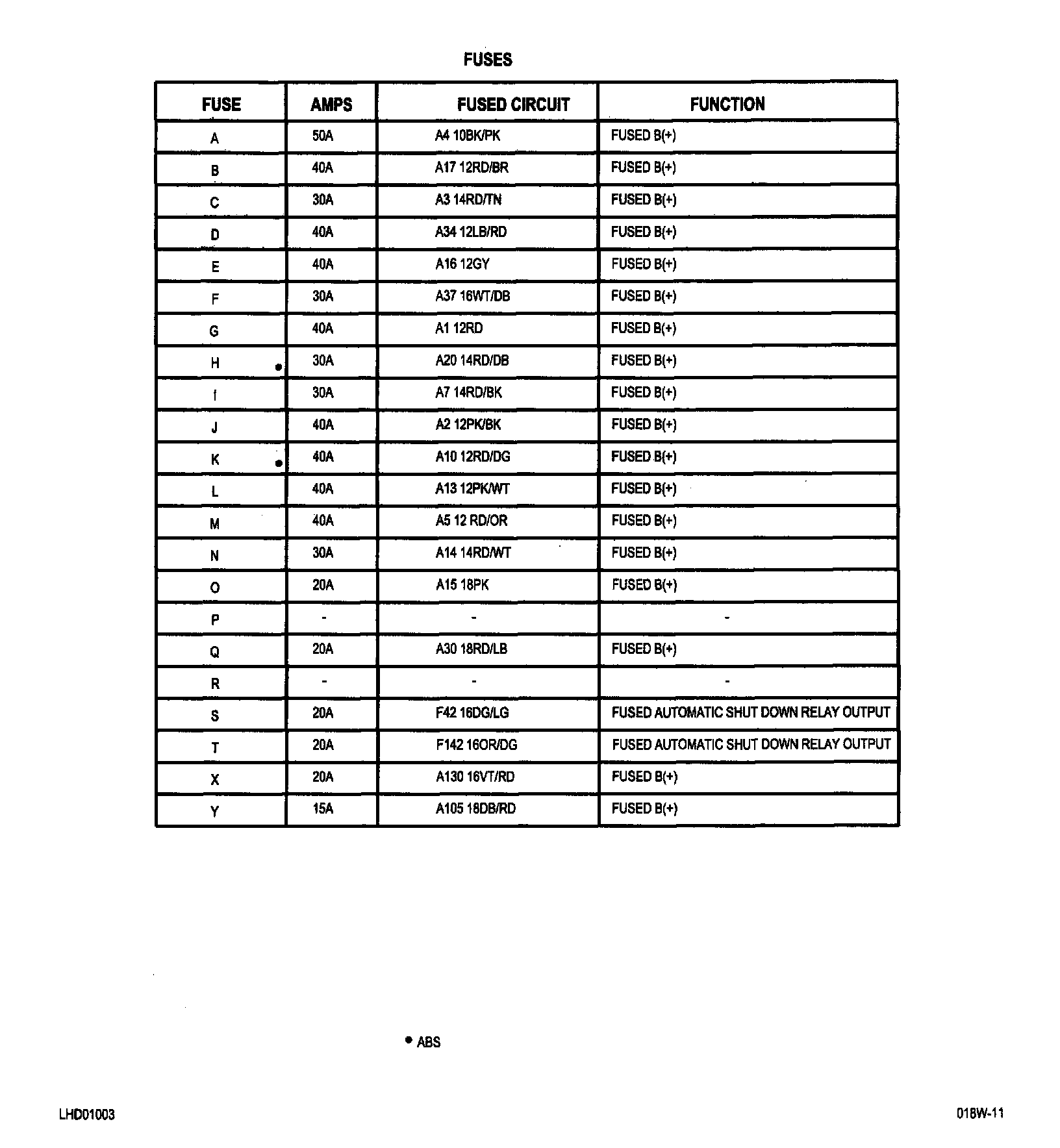

Power Distribution Module
8w-10-2:
8w-10-3:
8w-10-4:
8w-10-5:
8w-10-6:
