Chrysler
>>
2001
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse
Fuse
Junction Block:

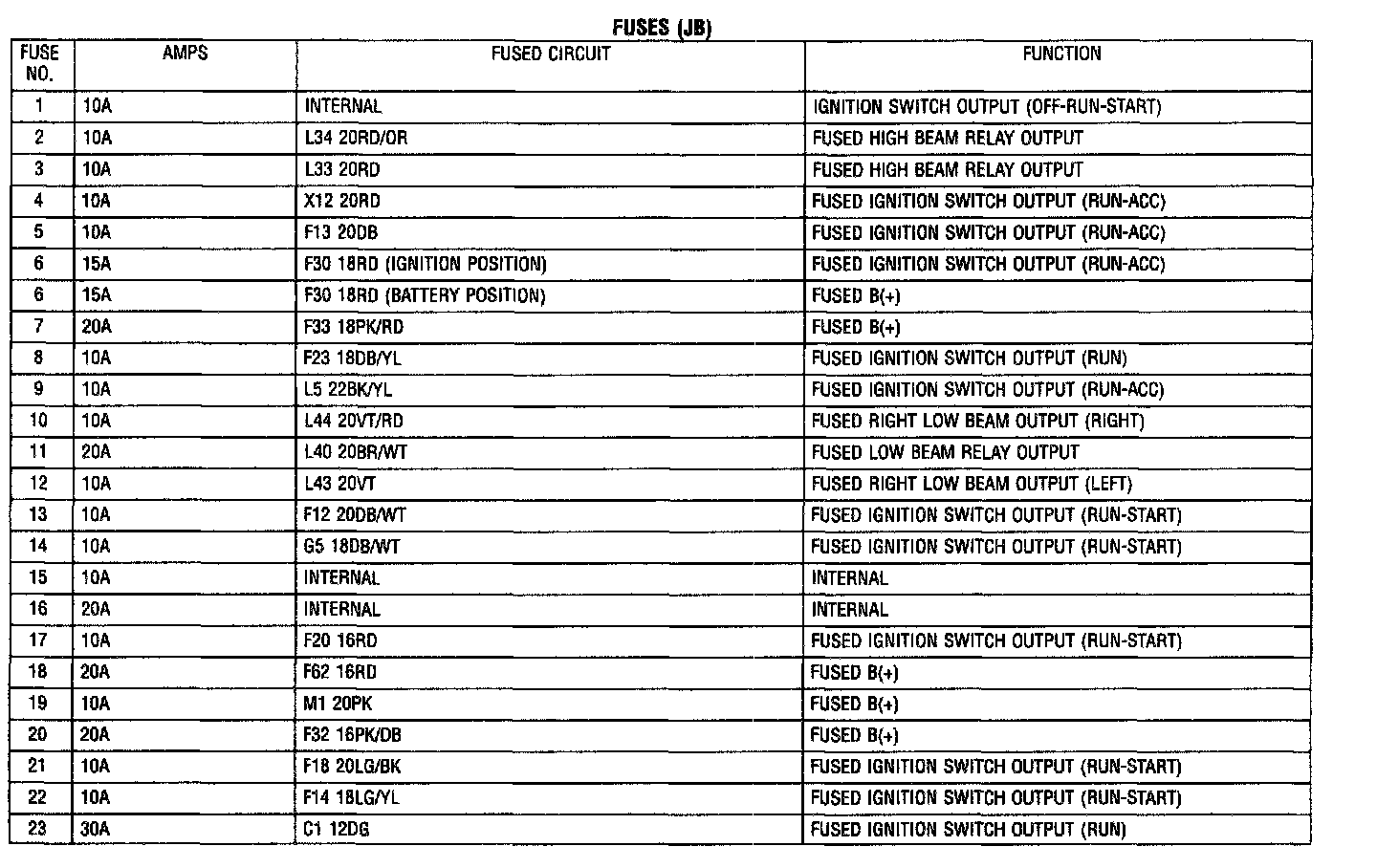

Fuses:

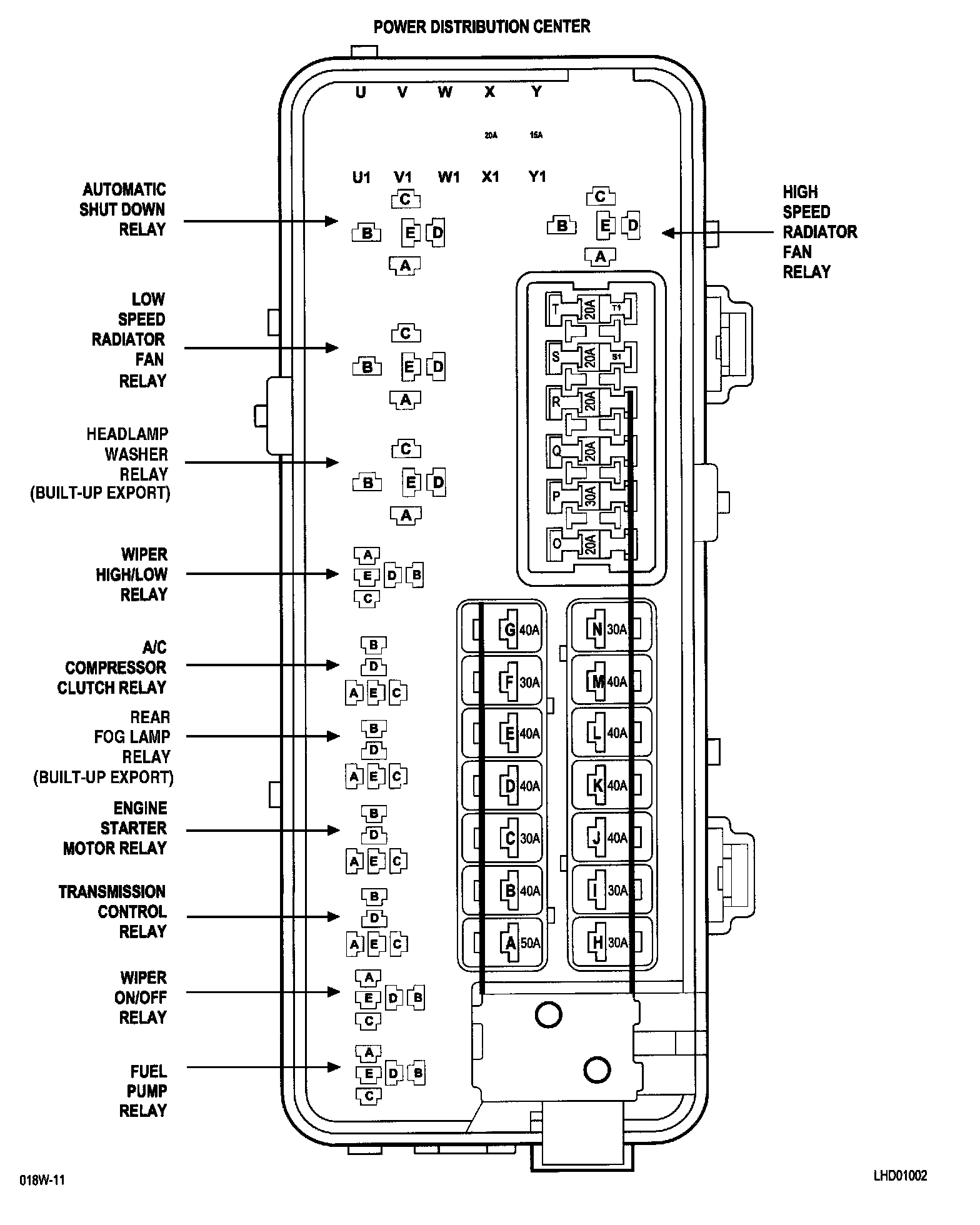

Power Distribution Center:

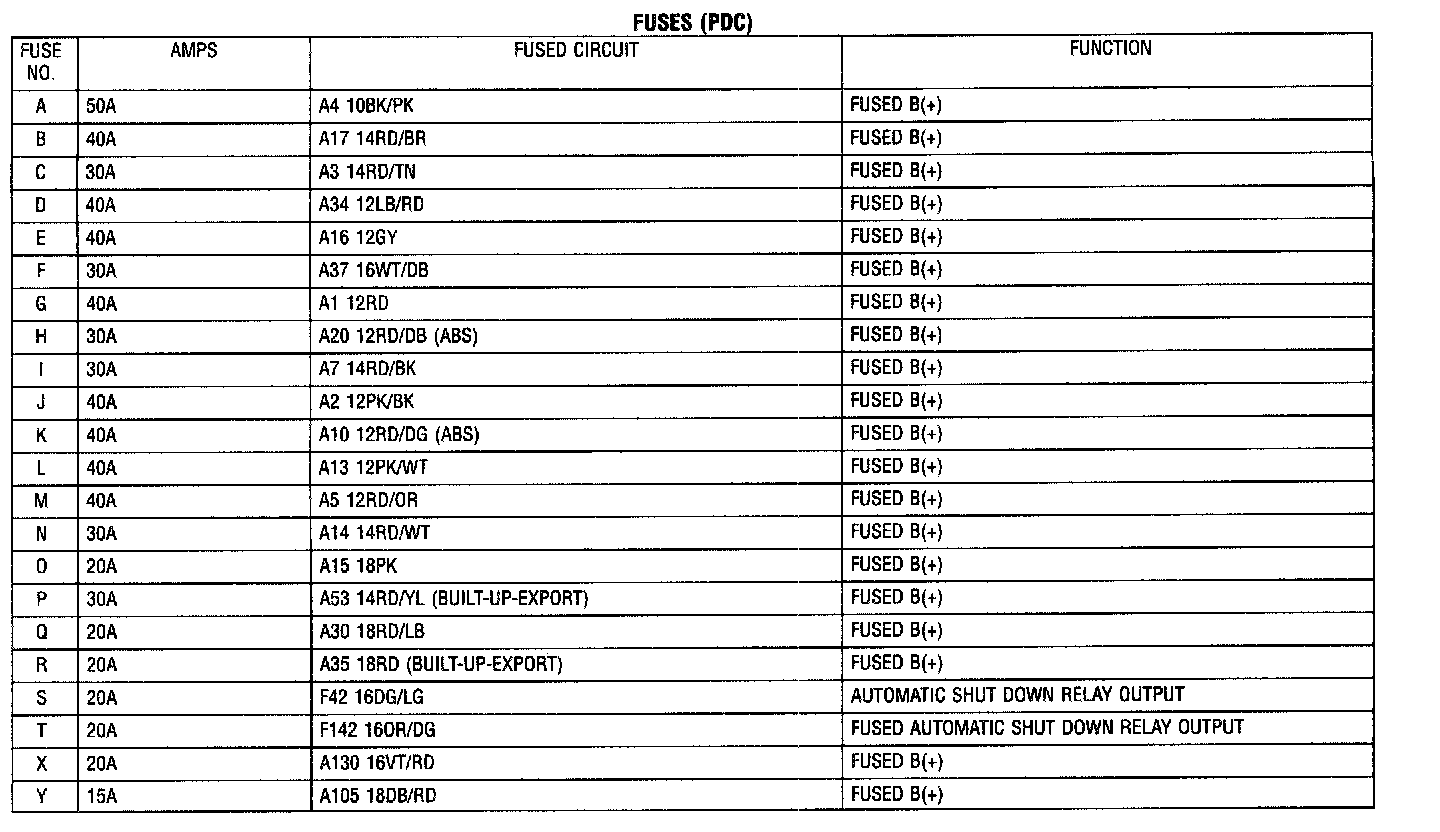

Fuses (PDC):
