Home >> Chrysler >> 2001 >> Intrepid (CANADA) V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

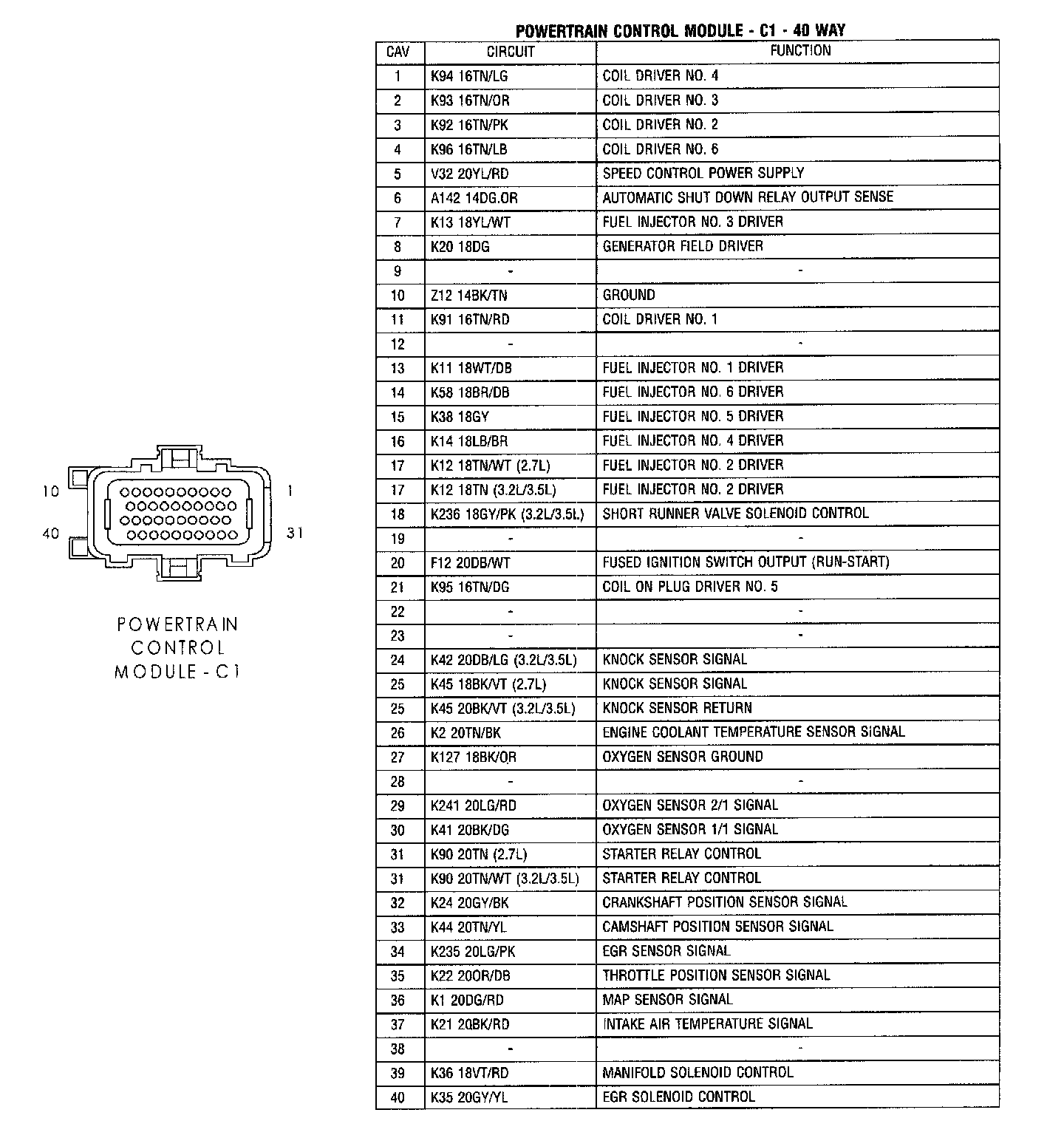

Powertrain Control Module - C1:

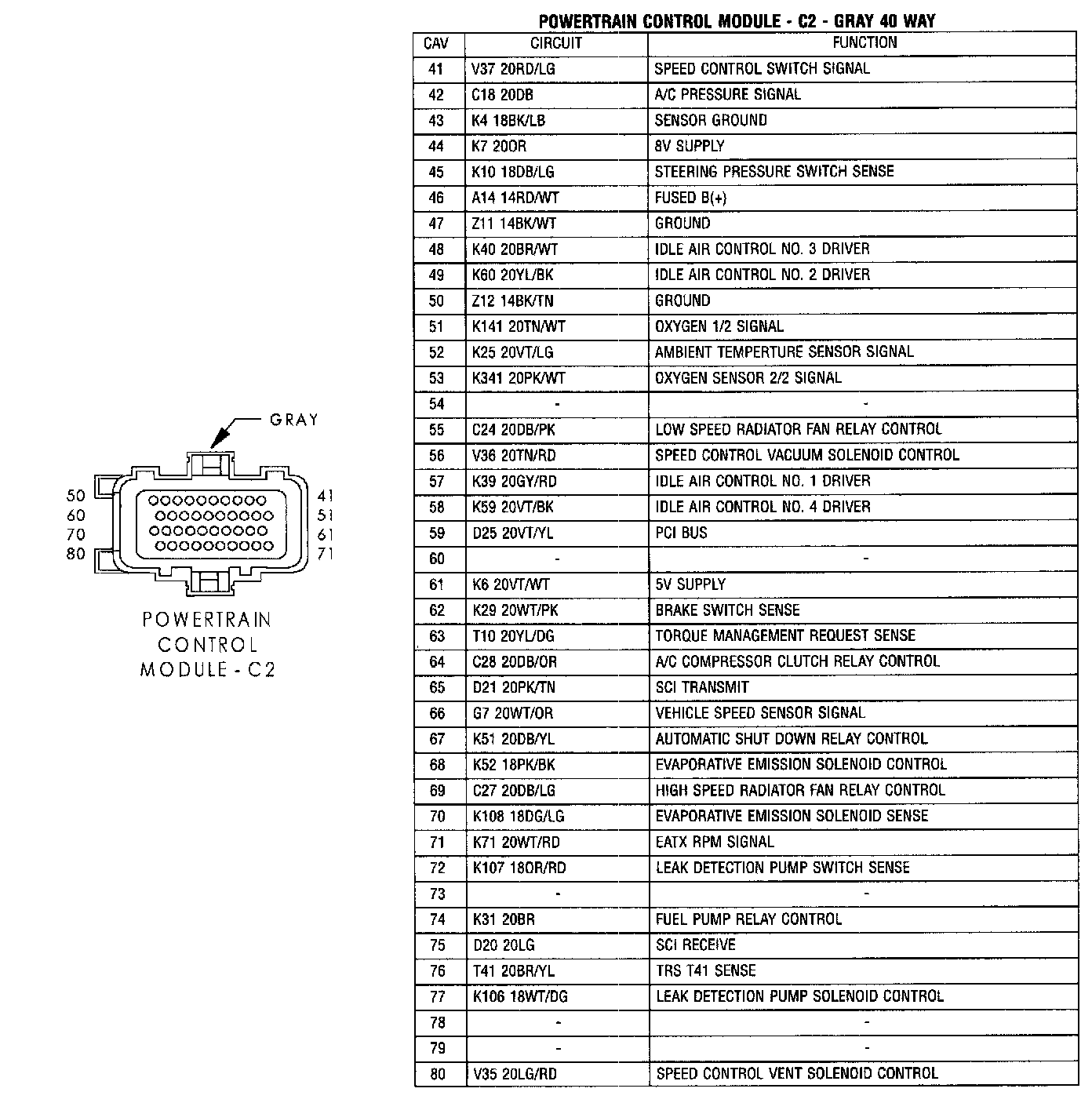

Powertrain Control Module - C2:

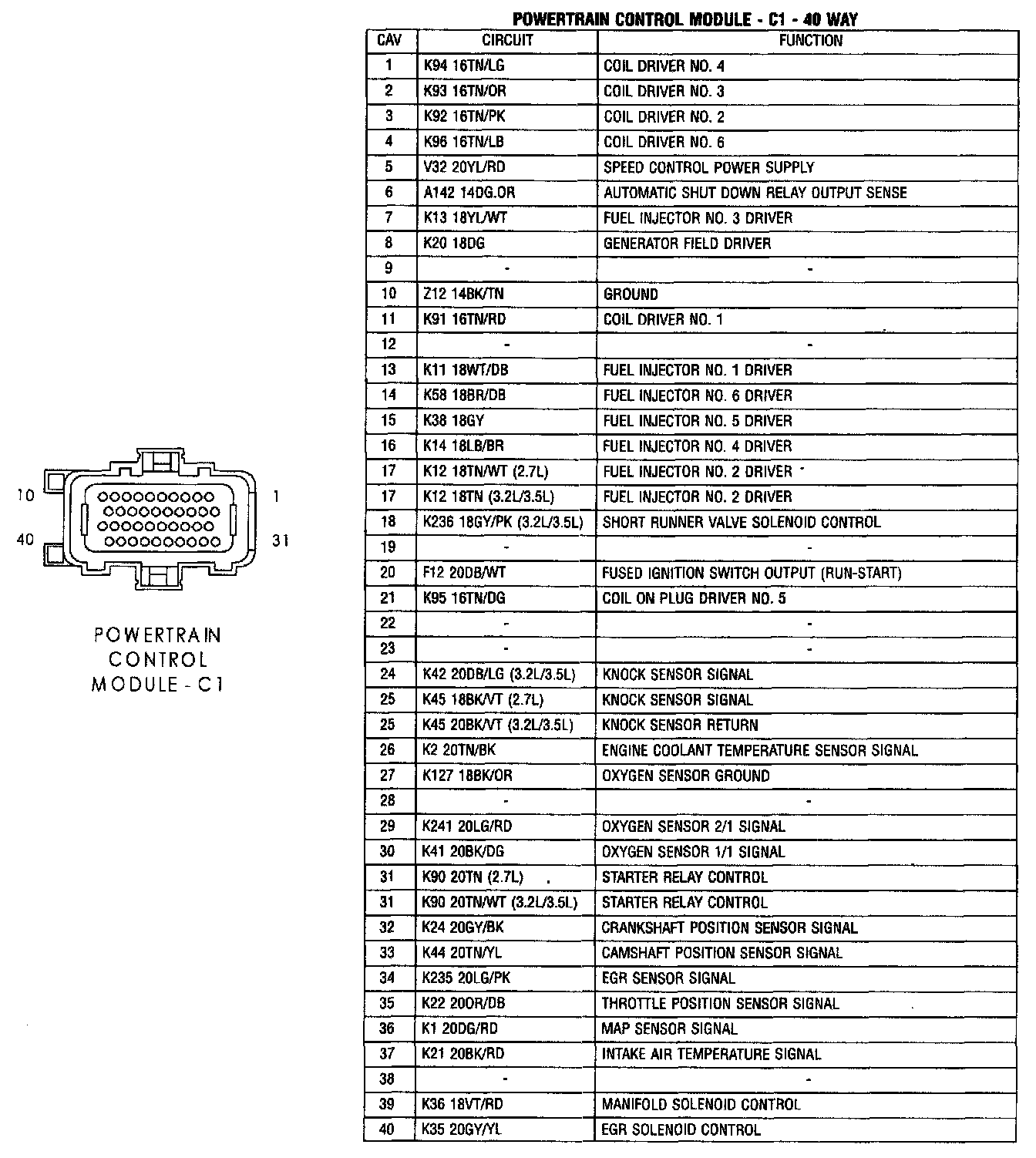

Powertrain Control Module - C1:

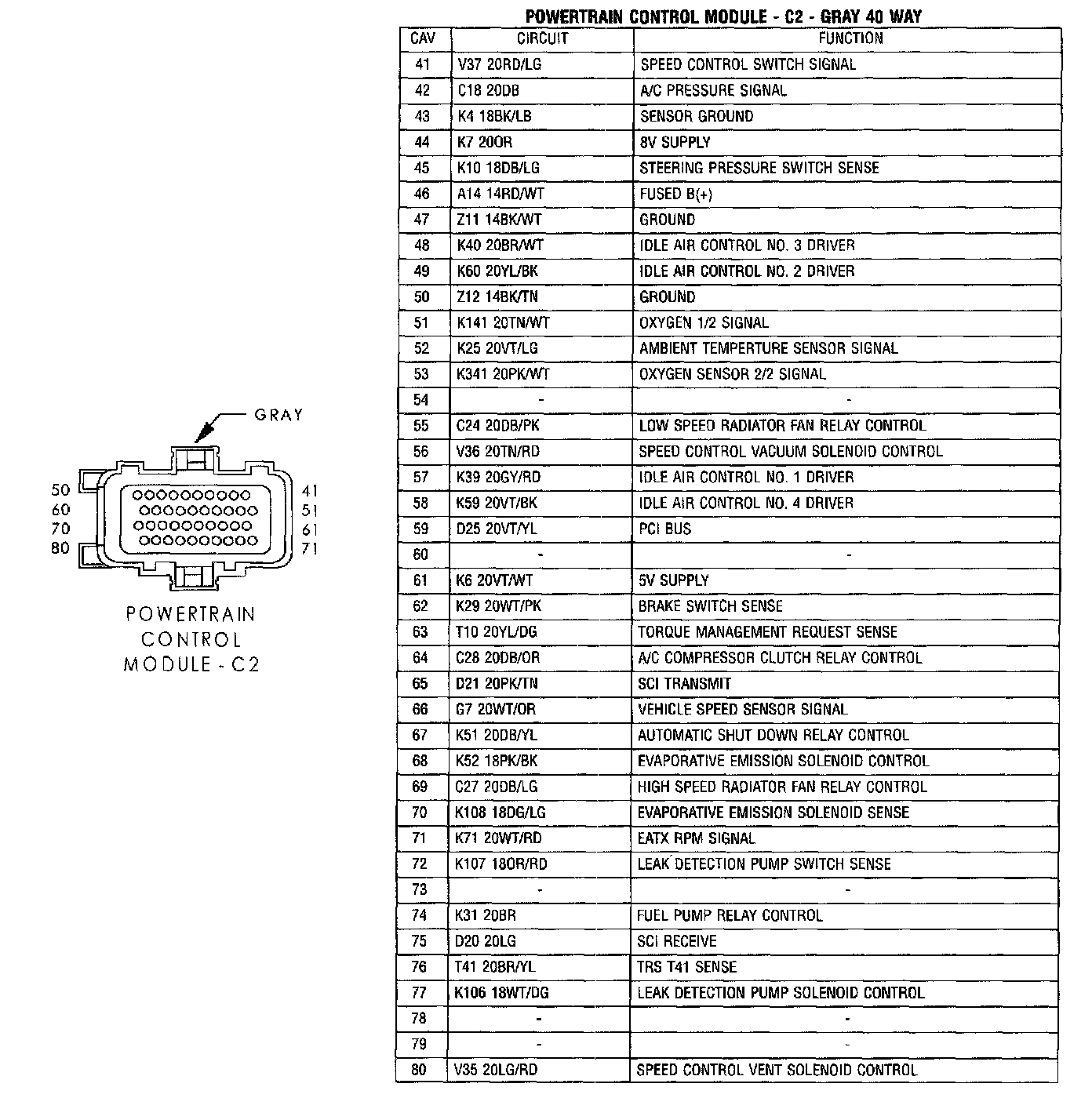

Powertrain Control Module - C2:
