Chrysler
>>
2001
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
Control Assembly, HVAC

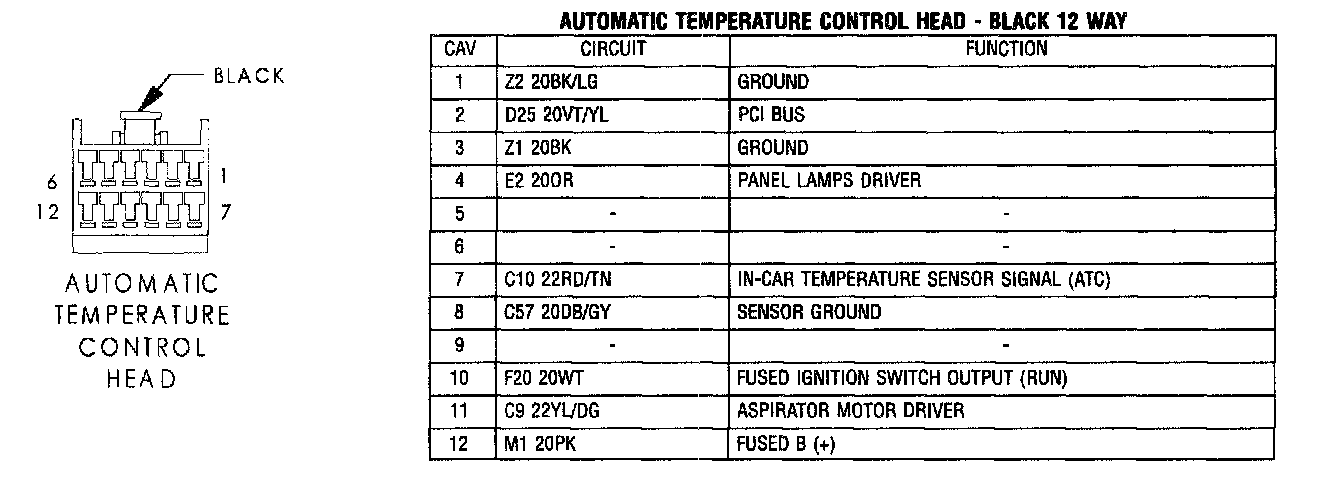

Automatic Temperature Control Head:

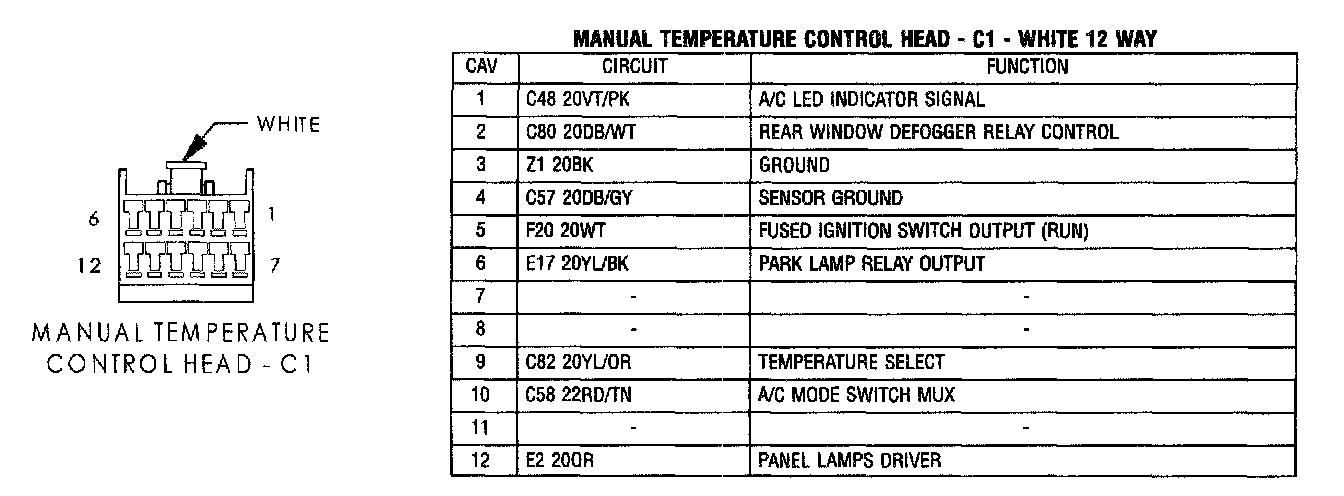

Manual Temperature Control Head - C1:

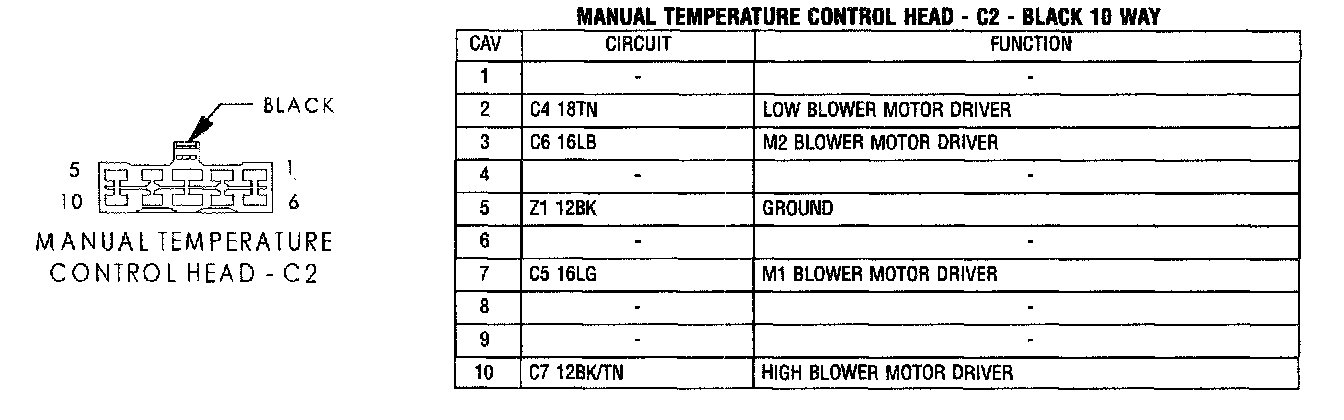

Manual Temperature Control Head - C2:
