Chrysler
>>
2001
>>
Intrepid (CANADA) V6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

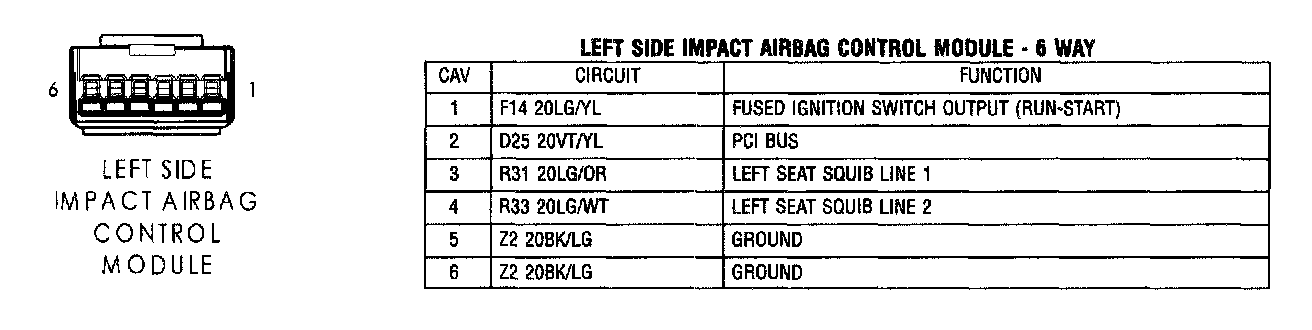

Left Side Impact Airbag Control Module:

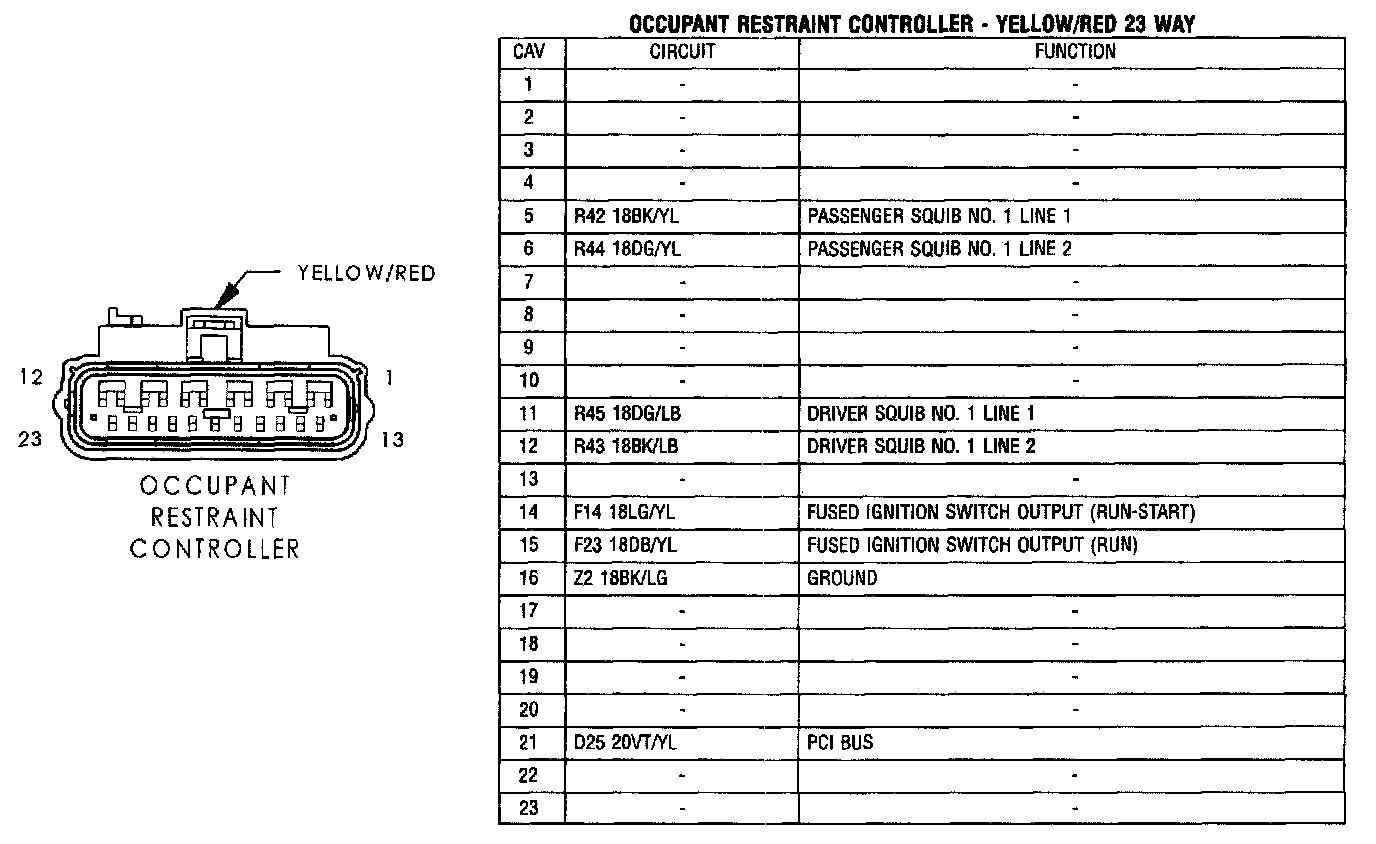

Occupant Restraint Controller:

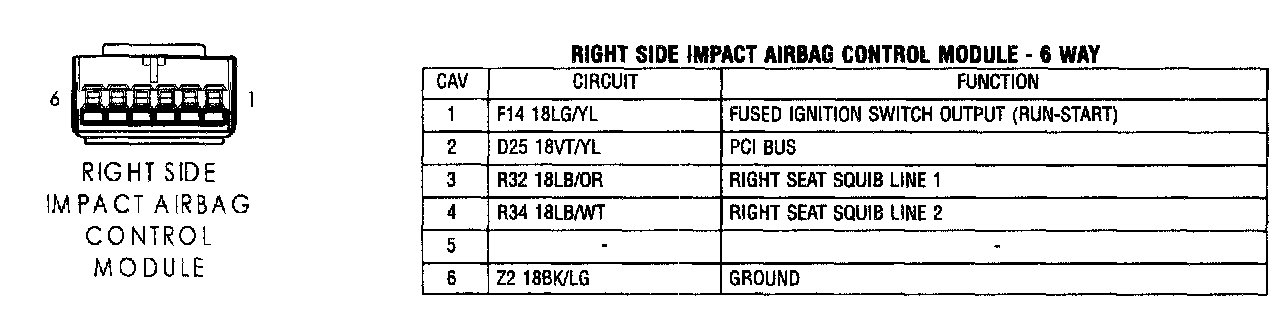

Right Side Impact Airbag Control Module:
