Power Distribution Module: Diagrams

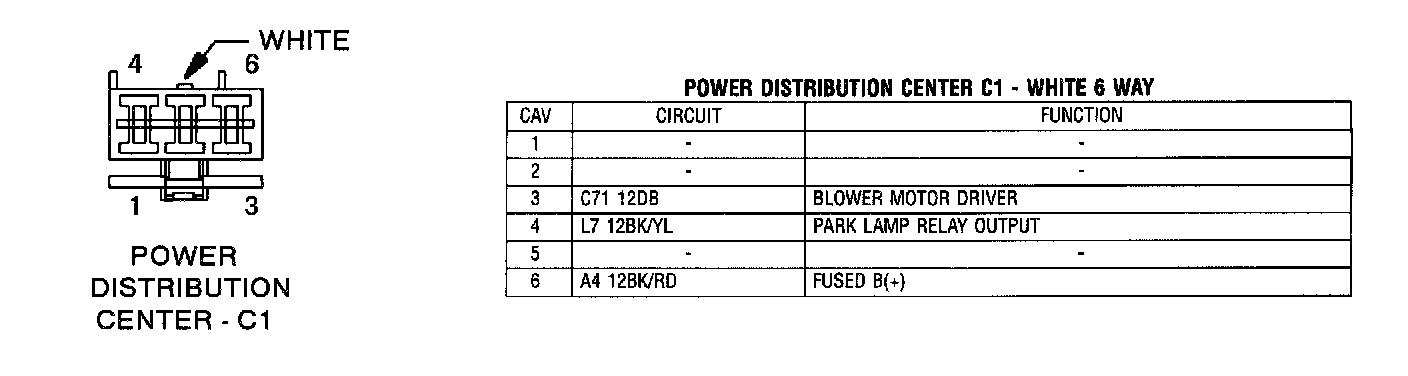

Power Distribution Center - C1:

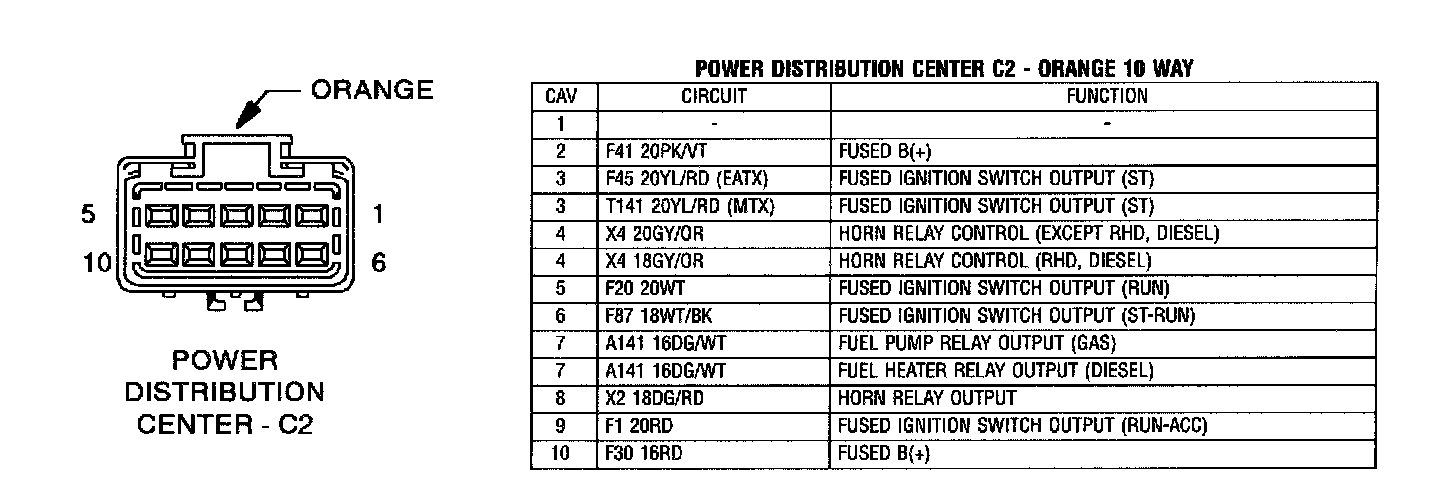

Power Distribution Center - C2:

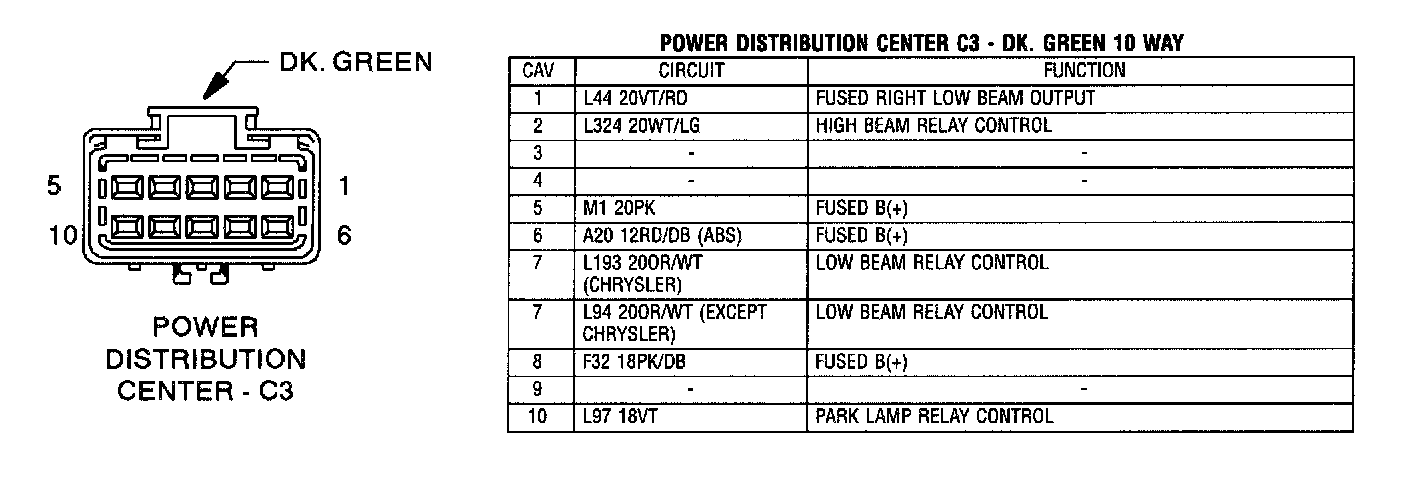

Power Distribution Center - C3:

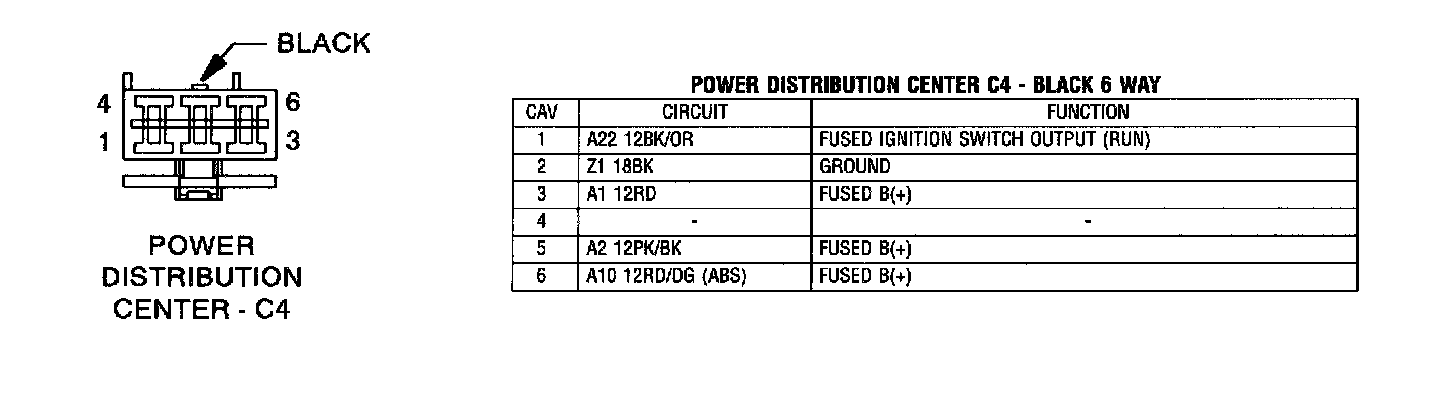

Power Distribution Center - C4:

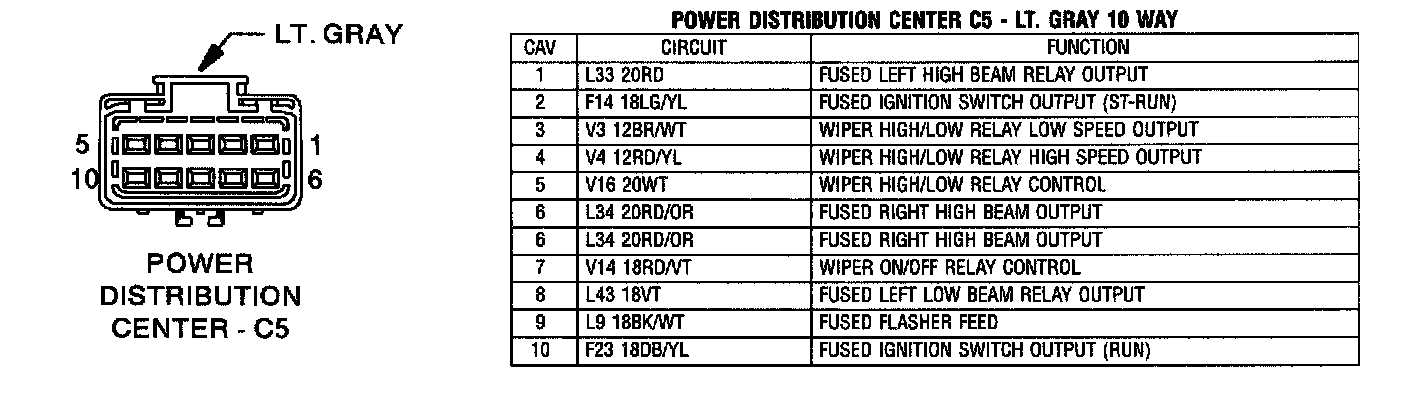

Power Distribution Center - C5:

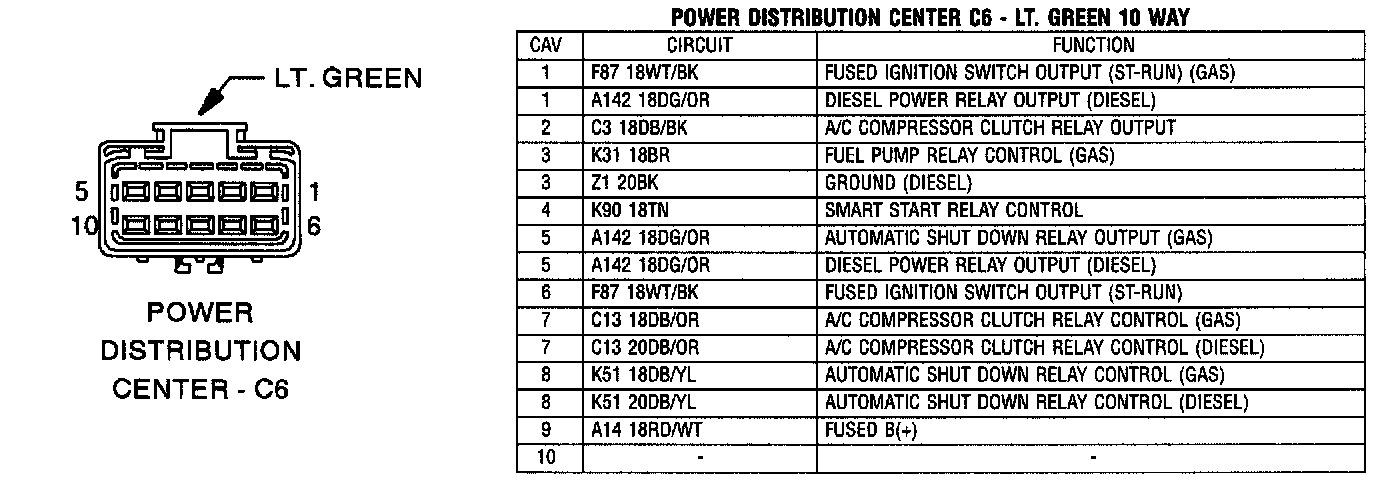

Power Distribution Center - C6:

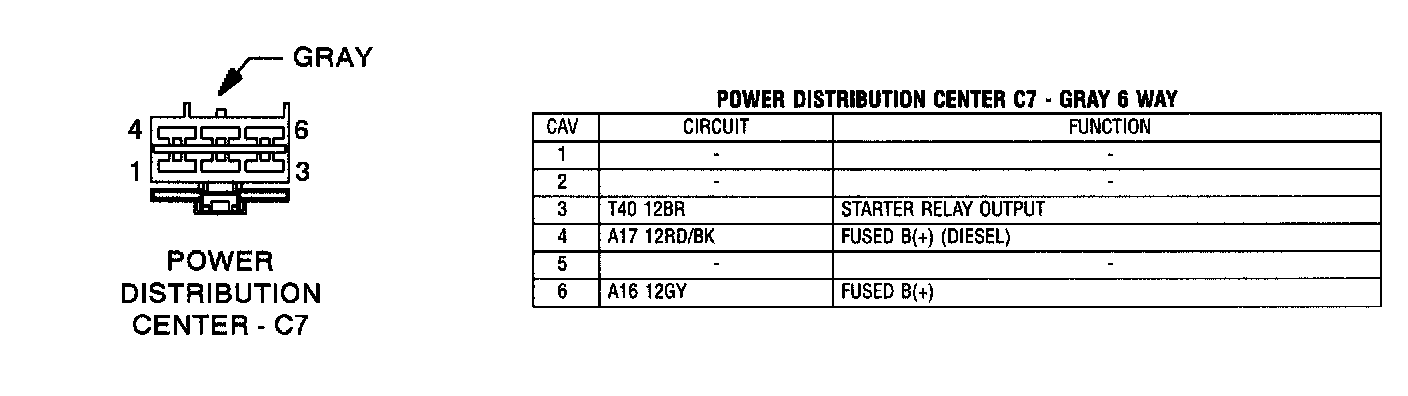

Power Distribution Center - C7:

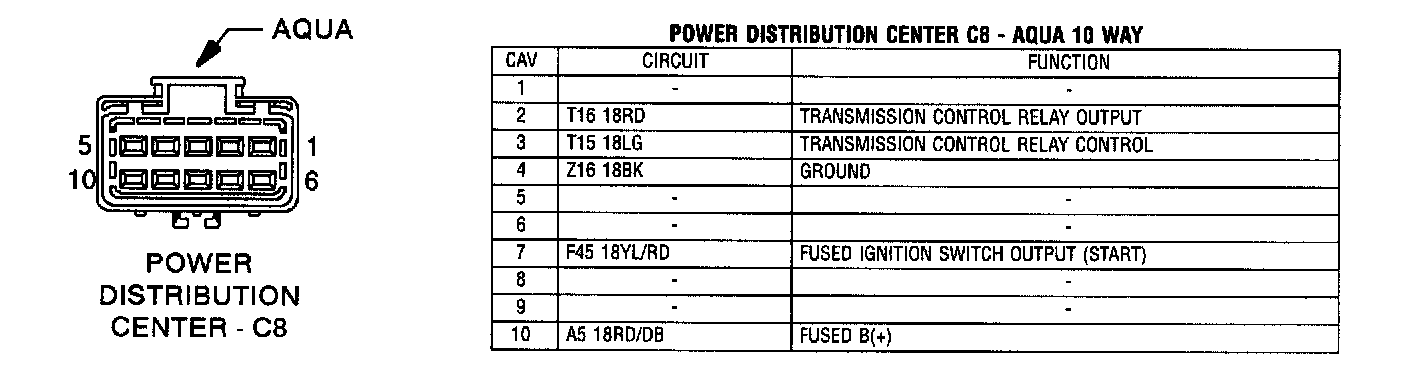

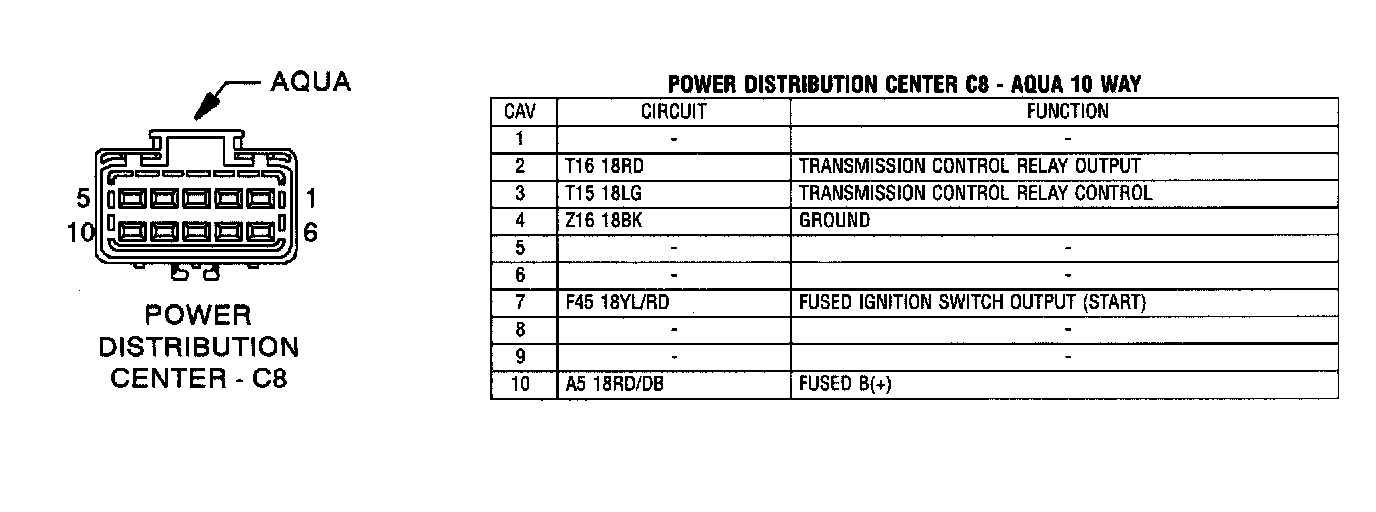

Power Distribution Center - C8:

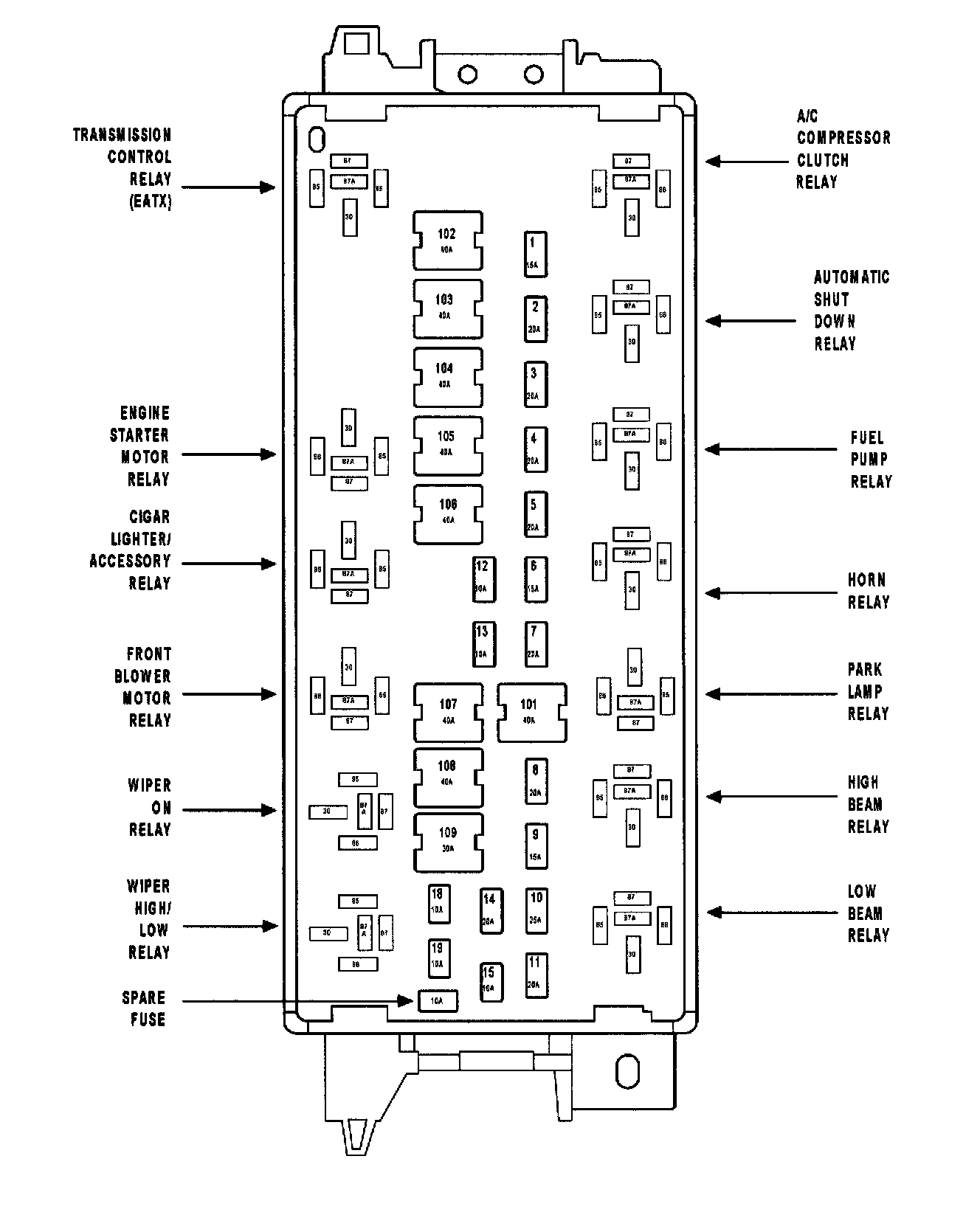

Power Distribution Center:

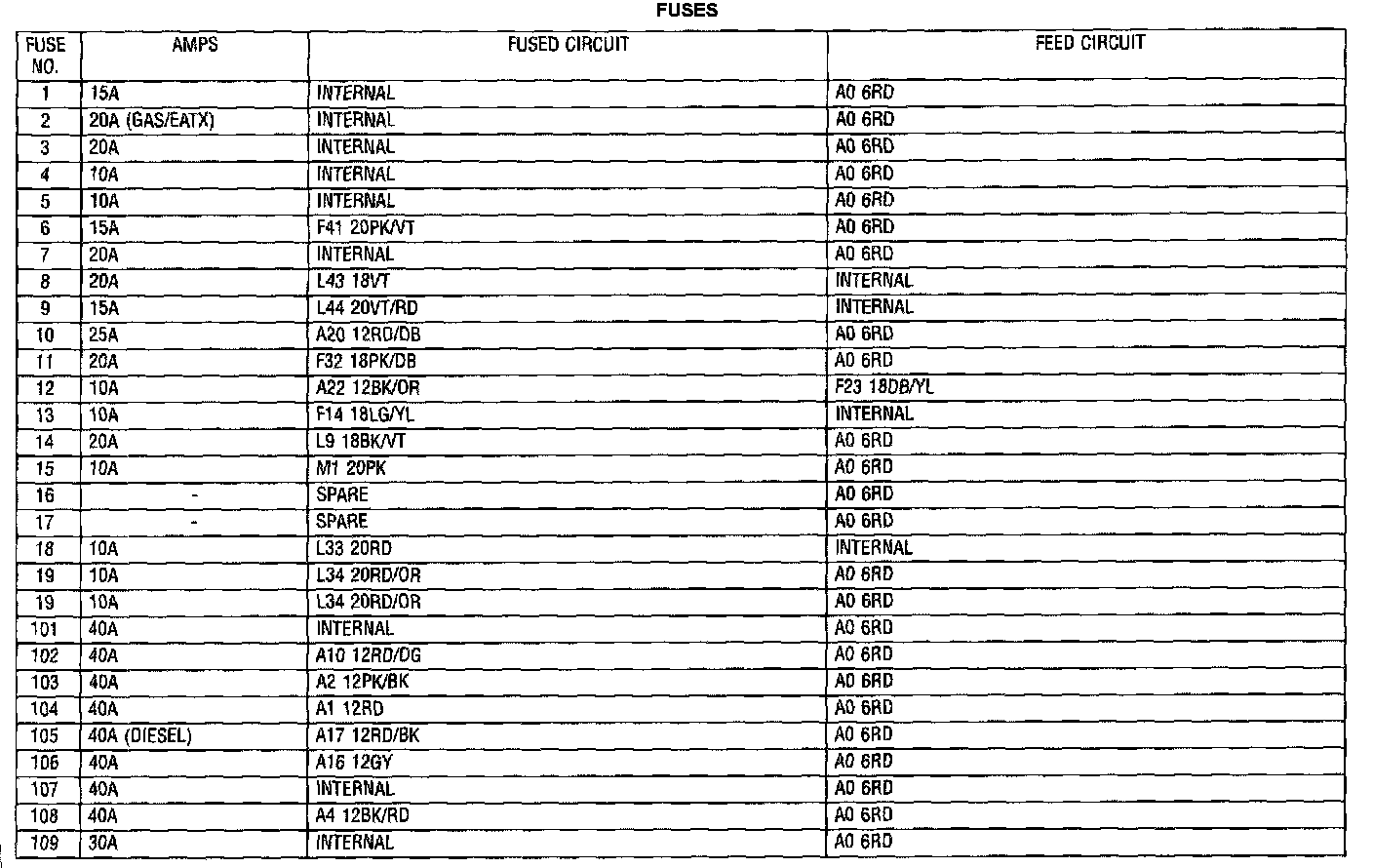

Fuses:

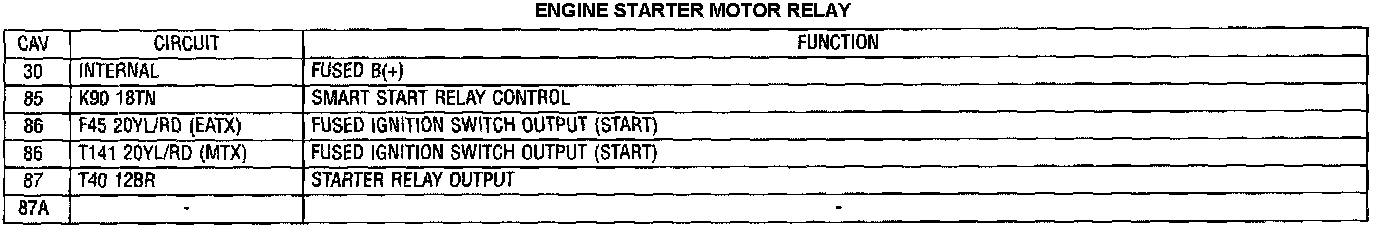

Engine Starter Motor Relay:

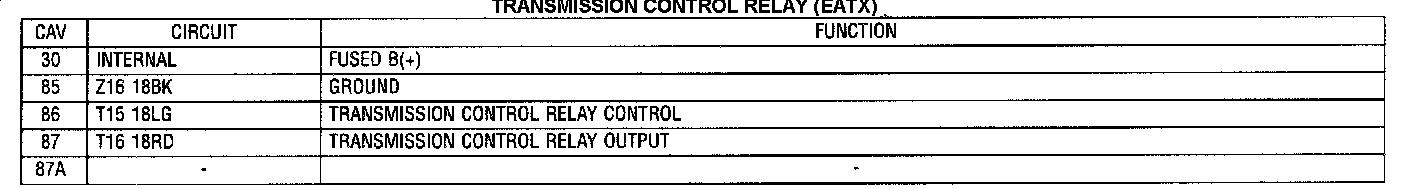

Transmission Control Relay:

Power Distribution Center - C8:
