Engine Control Module
Engine Control Module

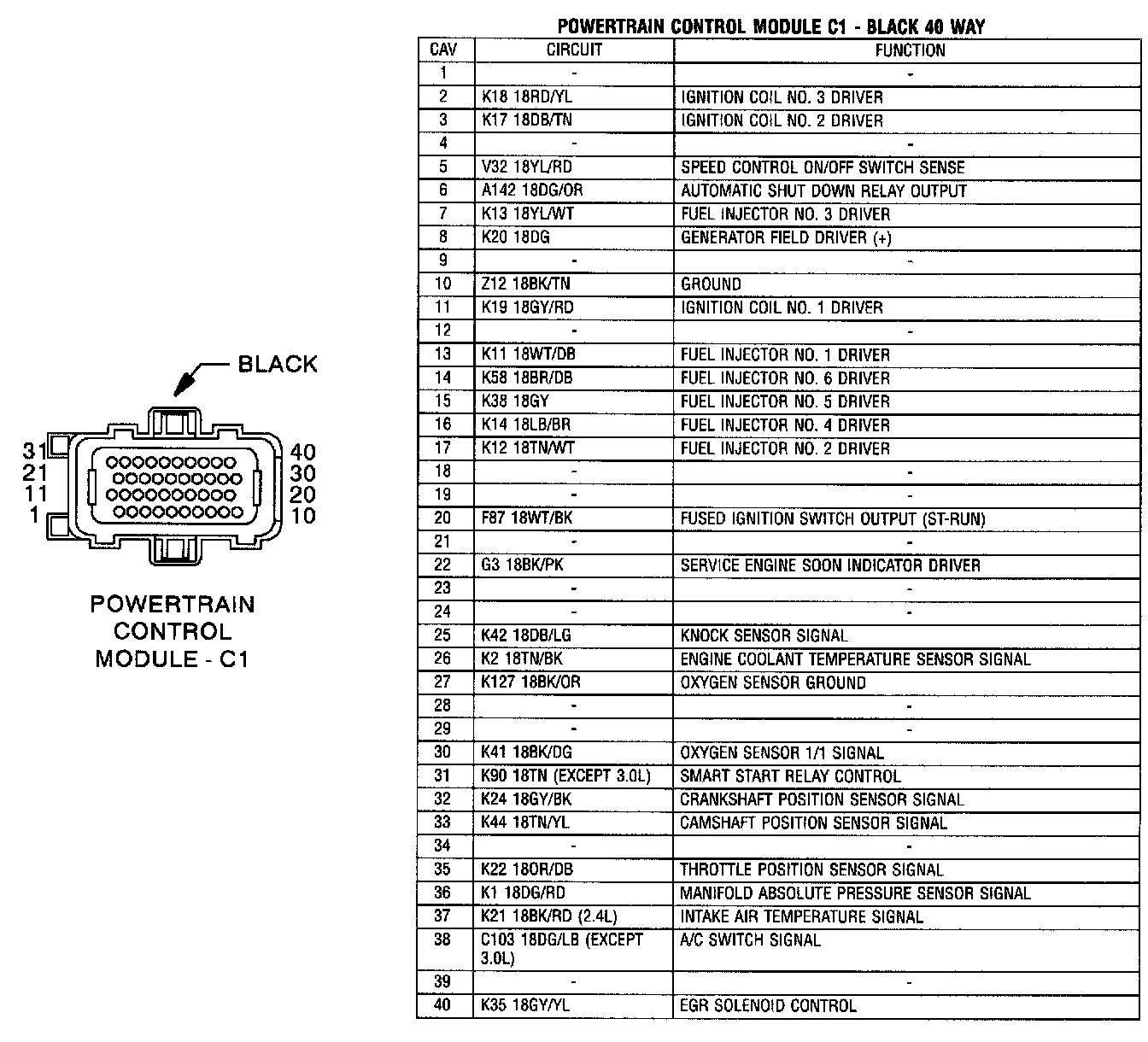

Powertrain Control Module C1:

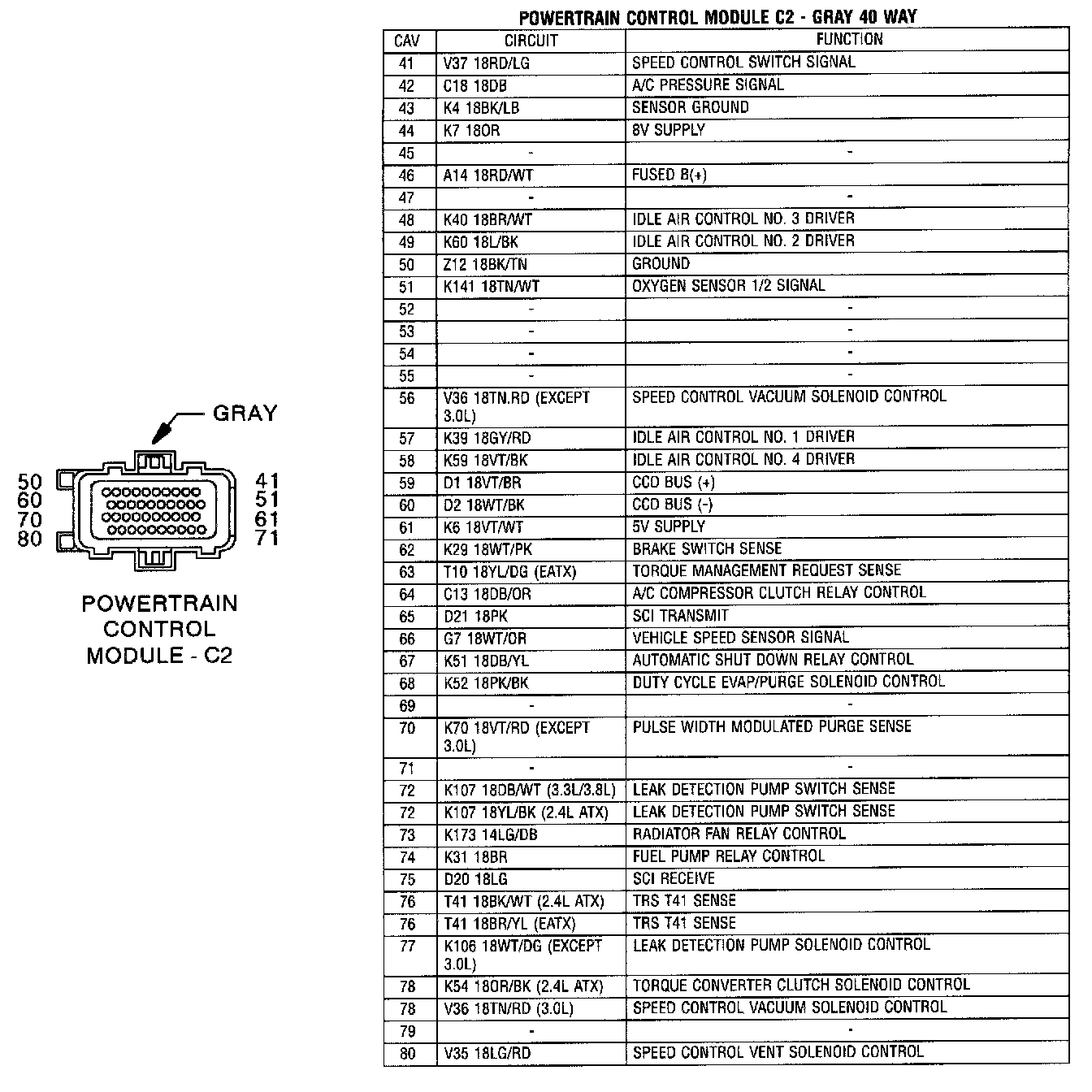

Powertrain Control Module C2:
