Keyless Entry Module: Service and Repair

REMOVAL

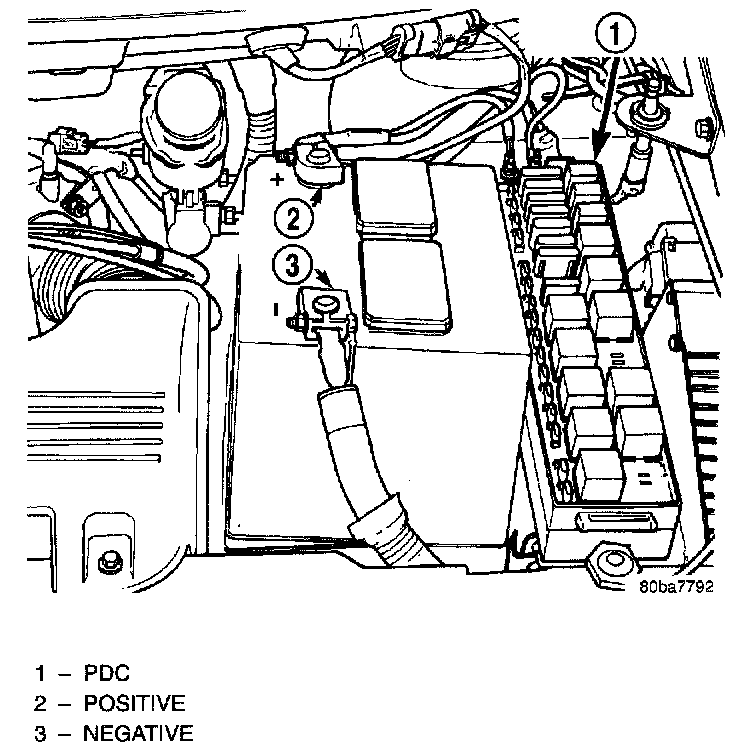

Negative Battery Cable:

1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel top cover.

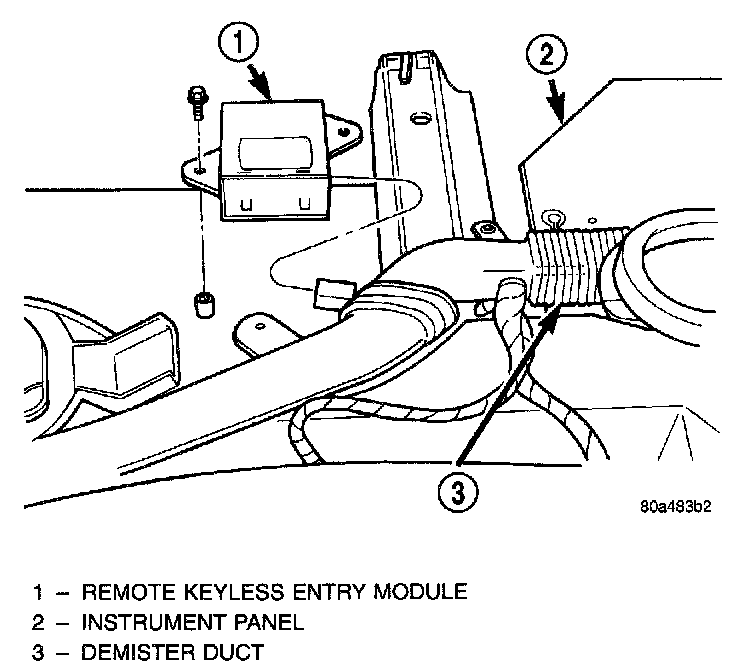

3. Remove screws holding RKE module to instrument panel.

RKE Module:

4. Disconnect wire connector from RKE module.
5. Remove the RKE module from vehicle.

INSTALLATION
For installation, reverse the above procedures.
