Cylinder Head

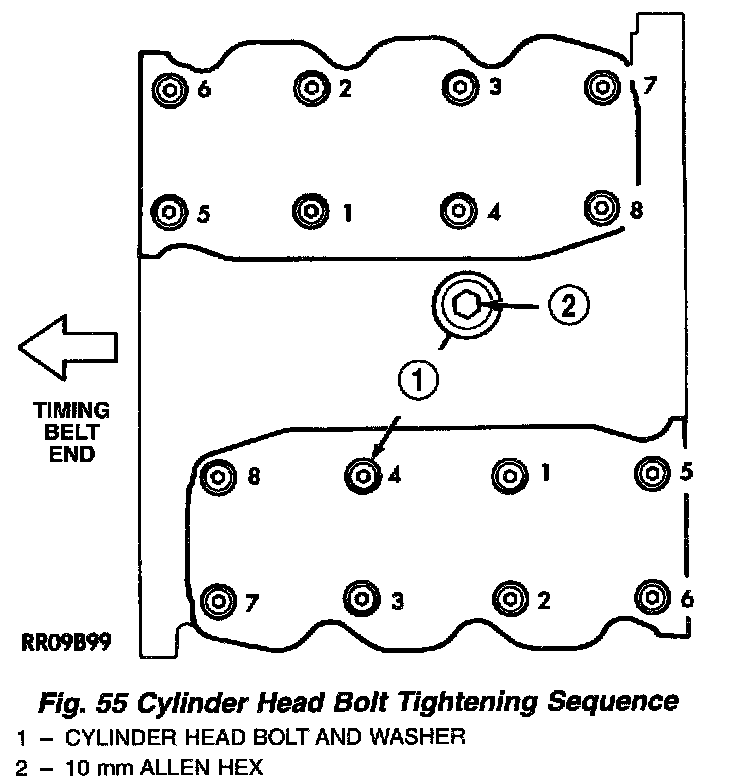

Tighten cylinder head bolts using the following procedure:
- Tighten cylinder head bolts in sequence to 108 Nm (80 ft. lbs.).
- Loosen all bolts fully.
- Retighten cylinder head bolts in sequence to 108 Nm (80 ft. lbs.).
Tighten cylinder head bolts using the following procedure:
- Tighten cylinder head bolts in sequence to 108 Nm (80 ft. lbs.).
- Loosen all bolts fully.
- Retighten cylinder head bolts in sequence to 108 Nm (80 ft. lbs.).
