Home >> Chrysler >> 2000 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Level Sensor >> Diagrams

Fuel Level Sensor: Diagrams

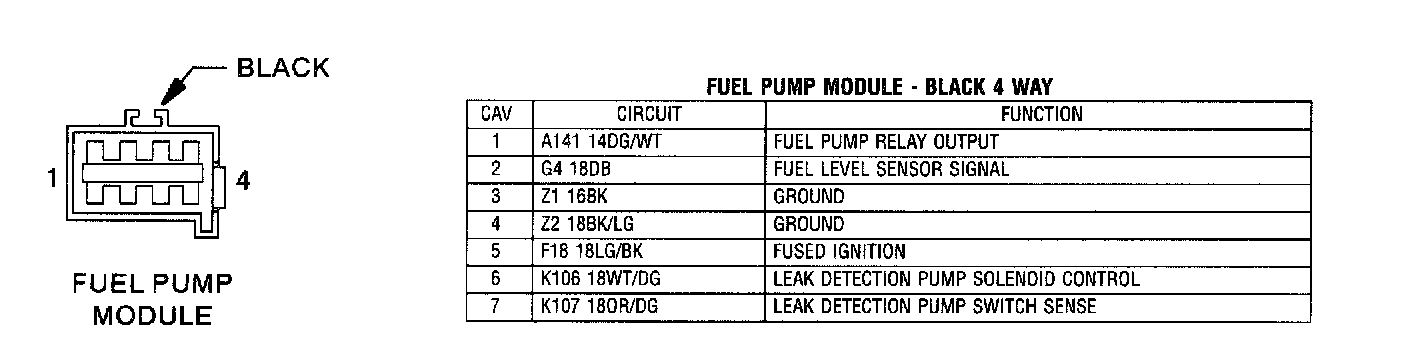

Fuel Pump Module:
